• Donaldson Air Filter, Primary Round - Donaldson P780310
1 1

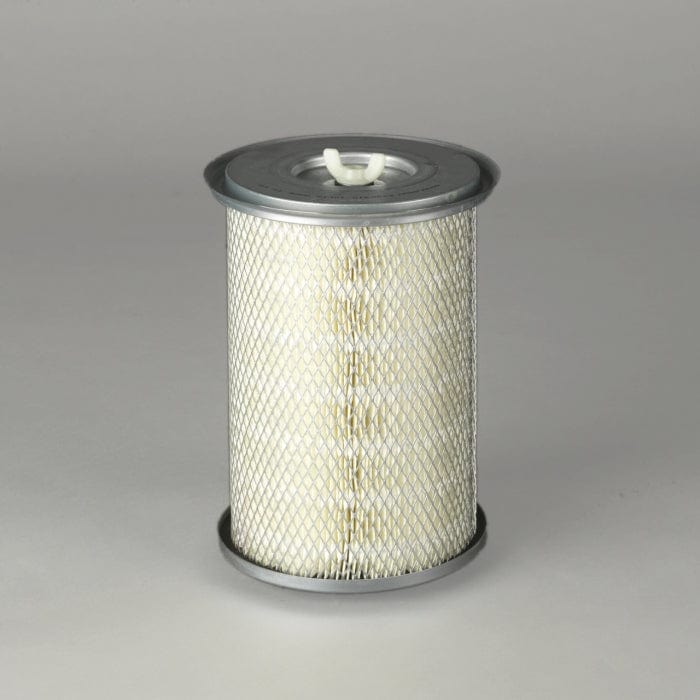

Air Filter, Primary Round - Donaldson P780310

Air Filter, Primary Round - Donaldson P780310

£33.24
£33.24
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P780310

Air Filter, Primary Round
Outer Diameter 7.65 inch (194.3 mm)
Inner Diameter 3.61 inch (91.7 mm)
Length 11.04 inch (280.5 mm)
Overall Length 11.54 inch (293.2 mm)
Bolt Hole Diameter 0.61 inch (15.5 mm)
Efficiency Test Std ISO 5011
Type Primary
Style Round
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 194.3 mm (7.65 inch)
  • Inner Diameter: 91.7 mm (3.61 inch)
  • Length: 280.5 mm (11.04 inch)
  • Overall Length: 293.2 mm (11.54 inch)
  • Bolt Hole Diameter: 15.5 mm (0.61 inch)
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.217 m (8.66 inch)
  • Packaged Width: 0.227 m (9.06 inch)
  • Packaged Height: 0.345 m (13.78 inch)
  • Packaged Weight: 1.700 kg (3.75 lb)
  • Packaged Volume: 0.018 m3 (0.63 ft3)

Other Information

  • Country of Origin: Czech Republic
  • NMFC Code: 069100-04
  • HTS Code: 8421310090
  • UPC Code: 742330108444

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
COOPERS AEM2602
CROSLAND 9790
GPC FC576
GREYFRIARS 1369A
JCB 32903201
LOESING 24079
LOESING 024079
M.D.F. SARL MDA6858
PACCAR Y05990010
VMC AF780310

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
JCB 217 - BACKHOE LOADER - PERKINS 1004-40T -
JCB 217S - BACKHOE LOADER - - 217S -
JCB 4CX - BACKHOE LOADER CX SERIES LEYLAND 4.98TT -
JCB 505-19 - TELEHANDLER - - 505-19 -
JCB 506-36 - TELEHANDLER - PERKINS - -
JCB 506B - TELEHANDLER LOADALL PERKINS 1004.4HR -
JCB 506C - TELEHANDLER - PERKINS - -
JCB 508-40 - TELEHANDLER - PERKINS - -
JCB 550 - TELEHANDLER - PERKINS 1104C-44 -
