• Donaldson Air Filter, Primary Round - Donaldson P778702
1 1

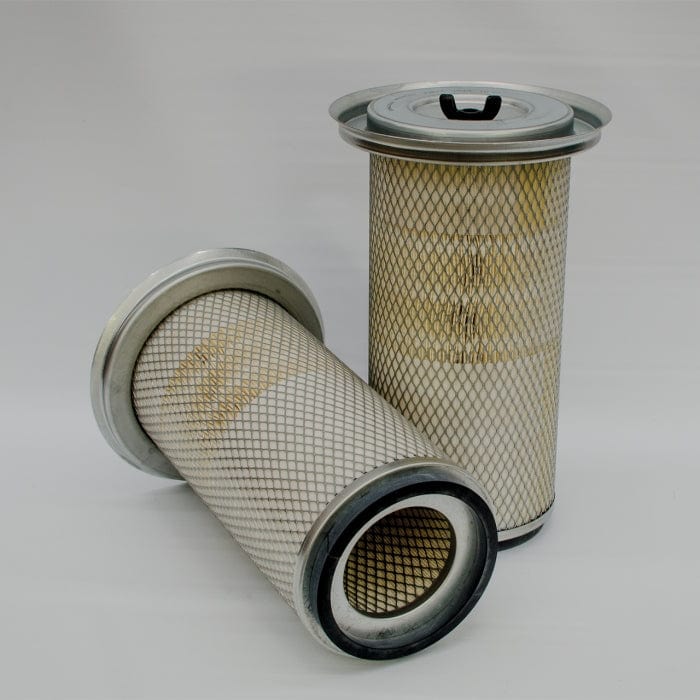

Air Filter, Primary Round - Donaldson P778702

Air Filter, Primary Round - Donaldson P778702

£34.16
£34.16
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P778702

Air Filter, Primary Round
View full details

Specifications

Attributes

  • Outer Diameter: 154.5 mm (6.08 inch)
  • Inner Diameter: 88.5 mm (3.48 inch)
  • Length: 330.5 mm (13.01 inch)
  • Overall Length: 343.2 mm (13.51 inch)
  • Bolt Hole Diameter: 15 mm (0.59 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Primary Application: CASE/CASE IH 1931168
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.223 m (8.90 inch)
  • Packaged Width: 0.223 m (8.90 inch)
  • Packaged Height: 0.408 m (16.30 inch)
  • Packaged Weight: 1.588 kg (3.50 lb)
  • Packaged Volume: 0.021 m3 (0.75 ft3)

Other Information

  • Country of Origin: Czech Republic
  • NMFC Code: 069100-06
  • HTS Code: 8421310090
  • UPC Code: 742330117910

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 1931168
CASE/CASE IH 1930605
DEUTZ 1399790
DEUTZ 001399790
DEUTZ 001021730
DEUTZ 1021730
DEUTZ-FAHR 001021730
DEUTZ-FAHR 001399790
DEUTZ-FAHR 1021730
DEUTZ-FAHR 1399790
FIAT 1930605
GPC FC830
HUERLIMANN TRACTORS 1021730
HUERLIMANN TRACTORS 001021730
KHD 001021730
KHD 001399790
KHD 1021730
KHD 1399790
M.D.F. SARL MDA2902
NEW HOLLAND 1930605
OLSSONS I ELLOS AB F1930605
PACCAR Y05997405
SAME 001021730
SAME 1399790
SAME 001399790
SAME 1021730
VMC AF778702

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CASE/CASE IH JX90U - TRACTOR JX SERIES - JX90U -
CASE/CASE IH JX95 - TRACTOR JX SERIES - JX95 -
HUERLIMANN TRACTORS XT 105 - TRACTOR XT SERIES - XT 105 -
HUERLIMANN TRACTORS XT 95 - TRACTOR - PERKINS 1000.4WT8 -
NEW HOLLAND 100 - TRACTOR - IVECO 8045.25 -
NEW HOLLAND 95 - TRACTOR - IVECO 8045.25 -
