• Donaldson Air Filter, Primary Round - Donaldson P776497
1 1

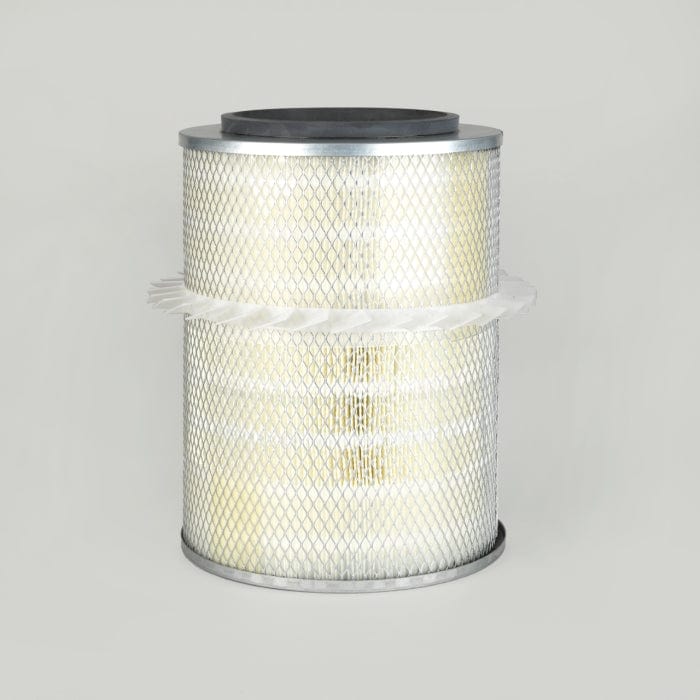

Air Filter, Primary Round - Donaldson P776497

Air Filter, Primary Round - Donaldson P776497

£60.84
£60.84
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P776497

Air Filter, Primary Round
Outer Diameter 9.57 inch (243.2 mm)
Inner Diameter 6.04 inch (153.3 mm)
Length 13.01 inch (330.5 mm)
Overall Length 13.51 inch (343.2 mm)
Bolt Hole Diameter 0.65 inch (16.5 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Type Primary
Style Round
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 243.2 mm (9.57 inch)
  • Inner Diameter: 153.3 mm (6.04 inch)
  • Length: 330.5 mm (13.01 inch)
  • Overall Length: 343.2 mm (13.51 inch)
  • Bolt Hole Diameter: 16.5 mm (0.65 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.308 m (12.30 inch)
  • Packaged Width: 0.310 m (12.40 inch)
  • Packaged Height: 0.355 m (14.20 inch)
  • Packaged Weight: 2.547 kg (5.62 lb)
  • Packaged Volume: 0.035 m3 (1.25 ft3)

Other Information

  • Country of Origin: Czech Republic
  • NMFC Code: 069100-04
  • HTS Code: 8421310090
  • UPC Code: 742330048771

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN MOTORS CORPORATION SFA6497P
AMERICAN MOTORS CORPORATION SFA6497PF
CASE/CASE IH 1930600
CASE/CASE IH 1930660
CASE/CASE IH 1931141
EXMAN SFA6497PF
EXMAN SFA6497P
FIAT 1930600
FIAT 1931141
GPC FC999K
HINDLE IVER 1930600
HITACHI 1930600
HITACHI L01930600
LOESING 20207
LOESING 020207
NEW HOLLAND 1930600
TALBOT FH1930600
VMC AF776497

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
HITACHI DX175 - DOZER TRACKED DX SERIES FIAT 8365T -
HITACHI DX195L - DOZER TRACKED DX SERIES FIAT 8365T -
