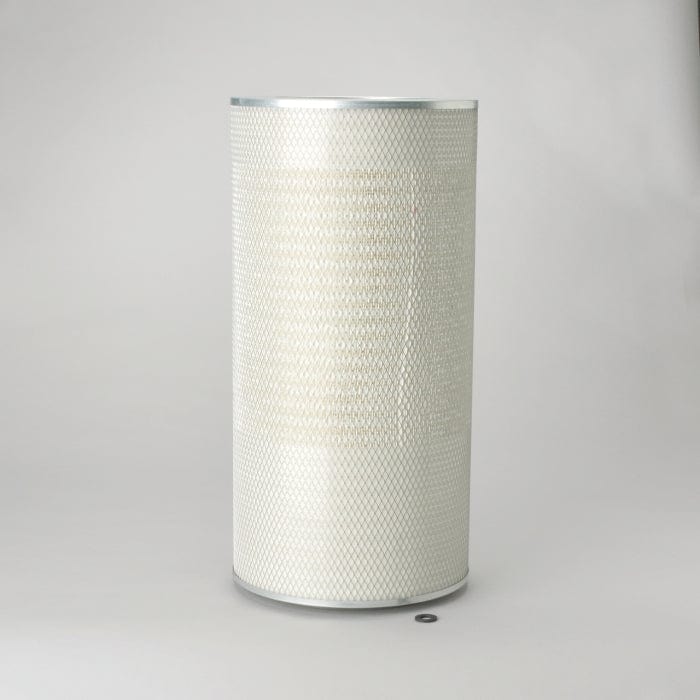

Air Filter, Primary Round - Donaldson P772581

Air Filter, Primary Round - Donaldson P772581

£85.92
£85.92
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P772581

Air Filter, Primary Round
Outer Diameter 12.09 inch (307.2 mm)
Inner Diameter 7.71 inch (195.8 mm)
Length 24.00 inch (609.5 mm)
Overall Length 24.50 inch (622.2 mm)
Bolt Hole Diameter 0.67 inch (17 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Primary Application PERLINI 350087A
Type Primary
Style Round
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 307.2 mm (12.09 inch)
  • Inner Diameter: 195.8 mm (7.71 inch)
  • Length: 609.5 mm (24.00 inch)
  • Overall Length: 622.2 mm (24.50 inch)
  • Bolt Hole Diameter: 17 mm (0.67 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Primary Application: PERLINI 350087A
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.308 m (12.30 inch)
  • Packaged Width: 0.310 m (12.40 inch)
  • Packaged Height: 0.628 m (25.10 inch)
  • Packaged Weight: 4.885 kg (10.77 lb)
  • Packaged Volume: 0.062 m3 (2.22 ft3)

Other Information

  • Country of Origin: United Kingdom
  • NMFC Code: 069100-06
  • HTS Code: 8421310090
  • UPC Code: 742330048238

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
FIAAM FLI6826
FIAT 111340
FODEN Y05816908
GPC FC533
GUASCOR 7650276
GUASCOR 7650137
HAVAM HD9926
HIMOINSA 3047007
KALMAR 9231100531
LOESING 20051
LOESING 020051
PERLINI 350087A
SANDVIK 86903749
SAUER DANFOSS INC 11022209
SIEMENS 1934916
VMC AF772581
WALGAHN-MOTORENTECHN 00811613
WALGAHN-MOTORENTECHN 811613
ZANOTTI 2016

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
GUASCOR FGLD240 - ENGINE - GUASCOR FGLD240 -
