• Donaldson Air Filter, Primary Round - Donaldson P772564
1 1

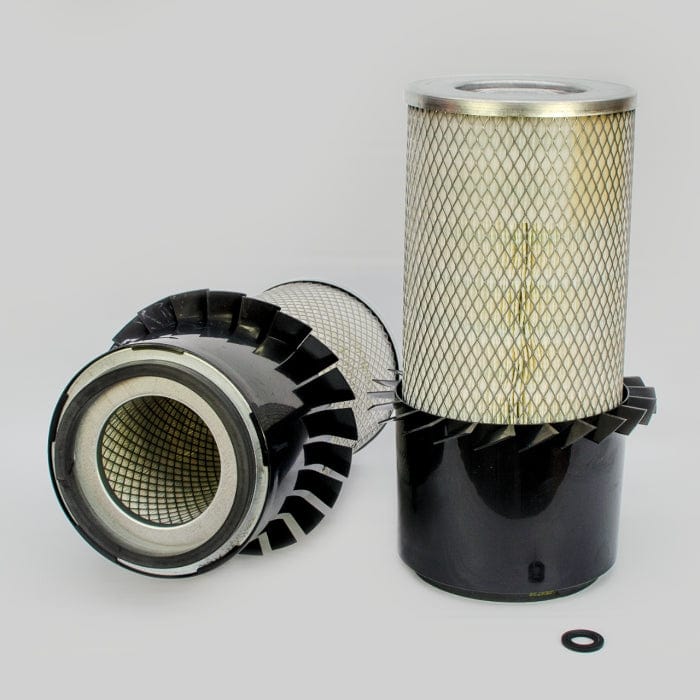

Air Filter, Primary Round - Donaldson P772564

Air Filter, Primary Round - Donaldson P772564

£42.62
£42.62
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P772564

Air Filter, Primary Round
Outer Diameter 6.10 inch (155 mm)
Inner Diameter 3.48 inch (88.5 mm)
Length 12.91 inch (328 mm)
Overall Length 13.43 inch (341 mm)
Bolt Hole Diameter 0.75 inch (19 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Type Primary
Style Round
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 155 mm (6.10 inch)
  • Inner Diameter: 88.5 mm (3.48 inch)
  • Length: 328 mm (12.91 inch)
  • Overall Length: 341 mm (13.43 inch)
  • Bolt Hole Diameter: 19 mm (0.75 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.203 m (8.10 inch)
  • Packaged Width: 0.203 m (8.10 inch)
  • Packaged Height: 0.365 m (14.60 inch)
  • Packaged Weight: 1.313 kg (2.90 lb)
  • Packaged Volume: 0.015 m3 (0.55 ft3)

Other Information

  • Country of Origin: Czech Republic
  • NMFC Code: 069100-04
  • HTS Code: 8421310090
  • UPC Code: 742330048160

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO A568C
AC DELCO A1045C
AGCO 01909116
AGCO 312990561
AGCO 4319257
ALLIS-CHALMERS 1909116
ALLIS-CHALMERS 4319257
AMERICAN PARTS 94466
AMERICAN PARTS 94537
AVELING-BARFORD 9007613
BIG A 94466
BIG A 93548
CASE/CASE IH 71930138
CASE/CASE IH 71909116
CASE/CASE IH 3124011R1
CASE/CASE IH 3124011R2
CASE/CASE IH 3115560R91
CASE/CASE IH 1909116
CATERPILLAR 3I0206
CHARDONNET 7212778400
CLEAN MA582
COOPERS CD2015
COOPERS CD2010
COOPERS CD2018
COOPERS DU2354
CROSLAND 9516K
DEUTZ 04319257EY102643
DEUTZ 4319257
DEUTZ 4319257EY102643
DEUTZ 01909116
DRESSER 3115560R91
DRESSER 3124011R2
DRESSER 3124011R1
FIAAM FLI6546
FIAT 1909116
FIAT 79933225
FIAT 4319257
FIAT 71909116
FIAT 86529587
FIAT 9933225
FIAT 5102236
FIATALLIS 1909116
FISPA FAC801
FODEN Y05770005
FURUKAWA 3124011R2
FURUKAWA 3124011R1
FURUKAWA 3115560R91
GPC FC318K
GUARDIAN G112989
GUARDIAN G124164
GUD ADG709
HAVAM HD7745
HITACHI 79933225
INTERNATIONAL 3124011R2
INTERNATIONAL 3124011R1
INTERNATIONAL 3115560R91
IVECO 1909116
KHD 4319257EY102643
KHD 04319257EY102643
KRALINATOR LA890
KRALINATOR LA890F
KRALINATOR LA1258F
KRALINATOR LA533F
LOCKHEED LK3532
LOCKHEED AP3532
LOCKHEED AP3532A
LOCKHEED AP924K
LOESING 021971
LOESING 21971
MARSHALL FOWLER 9007613
MISFAT 12787802
NELSON 70611S
NEW HOLLAND 19099116
NEW HOLLAND 1909116
PURFLUX A878
SAME 242492901
SAME 4319257
SAME 04319257
TECHNOCAR A529
TECNO COMP TM106
VAPORMATIC CPD7074
VAPORMATIC VPD7074
VIRGIS CH12288
VIRGIS CH12888
VIRGIS CH0812228
WALGAHN-MOTORENTECHN 00811606
WALGAHN-MOTORENTECHN 811606
WHITE 10A29893
WHITE 303003469
WHITE 312990561
WHITE 10P4071
WHITE 169563AS

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
BRAY PS5000C - CONSTRUCTION EQUIPMENT - FORD 2723E -
DEUTZ-FAHR AGROXTRA DX4.30 - TRACTOR DX SERIES DEUTZ F4L913 -
DEUTZ-FAHR AGROXTRA DX6.10 - TRACTOR - DEUTZ F6L912 -
HUERLIMANN TRACTORS H 490 - TRACTOR - - H 490 -
HUERLIMANN TRACTORS H 5105 - TRACTOR H 5000 SERIES - H 5105 -
NEW HOLLAND 100-90 - TRACTOR - IVECO 8065.06 -
NEW HOLLAND 8085 - TRACTOR - IVECO 8055.04 -
NEW HOLLAND 905C - TRACTOR - - 905C -
NEW HOLLAND 955C - TRACTOR - IVECO 8055.04 -
NEW HOLLAND 980 - TRACTOR - IVECO 8065.02 -
NEW HOLLAND LX865 - SKID STEER LOADER LX SERIES NEW HOLLAND 332T -
NEW HOLLAND LX885 - SKID STEER LOADER LX SERIES NEW HOLLAND 332T -
