• Donaldson Air Filter, Primary Round - Donaldson P772523
1 1

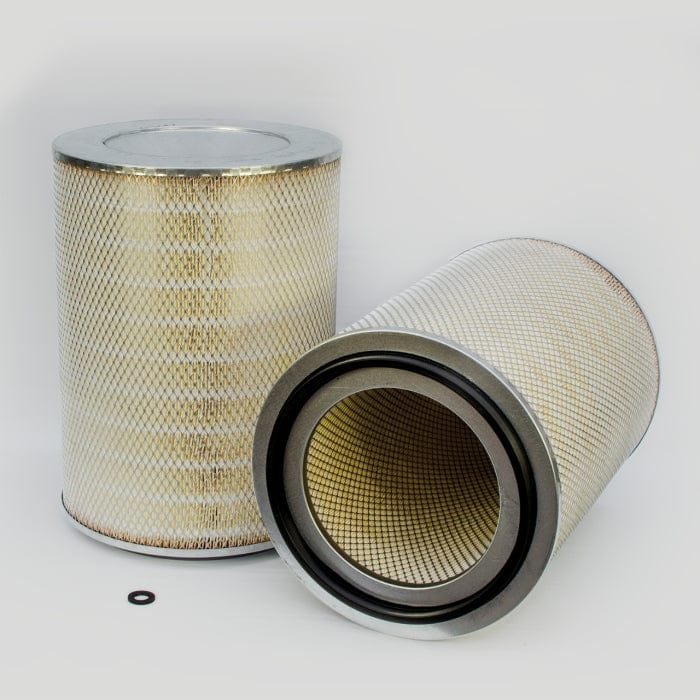

Air Filter, Primary Round - Donaldson P772523

Air Filter, Primary Round - Donaldson P772523

£62.26
£62.26
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P772523

Air Filter, Primary Round
Outer Diameter 12.09 inch (307.2 mm)
Inner Diameter 7.72 inch (196.2 mm)
Length 16.20 inch (411.5 mm)
Overall Length 16.70 inch (424.2 mm)
Bolt Hole Diameter 0.66 inch (16.76 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Type Primary
Style Round
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 307.2 mm (12.09 inch)
  • Inner Diameter: 196.2 mm (7.72 inch)
  • Length: 411.5 mm (16.20 inch)
  • Overall Length: 424.2 mm (16.70 inch)
  • Bolt Hole Diameter: 16.76 mm (0.66 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.315 m (12.60 inch)
  • Packaged Width: 0.315 m (12.60 inch)
  • Packaged Height: 0.433 m (17.32 inch)
  • Packaged Weight: 3.971 kg (8.76 lb)
  • Packaged Volume: 0.045 m3 (1.59 ft3)

Other Information

  • Country of Origin: Czech Republic
  • HTS Code: 8421310090
  • UPC Code: 742330048016

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARGO 291930788A
ATLAS 3216708101
ATLAS COPCO 3216708101
BERGERAT MONNOYEUR E1144
BIG A 94698
CAB'S INDUSTRIES 9PU017
CAB'S INDUSTRIES 2CAR006
CASE/CASE IH 321549350
CASE/CASE IH 1849136
CASE/CASE IH 1930788
CASE/CASE IH M2750512
CATERPILLAR 3I1421
CATERPILLAR 3I1419
DEMAG M1849136
DITCH WITCH TST004500703
DITCH WITCH 5001785
DRESSER 1201733H1
DRILTECH 88042159
ECL 232881
ENMTP CPG 7615043
FAUN 7304561
FAUN 99707304561
FIAT 1849136
FIAT 321549350
FODEN Y05769711
FORD 9576P772523
FREIGHTLINER DNP772523
FURUKAWA 1201733H1
GT PIECES ET SERVICES 2242129
HAVAM HD9889
HAVAM HD9236
HINO 17801H46A1
HITACHI 7304561
IVECO 503135344
JOHN DEERE AZ39761
KNECHT LX765
KOMATSU 1201733H1
KOMATSU M1849136
KRAMER 807559
KRAMER 0000807559
LEYLAND-DAF (LDV) BCU4608
LIEBHERR 592160914
LIEBHERR 7615043
LOESING 020083
LOESING 20083
LOESING 21944
M.D.F. SARL MDA0668
MASSEY FERGUSON LA1930788
MI-JACK P2750512
MULTI PART BCU4608
NEW HOLLAND 026P772523
NEW HOLLAND 321549350
NEW HOLLAND 1930788
ORENSTEIN & KOPPEL 1499156
ORENSTEIN & KOPPEL 8483479
RENAULT VI 5000819344
RENAULT VI 5000953712
ROVER BCU4608
SANDVIK SC88042159
SULLAIR 68560449
SULLAIR 560449
TAMROCK 88042159
TEREX M2750512
TESMEC V004505025
UNIPART BCU4608
VMC AF772523
VOLVO 20002291022
VOLVO 3132088
WALGAHN-MOTORENTECHN 811590
WALGAHN-MOTORENTECHN 00811535
WALGAHN-MOTORENTECHN 811535
WALGAHN-MOTORENTECHN 00811590

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
FENDT 5255L / 5255LMCS / 5255LPL - COMBINE - AGCO 74AWI -
FENDT 5275C - COMBINE 5000 SERIES AGCO 74AWI -
FENDT 5275CPL - COMBINE 5000 SERIES AGCO 74AWI -
FENDT 6275 L / 6275 L MCS - COMBINE - AGCO 74AWI -
JOHN DEERE 6650 - HARVESTER - JOHN DEERE 6081 -
LIEBHERR L551 - LOADER WHEELED L SERIES LIEBHERR D906TI -
MASSEY FERGUSON MF7244 - COMBINE MF 7200 SERIES IVECO NEF -
MASSEY FERGUSON MF7245 ACTIVA - COMBINE MF 7200 SERIES IVECO NEF -
MASSEY FERGUSON MF7246 ACTIVA - COMBINE MF 7200 SERIES IVECO NEF -
MASSEY FERGUSON MF7260 - COMBINE MF 7200 SERIES SISU 74CTA-4V -
MASSEY FERGUSON MF7260 - COMBINE MF 7200 SERIES SISU 74ETA -
MASSEY FERGUSON MF7270 - COMBINE MF 7200 SERIES SISU 84CTA -
MASSEY FERGUSON MF7270 - COMBINE MF 7200 SERIES SISU 84ETA -
