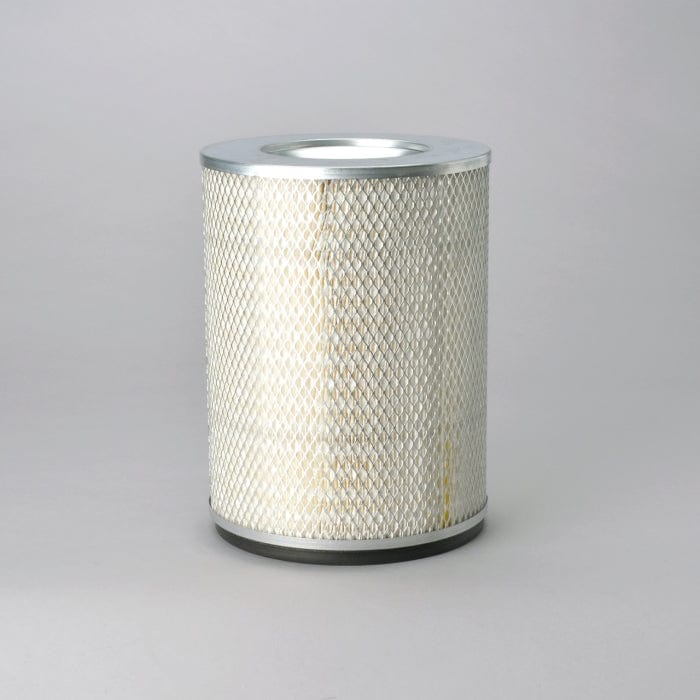

Air Filter, Primary Round - Donaldson P522451
Air Filter, Primary Round - Donaldson P522451
Regular price
£72.26
Regular price
Sale price
£72.26
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P522451
Air Filter, Primary Round| Outer Diameter | 9.73 inch (247.1 mm) |
| Inner Diameter | 5.66 inch (143.8 mm) |
| Length | 12.56 inch (319 mm) |
| Overall Length | 13.06 inch (331.7 mm) |
| Bolt Hole Diameter | 0.66 inch (16.76 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 247.1 mm (9.73 inch)
- Inner Diameter: 143.8 mm (5.66 inch)
- Length: 319 mm (12.56 inch)
Packaged Dimensions
- Packaged Length: 0.258 m (10.30 inch)
- Packaged Width: 0.255 m (10.20 inch)
- Packaged Height: 0.413 m (16.50 inch)
- Packaged Weight: 2.454 kg (5.41 lb)
- Packaged Volume: 0.028 m3 (1.00 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421310090
- UPC Code: 742330033227
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALCOA MARINE | KA1593 | |
| AMERICAN MOTORS CORPORATION | KA1593 | |
| ASAHI | KA1593 | |
| BIG A | 94432 | |
| CATERPILLAR | 3I0972 | |
| CATERPILLAR | 9Y6854 | |
| CATERPILLAR | 3I1435 | |
| COOPERS | AEM2068 | |
| COOPERS | FEM2068 | |
| GREYFRIARS | 1307A | |
| KOBELCO | KL3098070080 | |
| KOBELCO | 9K1953 | |
| KOMATSU | 6001812450 | |
| KOMATSU | 6001812500 | |
| KOMATSU | 6114807100 | |
| KOMATSU | 6114807101P | |
| KOMATSU | E6001812500 | |
| KRALINATOR | LA1280 | |
| LOESING | 22015 | |
| LOESING | 022015 | |
| NELSON | 70869N | |
| ORENSTEIN & KOPPEL | 1455283 | |
| P.B.R. | AI3369 | |
| PRO MATCH | 9Y6855 | |
| PRO MATCH | 9Y6854 | |
| VIRGIS | CH12604 | |
| VMC | AF522451 | |
| WALGAHN-MOTORENTECHN | 00811235 | |
| WALGAHN-MOTORENTECHN | 811235 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| KOMATSU D5016 | - | DOZER TRACKED | - | KOMATSU 4D130 | - |
| KOMATSU D5017 | - | DOZER TRACKED | - | KOMATSU 6D125-1 | - |
| KOMATSU D5018 | - | DOZER TRACKED | - | KOMATSU 6D125-1 | - |
| KOMATSU D50A | - | DOZER TRACKED | - | - D50A | - |
| KOMATSU D50A | - | DOZER TRACKED | - | KOMATSU 4D130-1 | - |
| KOMATSU D50A-16 | - | DOZER TRACKED | - | KOMATSU 4D130-1 | - |
| KOMATSU D50A-16 | - | DOZER TRACKED | - | KOMATSU 4D130 | - |
| KOMATSU D50A-17 | - | DOZER TRACKED | - | KOMATSU 6D125-1A-EA | - |
| KOMATSU D50F-17 | - | DOZER TRACKED | - | KOMATSU 6D125 | - |
| KOMATSU D50P-16 | - | DOZER TRACKED | - | KOMATSU 4D130-1 | - |
| KOMATSU D50P-16 | - | DOZER TRACKED | - | KOMATSU 4D130 | - |
| KOMATSU D50P-17 | - | DOZER TRACKED | - | KOMATSU 6D125 | - |
| KOMATSU D50PL-16 | - | DOZER TRACKED | - | KOMATSU 4D130 | - |
| KOMATSU D50PL-17 | - | DOZER TRACKED | - | - D50PL-17 | - |
| KOMATSU D50S-16 | - | DOZER TRACKED | - | KOMATSU 4D130 | - |
| KOMATSU D50S-16 | - | DOZER TRACKED | - | KOMATSU 4D130-1 | - |
| KOMATSU D53A | - | DOZER TRACKED | - | KOMATSU 4D130 | - |
| KOMATSU D53A | - | DOZER TRACKED | - | KOMATSU 4D130-1 | - |
| KOMATSU D53A-16 | - | DOZER TRACKED | - | KOMATSU 4D130-1E | - |
| KOMATSU D53A-17 | - | DOZER TRACKED | - | KOMATSU 6D125E-2D-5 | - |
| KOMATSU D53A-17 | - | DOZER TRACKED | - | KOMATSU 6D125-1C-EA | - |
| KOMATSU D53P-16 | - | DOZER TRACKED | - | KOMATSU SL4D130-1C | - |
| KOMATSU D53P-16 | - | DOZER TRACKED | - | KOMATSU 4D130-1E | - |
| KOMATSU D53P-17 | - | DOZER TRACKED | - | KOMATSU 6D125E-2D-5 | - |
| KOMATSU D53P-17 | - | DOZER TRACKED | - | KOMATSU 6D125-1D-EA | - |
| KOMATSU D53S-16 | - | DOZER TRACKED | - | KOMATSU 4D130-1F | - |
| KOMATSU D53S-17 | - | DOZER TRACKED | - | KOMATSU 4D130-1H | - |
| KOMATSU D58E-1 | - | DOZER TRACKED | - | KOMATSU 6D125-1DD-EW | - |
| KOMATSU D58E-1 | - | DOZER TRACKED | - | KOMATSU 6D125E-2G-5 | - |
| KOMATSU D58P-1 | - | DOZER TRACKED | - | KOMATSU 6D125-1EE-EW | - |
| KOMATSU D58P-1 | - | DOZER TRACKED | - | KOMATSU 6D125E-2H-5 | - |
| KOMATSU D58P-1B | - | DOZER TRACKED | - | KOMATSU 6D125E-2H-5 | - |
| KOMATSU D58P-1B | - | DOZER TRACKED | - | KOMATSU 6D125-1EE-EW | - |
| KOMATSU D60-12 | - | DOZER TRACKED | - | KOMATSU 6D125-1 | - |
| KOMATSU D60P-11 | - | DOZER TRACKED | - | KOMATSU 6D125-1XX | - |
| KOMATSU D63E-1 | - | DOZER TRACKED | - | KOMATSU 6D125-1 | - |
| KOMATSU D65E-12 | - | DOZER TRACKED | - | KOMATSU 6D125E-2A-45 | - |
| KOMATSU D65P-12 | - | DOZER TRACKED | - | KOMATSU 6D125-1 | - |
| KOMATSU D65PX-12 | - | DOZER TRACKED | - | - D65PX-12 | - |
| KOMATSU GD310RC-3A | - | GRADER | - | KOMATSU 4D130-1 | - |
| KOMATSU GD31RC-3A | - | GRADER | - | KOMATSU 4D130-1 | - |
| KOMATSU GD613A-1 | - | GRADER | - | KOMATSU 6D125-1 | - |
| KOMATSU GD623A-1 | - | GRADER | - | KOMATSU 6D125-1Z-EW | - |
| KOMATSU GD663A-1 | - | GRADER | - | KOMATSU 6D125-1 | - |
| KOMATSU PC200 | - | EXCAVATOR TRACKED | - | KOMATSU S6D105-1 | - |
| KOMATSU PC200 | - | EXCAVATOR | - | KOMATSU S6D95L-1 | - |
| KOMATSU PC200-1 | - | EXCAVATOR TRACKED | - | KOMATSU 6D105-1 | - |
| KOMATSU PC200-1 | - | EXCAVATOR TRACKED | - | KOMATSU S6D105 | - |
| KOMATSU PC20HT-1 | - | EXCAVATOR TRACKED | - | KOMATSU 4D130 | - |
