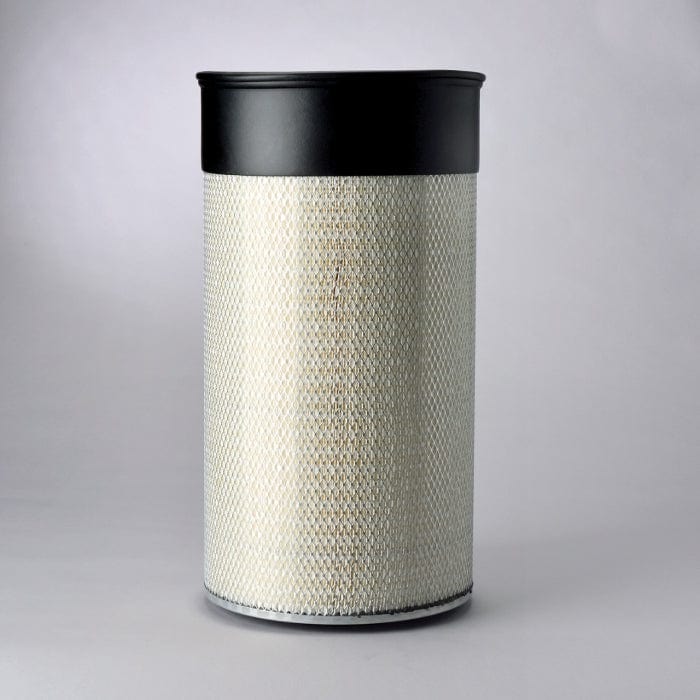

• Donaldson Air Filter, Primary Round - Donaldson P182078
1 1

Air Filter, Primary Round - Donaldson P182078

Air Filter, Primary Round - Donaldson P182078

£125.92
£125.92
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P182078

Air Filter, Primary Round
Outer Diameter 12.09 inch (307.1 mm)
Inner Diameter 7.72 inch (196.2 mm)
Length 23.00 inch (584.2 mm)
Overall Length 23.50 inch (596.9 mm)
Bolt Hole Diameter 0.89 inch (22.73 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Type Primary
Style Round
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 307.1 mm (12.09 inch)
  • Inner Diameter: 196.2 mm (7.72 inch)
  • Length: 584.2 mm (23.00 inch)
  • Overall Length: 596.9 mm (23.50 inch)
  • Bolt Hole Diameter: 22.73 mm (0.89 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.360 m (14.40 inch)
  • Packaged Width: 0.360 m (14.40 inch)
  • Packaged Height: 0.615 m (24.60 inch)
  • Packaged Weight: 5.348 kg (11.78 lb)
  • Packaged Volume: 0.083 m3 (2.95 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421310090
  • UPC Code: 742330027011

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ALLIS-CHALMERS 70671838
CATERPILLAR 3I0944
CHARDONNET 7212167200
CLARK 991270700
FIATALLIS 1930701
FMC 3H1372
FORD 703409
FORD 9576P182078
HAVAM HD8980
HAVAM HD7425
LINK BELT 3H1372
LOESING 21712
TROJAN 1433798
VMC AF182078
VOLVO 991270700
WALGAHN-MOTORENTECHN 811085
WALGAHN-MOTORENTECHN 00811085

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
FIAT FD30 - TRACTOR TRACKED - FIAT 8285 -
FIAT FD30B - TRACTOR TRACKED - - FD30B -
FIAT FD30C - TRACTOR TRACKED - - FD30C -
NEW HOLLAND 1915 - SWATHER - CATERPILLAR 3306B -
