• Donaldson Air Filter, Primary Round - Donaldson P182071
1 1

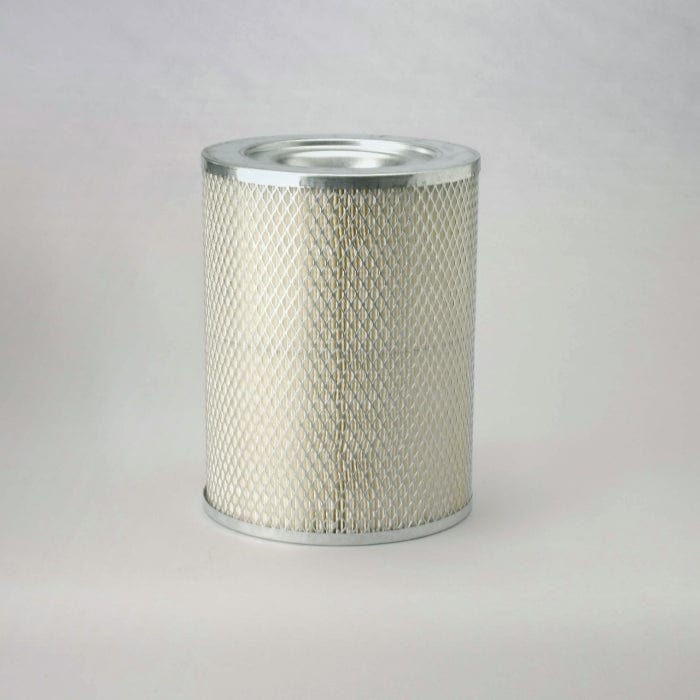

Air Filter, Primary Round - Donaldson P182071

Air Filter, Primary Round - Donaldson P182071

£37.54
£37.54
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P182071

Air Filter, Primary Round
Outer Diameter 8.41 inch (213.5 mm)
Inner Diameter 5.78 inch (146.8 mm)
Length 11.00 inch (279.4 mm)
Bolt Hole Diameter 0.53 inch (13.46 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Family SBG
Type Primary
Style Round
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 213.5 mm (8.41 inch)
  • Inner Diameter: 146.8 mm (5.78 inch)
  • Length: 279.4 mm (11.00 inch)
  • Bolt Hole Diameter: 13.46 mm (0.53 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Family: SBG
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.248 m (9.90 inch)
  • Packaged Width: 0.248 m (9.90 inch)
  • Packaged Height: 0.358 m (14.30 inch)
  • Packaged Weight: 1.684 kg (3.71 lb)
  • Packaged Volume: 0.023 m3 (0.81 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330026991

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AEC WHITLOCK PX05073
AEC WHITLOCK 1108SP
AGCO 71136161
ALLIS-CHALMERS 301799
ALLIS-CHALMERS 71132849
ALLIS-CHALMERS 71132848
ALLIS-CHALMERS 1336161
ALLIS-CHALMERS 3039921
ALLIS-CHALMERS 11328481
ALLIS-CHALMERS 1136161
ALLIS-CHALMERS 1132849
ALLIS-CHALMERS 1132848
ALLIS-CHALMERS 1136191
AMERICAN MOTORS CORPORATION SFA1071P
AUSTIN-WESTERN PGF17747
AUSTIN-WESTERN PGF17151
AUSTIN-WESTERN AW035125
AVELING-BARFORD 3205
BERGERAT MONNOYEUR E2123
BUFFALO-SPRINGFIELD 19870
BUFFALO-SPRINGFIELD 853521020
BUFFALO-SPRINGFIELD 853521037
CASE/CASE IH C0250532
CASE/CASE IH XA83965
CASE/CASE IH P250532
CASE/CASE IH 264199C91
CASE/CASE IH 264199C92
CASE/CASE IH 4502874R91
CASE/CASE IH 1414261
CASE/CASE IH S0250532
CATERPILLAR 682995
CATERPILLAR 687742
CATERPILLAR 3I0822
CATERPILLAR 3I0942
CATERPILLAR 661433
CATERPILLAR 3R2253
CATERPILLAR 9Y7815
CATERPILLAR 3R1271
CHARDONNET 7218107100
CHICAGO PNEUMATIC P1982
CHICAGO PNEUMATIC P198255
CHICAGO PNEUMATIC 000P1982
CHICAGO PNEUMATIC 3PS2649
CHRYSLER 973340001
CLARK 895989
CLARK 1722458
CLARK PGF17151
CLARK PGF17747
CLARK AW035125
CLARK 895985
CLARK AWO35125
CLARK,J.L. AW035125
CLARK,J.L. AWO35125
COOP AP101066K
COOP PMA101066K
CUMMINS 150778
CUMMINS 150773
CUMMINS 163978
CUMMINS 299349
CUMMINS 705170
CUMMINS 151606
DEUTZ 71136161
DIAMOND REO 2574H2
DIAMOND REO 2574H22
DOMINION 6038
DORMAN L551F4
DRESSER 109129
DYNAPAC PCA25011
DYNAPAC PCA25001
DYNAPAC PCA2501
DYNAPAC 891529
DYNAPAC 335656
DYNAPAC 335665
ENMTP CPG 5602172
EXMAN SFA1071P
FIAT 71136191
FIAT 71136161
FIAT 71132849
FIAT 71132848
FIAT 1336161
FIAT 70301799
FIAT 70113616
FIAT 1414261
FIAT 1132849
FIAT 1136161
FORD 9576P182071
FREIGHTLINER DNP181071
FREIGHTLINER DNP182071
FURUKAWA 4502874R91
FWD 204328
FWD 204378
FWD 204705
FWD 10175544
FWD 201368
GALION D78040
GENERAL ELECTRIC L551F4
GREYFRIARS 263A
GRIMMER SCHMIDT 932454
HAVAM HD6965
HITACHI 1132848
HITACHI 113616
HOUGH 264199R91
HYSTER 141265
INTERNATIONAL 869838R91
INTERNATIONAL 869838R92
INTERNATIONAL 8000342R91
INTERNATIONAL 800342R91
INTERNATIONAL 4502874R91
INTERNATIONAL 613893R91
INTERNATIONAL 636893R91
JCB 32200700
JCB 32200706
JOHN BEAN 1414261
KERSHAW 274801
KOMATSU 109129
LETOURNEAU VS1810
LETOURNEAU KC5060
LETOURNEAU KC2888
LETOURNEAU JG3134
LETOURNEAU VJ3259
LOESING 20913
MANITOU 169475
MANITOWOC 169475
MCCORMICK P250532
MCCORMICK XA83965
MCCORMICK S0250532
MISFAT 787100
NACCO MATERIALS 179949
NACCO MATERIALS 179932
NACCO MATERIALS T672502
NEW HOLLAND 1414261
NOVATEC 03177
NOVATEC XLP182071
P & H 1046Z626
POCLAIN C0250532
REFILCO AF2066
RYGO 204328
SCHRAMM 50001497
TEREX 101020
TIM 3R2253
UNITED CENTRAL INDUSTRIAL SUPP 687560
VERSATILE 601T141
VIBRO 235656
VMC AF182071
VOLVO 220055097
WALGAHN-MOTORENTECHN 811080
WALGAHN-MOTORENTECHN 00811080
WGB SA108
WGB SA144
WGB SA189
WHITE 3094H2X
WHITE 3094H2
WHITE 3389H2
WHITE 3467H2
WHITE YS29973
WHITE 2574H2
WHITE 2574H22
WHITE 1739641
WHITE 6DAE0330
WHITE 697694
WHITE 3467H21
WHITE 3467H23
WHITE 127074462
WHITE 6950639
WHITE 529973
WHITE 888599
WHITE Y697669
WHITE Y667669
WHITE Y529973
WHITE 885599
WHITE 27074462

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
ALLIS-CHALMERS HD21A - TRACTOR - - HD21A -
ALLIS-CHALMERS HD21P - TRACTOR - - HD21P -
CLARK RANGER 662 - SKIDDER - - RANGER 662 -
CLARK RANGER 664 - SKIDDER - DETROIT DIESEL 3-53 -
CLARK RANGER 664GR - SKIDDER - DETROIT DIESEL 3-53 -
CLARK RANGER 666 - SKIDDER - DETROIT DIESEL 4-53 -
CLARK RANGER 666GR - SKIDDER - DETROIT DIESEL 4-53 -
DYNAPAC CA30D - COMPACTOR - DEUTZ F6L913 -
