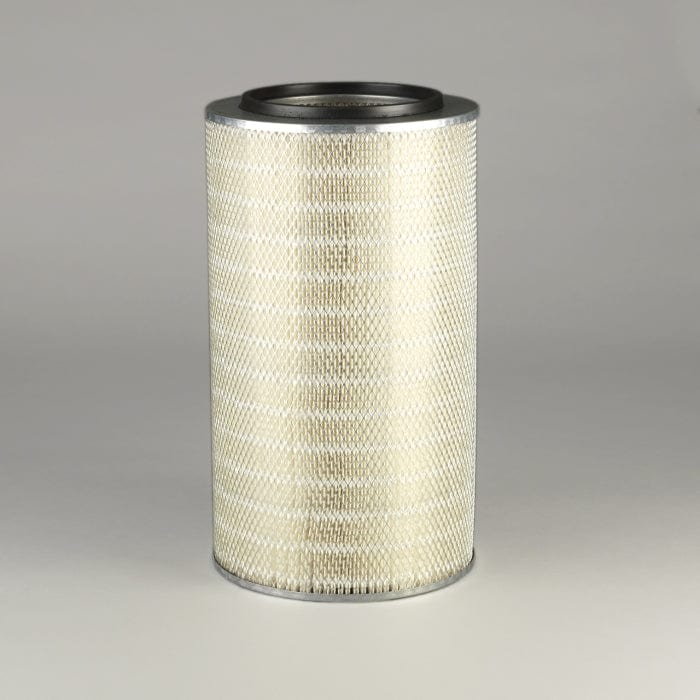

Air Filter, Primary Round - Donaldson P181183
Air Filter, Primary Round - Donaldson P181183
Regular price
£119.00
Regular price
Sale price
£119.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P181183
Air Filter, Primary Round| Outer Diameter | 12.09 inch (307.2 mm) |
| Inner Diameter | 7.72 inch (196 mm) |
| Length | 21.00 inch (533.3 mm) |
| Overall Length | 21.50 inch (546 mm) |
| Bolt Hole Diameter | 0.89 inch (22.73 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 307.2 mm (12.09 inch)
- Inner Diameter: 196 mm (7.72 inch)
- Length: 533.3 mm (21.00 inch)
- Overall Length: 546 mm (21.50 inch)
- Bolt Hole Diameter: 22.73 mm (0.89 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.335 m (13.40 inch)
- Packaged Width: 0.330 m (13.20 inch)
- Packaged Height: 0.585 m (23.40 inch)
- Packaged Weight: 4.268 kg (9.40 lb)
- Packaged Volume: 0.067 m3 (2.40 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-03
- HTS Code: 8421310090
- UPC Code: 742330026342
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A1570C | |
| AGCO | 3633059M1 | |
| AGCO | 3632143M1 | |
| AMERICAN MOTORS CORPORATION | SFA1183P | |
| AMERICAN PARTS | 94810 | |
| BIG A | 94810 | |
| CASE/CASE IH | 904203S1 | |
| CATERPILLAR | 3I0878 | |
| EXMAN | SFA1183P | |
| GPC | FC2138 | |
| HYUNDAI | 14L101560 | |
| KRALINATOR | LA1292 | |
| MASSEY FERGUSON | 3632143M1 | |
| MASSEY FERGUSON | 3633059M1 | |
| NELSON | 70828N | |
| STEIGER | 904203T1 | |
| STEIGER | 904203S1 | |
| VMC | AF181183 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AGCO 8360 | - | TRACTOR | 8000 SERIES | CUMMINS N14 | - |
| AGCO 8425 AGCOSTAR | - | TRACTOR | 8000 SERIES | CUMMINS N14 | - |
| AGCO 8425 AGCOSTAR | - | TRACTOR | 8000 SERIES | DETROIT DIESEL 12.7L | - |
| CASE/CASE IH 9180 | - | TRACTOR | STEIGER SERIES | CUMMINS NTA855 | - |
| CASE/CASE IH CS280 | - | TRACTOR | - | - CS280 | - |
| CASE/CASE IH CS325 | - | TRACTOR | - | - CS325 | - |
| CASE/CASE IH CS360 | - | TRACTOR | - | - CS360 | - |
| HYUNDAI HL770 | - | LOADER WHEELED | HL SERIES | CUMMINS LTA10 | - |
| HYUNDAI HL770-7 | - | LOADER WHEELED | HL SERIES | CUMMINS QSC8.3 | - |
| HYUNDAI HL770-7A | - | LOADER WHEELED | HL SERIES | CUMMINS QSL9 | - |
| HYUNDAI R450LC-3 | - | EXCAVATOR TRACKED | ROBEX | CUMMINS M11 | - |
| STEIGER CM360 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER COUGAR IV CM280 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER CS280 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER KM360 | - | TRACTOR | - | CUMMINS NTA855 | - |
| STEIGER PANTHER IV CM325 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER PANTHER IV KM325 | - | TRACTOR | - | CUMMINS NTA855 | - |
| STEIGER PANTHER IV SM325 | - | TRACTOR | - | KOMATSU SAD125 | - |
