• Donaldson Air Filter, Primary Round - Donaldson P181126
1 1

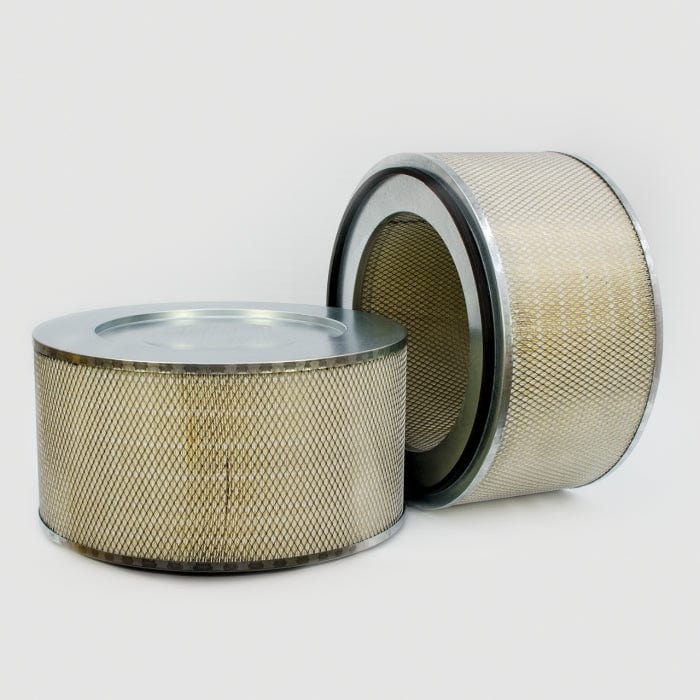

Air Filter, Primary Round - Donaldson P181126

Air Filter, Primary Round - Donaldson P181126

£103.80
£103.80
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P181126

Air Filter, Primary Round
Outer Diameter 19.29 inch (490 mm)
Inner Diameter 12.93 inch (328.4 mm)
Length 9.84 inch (249.9 mm)
Overall Length 10.34 inch (262.6 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Type Primary
Style Round
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 490 mm (19.29 inch)
  • Inner Diameter: 328.4 mm (12.93 inch)
  • Length: 249.9 mm (9.84 inch)
  • Overall Length: 262.6 mm (10.34 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.492 m (19.68 inch)
  • Packaged Width: 0.492 m (19.68 inch)
  • Packaged Height: 0.276 m (11.02 inch)
  • Packaged Weight: 5.710 kg (12.59 lb)
  • Packaged Volume: 0.069 m3 (2.47 ft3)

Other Information

  • Country of Origin: United Kingdom
  • HTS Code: 84213100 90
  • UPC Code: 742330026137

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO A1185C
AMERICAN MOTORS CORPORATION SFA1126P
AMERICAN PARTS 94352
BIG A 94352
CATERPILLAR 8N6309
COOPERS AEM2240
DELUXE 589AIR
EXMAN SFA1126P
FORD 9576P181126
FSI AF2010
GPC FC2153
HAVAM HD8426
KRALINATOR LA390
KRALINATOR LA1840
LOESING 020240
LOESING 20240
NELSON 70627N
NUTECH S2727
PERRY PA589
SDMO 330560306
UNITED CENTRAL INDUSTRIAL SUPP 922516
VMC AF181126
WALGAHN-MOTORENTECHN 00811117
WALGAHN-MOTORENTECHN 811117

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 3176B - ENGINE - - 3176B -
CATERPILLAR 3508 - ENGINE - CATERPILLAR 3508 -
CATERPILLAR 3508B - ENGINE - - 3508B -
CATERPILLAR 3512 - ENGINE - - 3512 -
CATERPILLAR 3512B - ENGINE - - 3512B -
CATERPILLAR 3516 - ENGINE - - 3516 -
CATERPILLAR 3516B - ENGINE - CATERPILLAR 3516B -
CATERPILLAR 3612 - ENGINE - - 3612 -
CATERPILLAR G3412 - ENGINE - - G3412 -
CATERPILLAR G3508 - ENGINE - - G3508 -
CATERPILLAR G3512 - ENGINE - CATERPILLAR G3512 -
CATERPILLAR G3516 - ENGINE - - G3516 -
CATERPILLAR PM3508 - GENERATOR SET - - PM3508 -
CATERPILLAR PM3512 - GENERATOR SET - - PM3512 -
CATERPILLAR R1300 - LOADER WHEELED - - R1300 -
CATERPILLAR SPF343 - GENERATOR SET - - SPF343 -
