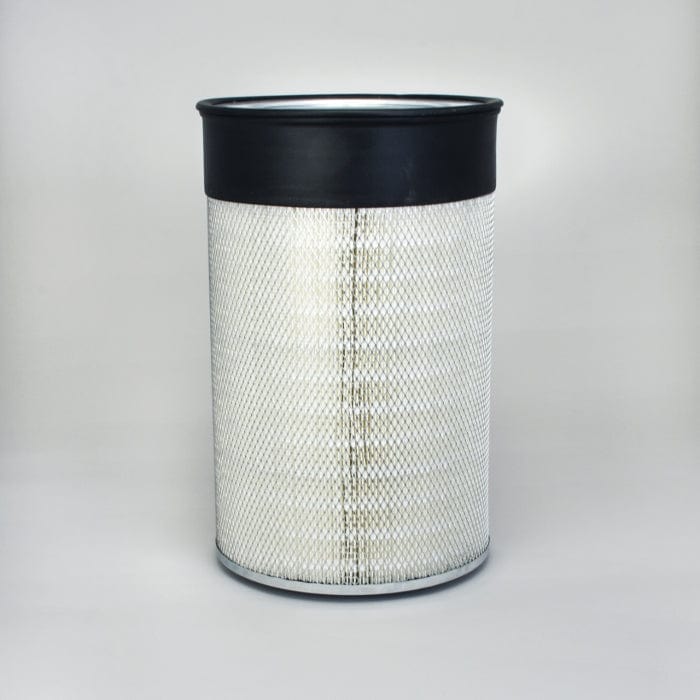

• Donaldson Air Filter, Primary Round - Donaldson P181047
1 1

Air Filter, Primary Round - Donaldson P181047

Air Filter, Primary Round - Donaldson P181047

£160.12
£160.12
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P181047

Air Filter, Primary Round
Outer Diameter 13.84 inch (351.6 mm)
Inner Diameter 9.48 inch (240.7 mm)
Length 22.03 inch (559.6 mm)
Overall Length 22.53 inch (572.3 mm)
Bolt Hole Diameter 0.94 inch (23.75 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Type Primary
Style Round
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 351.6 mm (13.84 inch)
  • Inner Diameter: 240.7 mm (9.48 inch)
  • Length: 559.6 mm (22.03 inch)
  • Overall Length: 572.3 mm (22.53 inch)
  • Bolt Hole Diameter: 23.75 mm (0.94 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.403 m (16.10 inch)
  • Packaged Width: 0.403 m (16.10 inch)
  • Packaged Height: 0.595 m (23.80 inch)
  • Packaged Weight: 6.131 kg (13.51 lb)
  • Packaged Volume: 0.100 m3 (3.57 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421310090
  • UPC Code: 742330025482

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO A486C
ALLIS-CHALMERS 0690305
ALLIS-CHALMERS 70690305
ALLIS-CHALMERS 690305
ALLIS-CHALMERS 690005
AMERICAN PARTS 946
AMERICAN PARTS 93954
BIG A 93954
BIG A 946
CATERPILLAR 3I0800
CONTINENTAL PCA578SY
CONTINENTAL PCA578
COOP PMA114591
COOP AP114591
COOPERS AEM2048
CYCLONE PMA114591
DART SMP181047
EUCLID 9038907
EUCLID 9059569
EUCLID 9036292
EUCLID 9059519
FIAT 690305
FIAT 0690305
FIATALLIS 70690305
FINN EQUIPMENT FFA10820
FREIGHTLINER DNP181047
GPC FC298
GREYFRIARS 289A
GUARDIAN G114591
HAVAM HD6916
HITACHI 0690305
KRALINATOR LA481
NELSON 70057N
NELSON 70863N
NELSON 118156
NELSON WINSLOW 118156
NEW HOLLAND 70690305
NEW HOLLAND 1930763
NUTECH N2087
NUTECH S2087
ORENSTEIN & KOPPEL 101155
P & H GH152736
P.B.R. AI3300
QUAKER STATE QSA578
REFILCO AF2954
SAVARA 92315817
SAVARA 92315811
SAVARA 92315211
SAVARA 92315217
TECHNOCAR A784
TECNO COMP TM215
TEREX 9036292
TEREX 9059569
TEREX 09059569
TEREX 9038907
TEREX 69038907
TRU-AIR TA7432
UNITED ENGINE LIFE U14591
WALGAHN-MOTORENTECHN 811064

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
ALLIS-CHALMERS 41B - TRACTOR - CUMMINS VT1710 -
ALLIS-CHALMERS FD30B - TRACTOR - CUMMINS - -
ALLIS-CHALMERS FD50 - TRACTOR - CUMMINS VT1710 -
ALLIS-CHALMERS FR35 - MISC EQUIPMENT - CUMMINS - -
ALLIS-CHALMERS HD41B - TRACTOR - CUMMINS VT1710 -
EUCLID 82-40 - TRACTOR TRACKED - DETROIT DIESEL 8V-71 -
EUCLID 82-50 - TRACTOR - - 82-50 -
FIATALLIS FD50 - EXCAVATOR - - FD50 -
KOMATSU TD40B - TRACTOR TRACKED - CUMMINS KTA19 -
TEREX 72-11 - LOADER - DETROIT DIESEL 3-71 -
TEREX 72-21AA - LOADER - DETROIT DIESEL 3-71N -
TEREX 72-51B - LOADER - - 72-51B -
TEREX 72-52B - LOADER - - 72-52B -
TEREX 72-61 - LOADER - - 72-61 -
TEREX 72-61 80C - LOADER - DETROIT DIESEL 8V-71T -
TEREX 72-71 - LOADER - DETROIT DIESEL 8V-71 -
TEREX 72-71 - LOADER - DETROIT DIESEL 8V-92T -
TEREX 72-71B - LOADER - - 72-71B -
TEREX 72-71B 90B - LOADER - DETROIT DIESEL 8V-92T -
TEREX 82-20B - DOZER TRACKED - DETROIT DIESEL 6V-71T -
TEREX 82-40 - DOZER TRACKED - DETROIT DIESEL 8V-71N -
TEREX 82-50 - TRACTOR TRACKED - DETROIT DIESEL 12V-71 -
TEREX 82-50 - DOZER TRACKED - DETROIT DIESEL 12V-71T -
VERSATILE 1156 - TRACTOR - - 1156 -
