• Donaldson Air Filter, Primary Round - Donaldson P181041
1 1

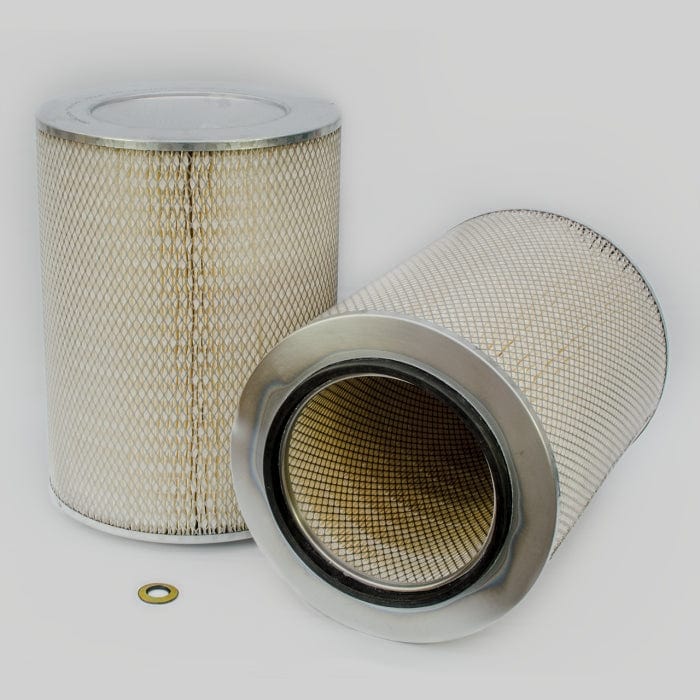

Air Filter, Primary Round - Donaldson P181041

Air Filter, Primary Round - Donaldson P181041

£57.54
£57.54
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P181041

Air Filter, Primary Round
Outer Diameter 12.09 inch (307.2 mm)
Inner Diameter 7.72 inch (196.2 mm)
Length 16.00 inch (406.4 mm)
Overall Length 16.50 inch (419.1 mm)
Bolt Hole Diameter 0.89 inch (22.73 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Family STG
Type Primary
Style Round
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 307.2 mm (12.09 inch)
  • Inner Diameter: 196.2 mm (7.72 inch)
  • Length: 406.4 mm (16.00 inch)
  • Overall Length: 419.1 mm (16.50 inch)
  • Bolt Hole Diameter: 22.73 mm (0.89 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Family: STG
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.315 m (12.60 inch)
  • Packaged Width: 0.315 m (12.60 inch)
  • Packaged Height: 0.433 m (17.32 inch)
  • Packaged Weight: 3.405 kg (7.51 lb)
  • Packaged Volume: 0.045 m3 (1.59 ft3)

Other Information

  • Country of Origin: Czech Republic
  • HTS Code: 8421310090
  • UPC Code: 742330025420

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS AP3518A
AC DELCO A542C
AC DELCO A417CL
AC DELCO A417C
AGCO 207002177
AGCO 207002187
ALCO MD9950
ALCO MD512
ALCOA MARINE HA668
ALLIS-CHALMERS 0674967
ALLIS-CHALMERS 0685794
ALLIS-CHALMERS 667690
ALLIS-CHALMERS 667686
ALLIS-CHALMERS 6749675
ALLIS-CHALMERS 674967
ALLIS-CHALMERS 70663856
ALLIS-CHALMERS 685793
ALLIS-CHALMERS 00667690
ALLIS-CHALMERS 00667686
ALLIS-CHALMERS 685794
ALLIS-CHALMERS 663856
ALLIS-CHALMERS 0667690
ALLIS-CHALMERS 0667686
ALLIS-CHALMERS 0663856
ALLIS-CHALMERS 70674967
AMERICAN MOTORS CORPORATION HA668
AMERICAN PARTS 93225
AMERICAN PARTS 921
ARMAFILT L3064170
ARMAFILT L3084120
ASAHI A668
ATLAS COPCO 5540963600
BIG A 921
BIG A 93225
BOBCAT 900002
BOMAG 5730107
CARBOCOL 949525
CARBOCOL 001175447
CASE/CASE IH F850568
CASE/CASE IH F0850568
CASE/CASE IH P850568
CASE/CASE IH F0850868
CASE/CASE IH 702864C1
CASE/CASE IH P8508568
CATERPILLAR 1432605
CATERPILLAR 3I0966
CATERPILLAR 6N6064
CATERPILLAR 3I0252
CATERPILLAR 3I0794
CHAMP AF9086
CHAMP LAF9086
CHAMPION ROAD 56151
CHICAGO PNEUMATIC 13PS4670
CHICAGO PNEUMATIC 13PS4670P
CHICAGO PNEUMATIC 1PS467
CHICAGO PNEUMATIC 1PS4670
CHICAGO PNEUMATIC 57PS4670
CLEAN MA520
COMPAIR 4710047
CONTINENTAL PCA535
COOP PMA109086
COOP AP109086
COOPERS AZA510
CROSLAND 9572
CYCLONE PMA109086
DART SMP181042
DELUXE AF765
DELUXE 765AIR
DELUXE 765
DIAMOND DX380
DIAMOND REO DX380
DIAMOND T DX380
DIVCO 10881
DIVCO 15924
DOMINION 11565
DOMINION 10881
DOMINION 15924
DYNAPAC 499513
EATON 2074151
EIMCO 04710047
EIMCO D2NP181041
EUCLID 4012361
EUCLID 4012631
EUCLID 120001490
EUCLID 9059563
EUCLID 4003970
EUCLID 4003986
EUCLID EG82665
EUCLID 9034529
EUCLID 9035429
EUCLID 4005570
EUCLID 9038899
EUCLID 9260781
EUCLID 9243828
FAUN 746546
FIAAM FLI6599
FIAT 70667690
FIAT 674967
FIAT 70667686
FIAT 667690
FIAT 667686
FIAT 9231300
FIAT 92313000
FIAT 1901780
FIAT 104413
FIAT 8322987
FIAT 0667686
FIAT 0667690
FIAT 70663856
FIAT 78332987
FILT A2431
FISPA FAC930
FREIGHTLINER FLD112
FREIGHTLINER FLC112
FREIGHTLINER DNP181041
GIF GA840
GOULD AP109086
GPC FC265
GREYFRIARS 1244A
GUARDIAN G131333
GUARDIAN G181041
GUARDIAN G109086
GUD ADG479
HINO 178012290
HINO 178012270
HINO 178012100
HINO 178012570
HITACHI 92313000
HITACHI 0667686
HITACHI 0667690
HITACHI 0674967
HITACHI 70667686
HITACHI 70667690
HITACHI E12000149
HITACHI 78332987
INGERSOLL RAND 52269875
INGERSOLL RAND 52266975
INGERSOLL RAND 50616414
INTERNATIONAL 702512C92
INTERNATIONAL 702864C91
JOHN DEERE U44957
KNECHT LX763
KOEHRING 05730107
KOEHRING 901V2966
KOEHRING 5730107
KOEHRING E089607
KOMATSU 2080168510
KOMATSU 2080168480
KOMATSU 400591
KOMATSU 988633
KRALINATOR LA276
KRALINATOR LA608
LETOURNEAU PB0183
LETOURNEAU DA4978
LETOURNEAU VY7894
LETOURNEAU VP7130
LETOURNEAU VP7011
LEYLAND-DAF (LDV) 41028001
LOCKHEED AP3518
LOCKHEED AP3518A
LOCKHEED LK3518
LOESING 020891
MCCORMICK P850568
MICHIGAN 949524
NELSON 70114N
NELSON 109086
NELSON 84563S
NELSON WINSLOW 109086
NEW HOLLAND 1432605
NEW HOLLAND F0850568
NEW HOLLAND V30924
NUTECH S1767
NUTECH N1767
ORENSTEIN & KOPPEL 1432605
ORENSTEIN & KOPPEL 1408296
ORENSTEIN & KOPPEL 101040
OSHKOSH 41340A
OTTAWA TRUCK 90001771
P.B.R. AI3304
PERMATIC FA4201
PERMATIC FA3123
PERRY PA972
POCLAIN G0850568
PURFLUX A921
QUAKER STATE QSA535
RAYGO 215155
REFILCO AF2255
REFILCO AF22500
REFILCO AF2225
ROBBINS 180352733
SANDVIK 69008903
SAVARA SA130
SAVARA 92313017
SAVARA 92313011
SAVARA 923130
SCHRAMM 50004284
SCHRAMM DR3780041
SCHRAMM DR3780040
TAMROCK 85224979
TAMROCK 04710047
TECHNOCAR A921
TECHNOCAR A724
TECNO COMP TM059
TEHO 21037
TEHO IIM1037
TEREX 1432605
TEREX F0850568
TEREX 9035429
TEREX 9059563
TEREX 9059513
TEREX 09059563
TEREX 9038899
TEREX 8994736
TORO 4710047
TOYOTA MP9217F
TRU-AIR T109086
TRU-AIR TA7418
UNION CITY BODY A071
UNITED CENTRAL INDUSTRIAL SUPP 687484
UNITED ENGINE LIFE U09086
UNOCAL A075V
UNOCAL A075
VERMEER 78513013
VERSATILE 30915
VIC A609
VIRGIS CH1227301
VIRGIS CH12273
VMC AF181041
VME 966031
VME 12000149
VME 120001490
VME M12000149
VOLVO 79253662
VOLVO 6236742
VOLVO 12000149
VOLVO 120001490
VOLVO M12000149
VOLVO 79205191
WABCO VY7894
WABCO VY8537
WABCO PB0183
WARTSILA L3084120
WARTSILA L3064170
WESTERN STAR TRUCK 220054408
WHITE 2070022187
WHITE 207002187
WHITE 27090033
WHITE 207002177
WHITE 027090033
YALE 2074151
