• Donaldson Air Filter, Primary Round - Donaldson P181038
1 1

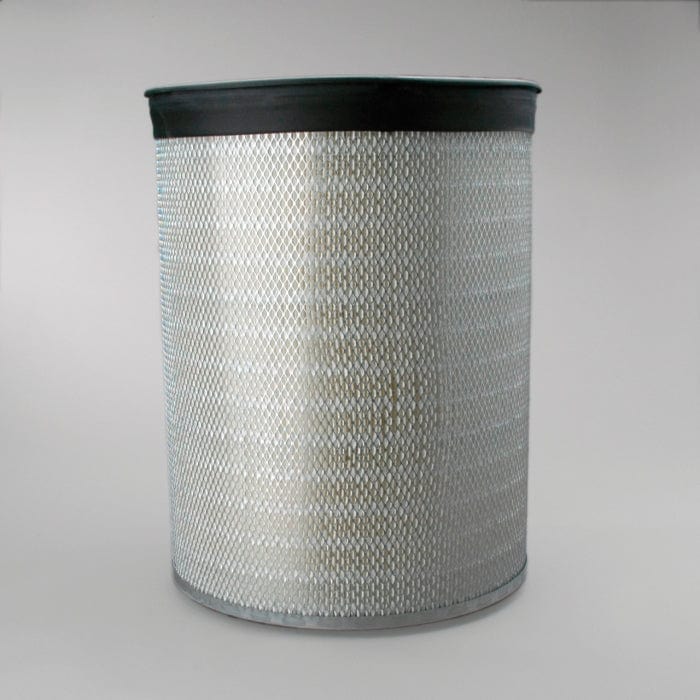

Air Filter, Primary Round - Donaldson P181038

Air Filter, Primary Round - Donaldson P181038

£125.18
£125.18
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P181038

Air Filter, Primary Round
View full details

Specifications

Attributes

  • Outer Diameter: 446.6 mm (17.58 inch)
  • Inner Diameter: 281.1 mm (11.07 inch)
  • Length: 585.7 mm (23.06 inch)
  • Overall Length: 598.4 mm (23.56 inch)
  • Bolt Hole Diameter: 22.73 mm (0.89 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Family: SRG
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.473 m (18.90 inch)
  • Packaged Width: 0.473 m (18.90 inch)
  • Packaged Height: 0.601 m (24.02 inch)
  • Packaged Weight: 7.800 kg (17.20 lb)
  • Packaged Volume: 0.139 m3 (4.96 ft3)

Other Information

  • Country of Origin: United Kingdom
  • HTS Code: 8421310090
  • UPC Code: 742330025390

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO A554C
AMERICAN PARTS 1147
AMERICAN PARTS 93440
BIG A 1147
BIG A 93440
CATERPILLAR 3I0919
CATERPILLAR 9Y6835
CATERPILLAR 9Y7662
CATERPILLAR 3I0791
CHAMP LAF5069
CHAMP AF5069
CHARDONNET 7218103800
COMPAIR 694488
CONTINENTAL PCA573
COOPERS AEM2012
CUMMINS 3875391
CUMMINS 3010306
CUMMINS 3013214
CUMMINS 3015349
CUMMINS VS2186
CYCLONE PMA115069
DART 3040562
DART SMP181038
DELUXE AF681
DELUXE 681AIR
DELUXE 681
DEMAG 988635
EIMCO 69008917
EIMCO D2NP181038
EUCLID 6945659
EUCLID 4031216
EUCLID E4082222
EUCLID 40822223
FAMEL FR1077
FREIGHTLINER DNP181038
GUARDIAN G115069
HAVAM HD6605
HAVAM HD8900
HITACHI E4082222
INGERSOLL RAND 56964562
KENWORTH 10005140
KENWORTH 3040553
KENWORTH 3040683
KENWORTH 3040562
KHD 3745965
KOMATSU 988635
KOMATSU 694488
KRALINATOR LA528
LETOURNEAU 1438
LETOURNEAU PB0687
LETOURNEAU VA0003
LETOURNEAU PB2433
LETOURNEAU YA0003
LETOURNEAU PB1242
LOESING 020869
LOESING 20869
MARATHON EQPT LTD 4078927
MTU 8690940080
NELSON 70090N
NELSON 115069
NELSON 70400N
NELSON WINSLOW 115069
NUTECH N2587
NUTECH S2587
ORENSTEIN & KOPPEL 1408439
ORENSTEIN & KOPPEL 101080
P & H 1046Z507
PRO MATCH 9Y6835
QUAKER STATE QSA573
REFILCO AF2440
SICARD 10005140
STEWART & STEVENSON 420003
STRUEVER 3745965
TEREX 694488
TEREX 6945659
TEREX 9059560
TEREX 09059560
TEREX 9059510
TIM 3I0919
TIM 9Y7662
UNITED CENTRAL INDUSTRIAL SUPP 687472
UNITED ENGINE LIFE U15069
VMC AF181038
VME 4082222
VME 40822223
VOLVO 4082222
VOLVO 40822223
WABCO VS2186
WABCO VS2188
WABCO VA0003
WABCO TA3537
WABCO PB2433
WABCO 4078927
WABCO PB0687
WABCO PB1242
WALGAHN-MOTORENTECHN 811055
WAUKESHA 309118
WAUKESHA 309138
WIRTGEN 20768

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
EUCLID 404LDC - CONSTRUCTION EQUIPMENT - - 404LDC -
EUCLID R50 - HAUL TRUCK - CUMMINS KTA1150 -
EUCLID R60C - HAUL TRUCK - - R60C -
EUCLID R60D - HAUL TRUCK - - R60D -
EUCLID R65C - HAUL TRUCK - - R65C -
EUCLID R65D - HAUL TRUCK - - R65D -
HITACHI EH1000 - DUMP TRUCK - CUMMINS QSK19 -
HITACHI EH1100 - HAUL TRUCK - MTU 12V-2000 -
HITACHI EX2500 - EXCAVATOR TRACKED - CUMMINS KTA50 -
HITACHI EX2500-5 - EXCAVATOR TRACKED - CUMMINS QSK45 -
KOMATSU L700 - LOADER - - L700 -
LECTRA HAUL M120-17 - HAUL TRUCK - CUMMINS VTA1710 -
LETOURNEAU L800 - LOADER - CUMMINS KT38 -
TEREX 33-11C - HAUL TRUCK - DETROIT DIESEL 16V-92TA -
TEREX 33-11D - HAUL TRUCK - DETROIT DIESEL 16V-92TA -
TEREX 33-15 - HAUL TRUCK - DETROIT DIESEL 16V-149T -
TEREX 33-15B - HAUL TRUCK - DETROIT DIESEL 16V-149T -
UNIT RIG EQUIPMENT M120-17 LECTRA HAUL - HAUL TRUCK - - M120-17 LECTRA HAUL -
UNIT RIG EQUIPMENT M120-17 LECTRA HAUL - HAUL TRUCK - CUMMINS VTA1710 -
