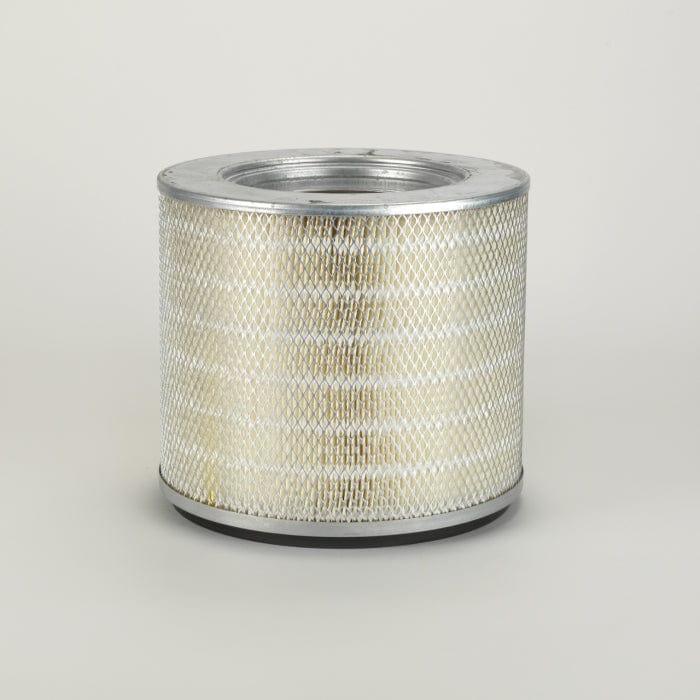

Air Filter, Primary Round - Donaldson P119417
Air Filter, Primary Round - Donaldson P119417
Regular price
£92.46
Regular price
Sale price
£92.46
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P119417
Air Filter, Primary Round| Outer Diameter | 12.74 inch (323.59 mm) |
| Inner Diameter | 8.38 inch (212.85 mm) |
| Length | 11.03 inch (280.16 mm) |
| Overall Length | 11.53 inch (292.86 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 323.59 mm (12.74 inch)
- Inner Diameter: 212.85 mm (8.38 inch)
- Length: 280.16 mm (11.03 inch)
Packaged Dimensions
- Packaged Length: 0.358 m (14.30 inch)
- Packaged Width: 0.353 m (14.10 inch)
- Packaged Height: 0.390 m (15.60 inch)
- Packaged Weight: 3.743 kg (8.25 lb)
- Packaged Volume: 0.051 m3 (1.82 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330009956
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A89C | |
| AC DELCO | A189C | |
| AC DELCO | A189CL | |
| AC DELCO | PC175 | |
| AC DELCO | AC89 | |
| ALLIS-CHALMERS | 6207174 | |
| ALLIS-CHALMERS | 620717 | |
| ALLIS-CHALMERS | 620005 | |
| ALLIS-CHALMERS | 6207179 | |
| ALLIS-CHALMERS | 00185162 | |
| ALLIS-CHALMERS | 0185162 | |
| ALLIS-CHALMERS | 01847569 | |
| ALLIS-CHALMERS | 01847565 | |
| ALLIS-CHALMERS | 0184756 | |
| ALLIS-CHALMERS | 1851629 | |
| ALLIS-CHALMERS | 185162 | |
| ALLIS-CHALMERS | 186162 | |
| ALLIS-CHALMERS | 620004 | |
| ALLIS-CHALMERS | 6200035 | |
| ALLIS-CHALMERS | 6200034 | |
| ALLIS-CHALMERS | 620003 | |
| ALLIS-CHALMERS | 70620717 | |
| ALLIS-CHALMERS | 0620003 | |
| ALLIS-CHALMERS | 0620717 | |
| ALLIS-CHALMERS | 1847565 | |
| ALLIS-CHALMERS | 184756 | |
| ALLIS-CHALMERS | 1847569 | |
| AMERICAN PARTS | 93865 | |
| AMERICAN PARTS | 270 | |
| BIG A | 93865 | |
| BIG A | 270 | |
| CASE/CASE IH | 313709R91 | |
| CATERPILLAR | 2S5698 | |
| CATERPILLAR | 2S5652 | |
| CATERPILLAR | 2S6610 | |
| CATERPILLAR | 2S648 | |
| CATERPILLAR | 5M1840 | |
| CATERPILLAR | 2M8708 | |
| CATERPILLAR | 2M6447 | |
| CATERPILLAR | 2M6446 | |
| CATERPILLAR | 2M7941 | |
| CATERPILLAR | 2M6377 | |
| CATERPILLAR | 2M5522 | |
| CATERPILLAR | 286610 | |
| CATERPILLAR | 28648 | |
| CATERPILLAR | 285698 | |
| CATERPILLAR | 285652 | |
| CATERPILLAR | 2S5648 | |
| CATERPILLAR | 285640 | |
| CATERPILLAR | 2S5640 | |
| CATERPILLAR | 3I0130 | |
| CATERPILLAR | 7M8700 | |
| CATERPILLAR | 7M8708 | |
| CATERPILLAR | 7M8903 | |
| CATERPILLAR | 5S5652 | |
| CATERPILLAR | 7M2654 | |
| CATERPILLAR | 7M5979 | |
| CATERPILLAR | 7M2045 | |
| CATERPILLAR | 7M2645 | |
| CATERPILLAR | 7M1045 | |
| CATERPILLAR | 2S0648 | |
| CATERPILLAR | 8M1907 | |
| CATERPILLAR | 280648 | |
| CATERPILLAR | 3R9122 | |
| CATERPILLAR | 9M9377 | |
| CATERPILLAR | 9M6379 | |
| CATERPILLAR | 9M6377 | |
| CHAMP | LAF268 | |
| CHAMP | AF268 | |
| CHARDONNET | 7211941700 | |
| CHICAGO PNEUMATIC | 004PS254 | |
| CHICAGO PNEUMATIC | 1PS2548 | |
| CHICAGO PNEUMATIC | 4PS254 | |
| CHICAGO PNEUMATIC | 4PS2548 | |
| CLARK | 944398 | |
| CLARK | 156398 | |
| CLARK | 1564644 | |
| CLARK | 560716 | |
| CLARK | 156938 | |
| CLARK | 1569398 | |
| CLARK | PGF19892 | |
| CLARK | 509666 | |
| CLARK,J.L. | 1564644 | |
| CLEAN | MA722 | |
| COLT | 33651 | |
| CONSOLIDATED PNEUMATIC | 112FPS1087 | |
| CONTINENTAL | PCA268 | |
| COOP | AP18065K | |
| COOP | PMA18065K | |
| COOPERS | AZB150 | |
| COOPERS | AZA500 | |
| CROSLAND | 9513 | |
| CUMMINS | D59941 | |
| CUMMINS | 253322 | |
| CUMMINS | 1691343 | |
| CUMMINS | 169343 | |
| CUMMINS | 701177 | |
| CUMMINS | 139564 | |
| CUMMINS | 139565 | |
| CUMMINS | 139690 | |
| CUMMINS | 139136 | |
| CUMMINS | 130573 | |
| CUMMINS | 299289 | |
| CYCLONE | PMA18065 | |
| CYCLONE | PMA18065K | |
| DAF | 694450 | |
| DART | 304326 | |
| DELUXE | AFK545 | |
| DELUXE | AF545 | |
| DELUXE | K545 | |
| DELUXE | K545AIR | |
| DEMAG | 988695 | |
| DEUTZ | 2164750 | |
| DIAMOND | DX611 | |
| DORMAN | L551C4 | |
| DRESSER | 313709R91 | |
| EATON | 2990304 | |
| ERF (E.R.F.) | 33651 | |
| EUCLID | 815127 | |
| FIAAM | FL16442 | |
| FIAAM | FL6442 | |
| FIAAM | FLI6442 | |
| FIAT | 184756 | |
| FIAT | 0185162 | |
| FIAT | 9942863 | |
| FIAT | 70186162 | |
| FIAT | 185162 | |
| FIAT | 70184756 | |
| FIAT | 70185162 | |
| FIAT | 620717 | |
| FIAT | 620003 | |
| FIAT | 9985780 | |
| FIAT | 70620000 | |
| FIAT | 70620717 | |
| FIAT | 0620717 | |
| FILT | A2330 | |
| FMC | 10913223 | |
| FODEN | Y02264502 | |
| FODEN | YO2264502 | |
| FODEN | Y002264502 | |
| FWD | 207861 | |
| FWD | 206723 | |
| GALION | 73873 | |
| GALION | 73893 | |
| GALION | D73873 | |
| GALION | D73893 | |
| GALION | D59941 | |
| GALION | 59941 | |
| GARDNER DENVER | 2008185 | |
| GARDNER DENVER | 5B351 | |
| GARDNER DENVER | 2010501 | |
| GENERAL ELECTRIC | L551C4 | |
| GIESSE | AHI1046 | |
| GIF | GA401 | |
| GPC | FC439 | |
| GREYFRIARS | 290A | |
| GUARDIAN | G018065 | |
| HANOMAG TRAKTOREN | 195946216 | |
| HANOMAG TRAKTOREN | 195946746 | |
| HANOMAG TRAKTOREN | 105946216 | |
| HANOMAG TRAKTOREN | 2872998M1 | |
| HAVAM | HD7195 | |
| HITACHI | 70620717 | |
| HITACHI | 0620717 | |
| HITACHI | 0185162 | |
| HITACHI | 70185162 | |
| HITACHI | 185162 | |
| HITACHI | 620717 | |
| HUBER WARCO | 4E15267 | |
| HUBER WARCO | 4E1526 | |
| HUBER WARCO | 4E15464 | |
| INDUCONTROL | AR268 | |
| INTERNATIONAL | 313707R91 | |
| INTERNATIONAL | 313709R91 | |
| INTERNATIONAL | 383883R91 | |
| INTERNATIONAL | 383883C91 | |
| INTERNATIONAL | D58544A | |
| INTERNATIONAL | 430507R91 | |
| INTERNATIONAL | 316741C91 | |
| INTERNATIONAL | 366792C91 | |
| INTERNATIONAL | 387363C91 | |
| INTERNATIONAL | 403507R91 | |
| INTERNATIONAL | 309594R91 | |
| INTERNATIONAL | 309594C91 | |
| INTERNATIONAL | 309954C91 | |
| IVECO | 9985780 | |
| JOHN BEAN | 10913223 | |
| KENWORTH | 509666 | |
| KENWORTH | 304326 | |
| KHD | 9942863 | |
| KHD | 2164750 | |
| KIRKALDIE | KA124 | |
| KNECHT | AG205 | |
| KOMATSU | 988695 | |
| KOMATSU | D73893 | |
| KOMDRESCO SA | 73893 | |
| KRALINATOR | LA65 | |
| LEROI | 43442 | |
| LEROI | 434421 | |
| LEROI | GD2010501 | |
| LETOURNEAU | TH9177 | |
| LETOURNEAU | RK10302 | |
| LETOURNEAU | RK10301 | |
| LETOURNEAU | RK1030 | |
| LETOURNEAU | TH4723 | |
| LEYLAND-DAF (LDV) | 41004346 | |
| LEYLAND-DAF (LDV) | ABU8509 | |
| LEYLAND-DAF (LDV) | 10906231 | |
| LINK BELT | 10913223 | |
| LOCKHEED | LK3041 | |
| LOCKHEED | AP3041 | |
| LOCKHEED | AP3041A | |
| LOESING | 20943 | |
| LOESING | 020943 | |
| MASSEY FERGUSON | 195946216 | |
| MASSEY FERGUSON | 2872988M1 | |
| MASSEY FERGUSON | 2872986M1 | |
| MISFAT | 12702300 | |
| NELSON | 84457S | |
| NELSON | 70085N | |
| NELSON | P18065 | |
| NELSON WINSLOW | 18065 | |
| NELSON WINSLOW | P18065 | |
| NISSAN/UD TRUCKS | 16500F1800 | |
| NISSAN/UD TRUCKS | 16400F1800 | |
| ORENSTEIN & KOPPEL | 101002 | |
| ORENSTEIN & KOPPEL | 1499687 | |
| P.B.R. | AI3202 | |
| PAYHAULER | 313709R91 | |
| PERRY | PAK545 | |
| PERRY | PA545 | |
| PETTIBONE | A231801 | |
| POSTAS | HF1173 | |
| PURFLUX | A792 | |
| QUAKER STATE | QSA268 | |
| RAYGO | 215086 | |
| RAYGO | 207861 | |
| REFILCO | AF2865 | |
| ROMAN | R648 | |
| ROVER | 10906231 | |
| ROVER | 41004346 | |
| RYGO | 207861 | |
| SAMCOR PRETORIA | SFA413 | |
| SAVARA | 92290211 | |
| SAVARA | 92290217 | |
| SCHRAMM | MECOHJ3786 | |
| STAY READY | SRPAM1211 | |
| STAY READY | SRPAM1211K | |
| STAY READY | SRPAM18065 | |
| STAY READY | SRPA18065 | |
| STAY READY | SRPA1211 | |
| TECNO COMP | TM137 | |
| TEREX | 101002 | |
| TEREX | 82872988 | |
| TIM | 2S6610 | |
| TIM | 2S5652 | |
| TIM | 2S5698 | |
| TIM | 2S0648 | |
| TIM | 2M5522 | |
| TIM | 2M6446 | |
| TIM | 2M7941 | |
| TIM | 2M8708 | |
| TIM | 7M5979 | |
| TIM | 7M1045 | |
| TIM | 7M2045 | |
| TIM | 7M2654 | |
| TIM | 5S5652 | |
| TIM | 8M1907 | |
| TIM | 5M1840 | |
| TIM | 9M6377 | |
| TIM | 9M6379 | |
| TIM | 7M8903 | |
| TRU-AIR | TA7462 | |
| UNIPART | 10906231 | |
| UNIPART | 41004346 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 902349 | |
| UNITED ENGINE LIFE | U018065 | |
| VMC | AF119417 | |
| VME | 815127 | |
| VOLVO | 815127 | |
| WABCO | RK10301 | |
| WABCO | RK10302 | |
| WABCO | RK1030 | |
| WABCO | TH4723 | |
| WABCO | TH9177 | |
| WALGAHN-MOTORENTECHN | 00810649 | |
| WALGAHN-MOTORENTECHN | 810649 | |
| WGB | SA193 | |
| WGB | SA84 | |
| WGB | SA94 | |
| WHITE | 6DBA0330 | |
| WHITE | 9000039 | |
| WHITE | 535763 | |
| WHITE | Y535763 | |
| WHITE | Y535760 | |
| WHITE | 3103535 | |
| YALE | 2990304 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ALLIS-CHALMERS 260 | - | CONSTRUCTION EQUIPMENT | - | ALLIS-CHALMERS 16000 | - |
| ALLIS-CHALMERS 260 | - | CONSTRUCTION EQUIPMENT | - | ALLIS-CHALMERS 19000 | - |
| ALLIS-CHALMERS TR260 | - | CONSTRUCTION EQUIPMENT | - | ALLIS-CHALMERS 19000 | - |
| ALLIS-CHALMERS TR260 | - | CONSTRUCTION EQUIPMENT | - | ALLIS-CHALMERS 16000 | - |
| ALLIS-CHALMERS TS260 | - | CONSTRUCTION EQUIPMENT | - | ALLIS-CHALMERS 19000 | - |
| ALLIS-CHALMERS TS260 | - | CONSTRUCTION EQUIPMENT | - | ALLIS-CHALMERS 16000 | - |
| AVELING-BARFORD LG | - | TRACTOR | - | PERKINS 6.354 | - |
| AVELING-BARFORD LG3 | - | TRACTOR | - | PERKINS 6.354 | - |
| AVELING-BARFORD MG | - | TRACTOR | - | DETROIT DIESEL 471 | - |
| AVELING-BARFORD MGH | - | TRACTOR | - | DETROIT DIESEL 471 | - |
| AVELING-BARFORD MT | - | TRACTOR | - | DETROIT DIESEL 471 | - |
| AVELING-BARFORD SL | - | DUMP TRUCK | - | DETROIT DIESEL 4-71 | - |
| BROYT X2 | - | EXCAVATOR | - | PERKINS 6.354 | - |
| BROYT X20 | - | EXCAVATOR | - | CATERPILLAR 3304 | - |
| BROYT X20 | - | EXCAVATOR | - | CATERPILLAR 3304NA | - |
| BROYT X21 | - | EXCAVATOR | - | CATERPILLAR 3304NA | - |
| BROYT X21 | - | EXCAVATOR | - | CATERPILLAR 3304 | - |
| BROYT X21TL | - | EXCAVATOR | - | CATERPILLAR 3304 | - |
| BROYT X21TL | - | EXCAVATOR | - | CATERPILLAR 3304NA | - |
| BROYT X2B | - | EXCAVATOR | - | PERKINS 6.354 | - |
| BROYT X2M | - | EXCAVATOR | - | PERKINS 6.354 | - |
| BROYT X2T | - | EXCAVATOR | - | PERKINS 6.354 | - |
| BROYT X3 | - | EXCAVATOR | - | VOLVO D100B | - |
| BROYT X3 | - | EXCAVATOR | - | VOLVO D100A | - |
| BROYT X30 | - | EXCAVATOR | - | CATERPILLAR 3304T | - |
| BROYT X30 | - | EXCAVATOR | - | VOLVO TD70B | - |
| BROYT X30 | - | EXCAVATOR | - | VOLVO D70 | - |
| BROYT X30T | - | EXCAVATOR | - | VOLVO TD70B | - |
| BROYT X30T | - | EXCAVATOR | - | VOLVO D70 | - |
| BROYT X31 | - | EXCAVATOR | - | CATERPILLAR 3304T | - |
| BROYT X4 | - | EXCAVATOR | - | VOLVO D100B | - |
| BROYT X4 | - | EXCAVATOR | - | VOLVO D100A | - |
| BROYT X4 | - | EXCAVATOR | - | CATERPILLAR D333 | - |
| BROYT X40 | - | EXCAVATOR | - | VOLVO TD100A | - |
| BROYT X50 | - | EXCAVATOR | - | CATERPILLAR 3306 DITA | - |
| CATERPILLAR 1673B | - | ENGINE | - | - 1673B | - |
| CATERPILLAR 619B | - | SCRAPER | - | - 619B | - |
| CATERPILLAR 619C | - | SCRAPER | - | - 619C | - |
| CATERPILLAR DW21 | - | SCRAPER | - | - DW21 | - |
| CATERPILLAR G342 | - | ENGINE | - | - G342 | - |
| CATERPILLAR G342F | - | ENGINE | - | - G342F | - |
| CHICAGO PNEUMATIC 365RO-2 | - | COMPRESSOR | - | CUMMINS V504 | - |
| CHICAGO PNEUMATIC 365RO-2 | - | COMPRESSOR | - | DORMAN 4LDT | - |
| CHICAGO PNEUMATIC 365RO-2 | - | COMPRESSOR | - | LEYLAND-DAF (LDV) 410 | - |
| CHICAGO PNEUMATIC 365RO-2 | - | COMPRESSOR | - | DETROIT DIESEL 4-71 | - |
| CHICAGO PNEUMATIC 365RO-2 | - | COMPRESSOR | - | ROLLS ROYCE C4NFL | - |
| CHICAGO PNEUMATIC 600RO-2 | - | COMPRESSOR | - | CUMMINS NH220 | - |
| CHICAGO PNEUMATIC 600RO-2 | - | COMPRESSOR | - | LEYLAND-DAF (LDV) 690 | - |
| CHICAGO PNEUMATIC 600RO-2 | - | COMPRESSOR | - | ROLLS ROYCE C6NFL | - |
| CLARK 110 | - | SCRAPER | SERIES I & III | DETROIT DIESEL 6V-53 | - |
| CLARK 110HT | - | SCRAPER | - | DETROIT DIESEL - | - |
| CLARK 210 | - | SCRAPER | SERIES I | DETROIT DIESEL 8V-71 | - |
| CLARK 275A | - | LOADER WHEELED | SERIES I | DETROIT DIESEL 8V-71 | - |
| CLARK 275LKA | - | LOADER WHEELED | SERIES III | DETROIT DIESEL 12V-71 | - |
| CLARK 280 | - | DOZER WHEELED | SERIES I | DETROIT DIESEL 8V-71 | - |
| CLARK 294 | - | SCRAPER | - | - 294 | - |
| CLARK 310 | - | SCRAPER | SERIES I | DETROIT DIESEL 12V-71N | - |
| CLARK 380 | - | DOZER WHEELED | SERIES III | DETROIT DIESEL 12V-71 | - |
| CLARK 380 | - | DOZER WHEELED | SERIES II | DETROIT DIESEL 12V-71 | - |
| CLARK PACER | - | GRADER | - | DETROIT DIESEL 4-71 | - |
| CLARK SUPER 300 | - | GRADER | - | DETROIT DIESEL 4-71 | - |
| GARDNER DENVER 1200 | - | COMPRESSOR | - | CATERPILLAR D343 | - |
| GARDNER DENVER 600 | - | COMPRESSOR | - | DETROIT DIESEL 6-71 | - |
| GARDNER DENVER 600DE | - | COMPRESSOR | - | CATERPILLAR D333 | - |
| GARDNER DENVER SP1200 | - | COMPRESSOR | - | CATERPILLAR D343 | - |
| GARDNER DENVER SP1200 | - | COMPRESSOR | - | DETROIT DIESEL 6-110 | - |
| GARDNER DENVER SP900 | - | COMPRESSOR | - | CATERPILLAR D343 | - |
| GARDNER DENVER SP900 | - | COMPRESSOR | - | DETROIT DIESEL 6-71 | - |
| GARDNER DENVER SP900 | - | COMPRESSOR | - | DETROIT DIESEL 6-110 | - |
| KOMATSU D1100 | - | GRADER | - | - D1100 | - |
| KOMATSU FG35 | - | FORKLIFT | FG SERIES | ISUZU DA120-220 | DIESEL |
| TOYOTA FD33-2 | - | FORKLIFT | - | ISUZU DA 120-220 | - |
| TOYOTA FD35 | - | FORKLIFT | - | ISUZU DA120 / DA220 | - |
| TOYOTA FD50-1 | - | FORKLIFT | - | ISUZU DA120 / DA220 | - |
| TOYOTA FD60 | - | FORKLIFT | - | NISSAN SD20 | - |
