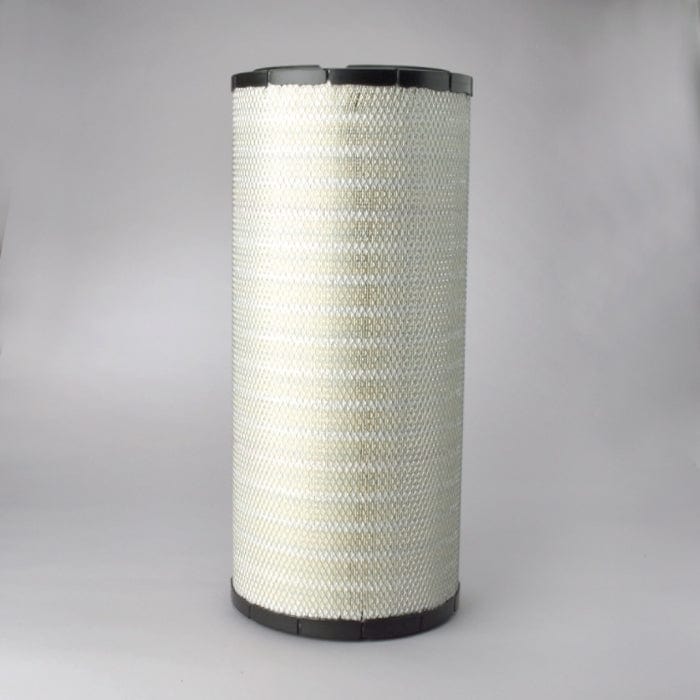

Air Filter, Primary Radialseal - Donaldson P786106

Air Filter, Primary Radialseal - Donaldson P786106

£105.28
£105.28
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P786106

Air Filter, Primary Radialseal
Outer Diameter 12.34 inch (313.4 mm)
Inner Diameter 6.99 inch (177.6 mm)
Length 27.56 inch (700 mm)
Efficiency 99.95
Efficiency Test Std ISO 5011
Type Primary
Style Radialseal
Brand RadialSeal™
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 313.4 mm (12.34 inch)
  • Inner Diameter: 177.6 mm (6.99 inch)
  • Length: 700 mm (27.56 inch)
  • Efficiency: 99.95
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Radialseal
  • Brand: RadialSeal™
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.348 m (13.90 inch)
  • Packaged Width: 0.330 m (13.20 inch)
  • Packaged Height: 0.723 m (28.90 inch)
  • Packaged Weight: 5.008 kg (11.04 lb)
  • Packaged Volume: 0.086 m3 (3.07 ft3)

Other Information

  • Country of Origin: Poland
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330205174

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 87316085
NEW HOLLAND 84443964

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
NEW HOLLAND CR960 - COMBINE CR SERIES IVECO F2BE0684A -
NEW HOLLAND CR980 - COMBINE CR SERIES IVECO F3AE0684D -
NEW HOLLAND CX8090 - COMBINE CX SERIES IVECO CURSOR 10 -
NEW HOLLAND CX880 - COMBINE CX SERIES IVECO CURSOR -
NEW HOLLAND FR9060 - HARVESTER FR SERIES IVECO CURSOR 13 TCD -
NEW HOLLAND FR9080 - HARVESTER FR SERIES CATERPILLAR C18 -
NEW HOLLAND FR9090 - HARVESTER FR SERIES IVECO VECTOR 8 -
