Air Filter, Primary Radialseal Donaldson Blue - Donaldson DBA5225

Air Filter, Primary Radialseal Donaldson Blue - Donaldson DBA5225

£29.90
£29.90
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson DBA5225

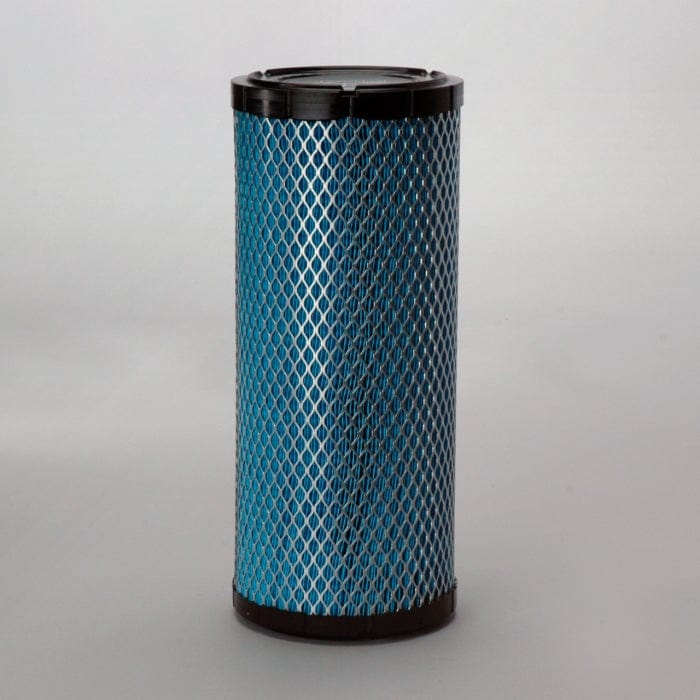

Air Filter, Primary Radialseal Donaldson Blue
Outer Diameter 5.43 inch (138 mm)
Inner Diameter 3.19 inch (81 mm)
Length 12.68 inch (322 mm)
Efficiency Up to 99.99%
Efficiency Test Std ISO 5011
Type Primary
Style Radialseal
Brand RadialSeal™
Media Brand Ultra-Web®
Media Type Ultra-Web Nanofiber
View full details

Specifications

Attributes

  • Outer Diameter: 138 mm (5.43 inch)
  • Inner Diameter: 81 mm (3.19 inch)
  • Length: 322 mm (12.68 inch)
  • Efficiency: Up to 99.99%
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Radialseal
  • Brand: RadialSeal™
  • Media Brand: Ultra-Web®
  • Media Type: Ultra-Web Nanofiber

Packaged Dimensions

  • Packaged Length: 0.52 FT
  • Packaged Width: 0.52 FT
  • Packaged Height: 1.13 FT
  • Packaged Weight: 0.772 kg (1.70 lb)
  • Packaged Volume: 0.008 m3 (0.30 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330979846

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
GEHL SL7810 - SKID STEER LOADER - PERKINS 1104C-E44T -
GEHL SL7810E - SKID STEER LOADER - CUMMINS B4.5 -
