• Donaldson Air Filter, Primary Radialseal Donaldson Blue - Donaldson DBA5116
1 1

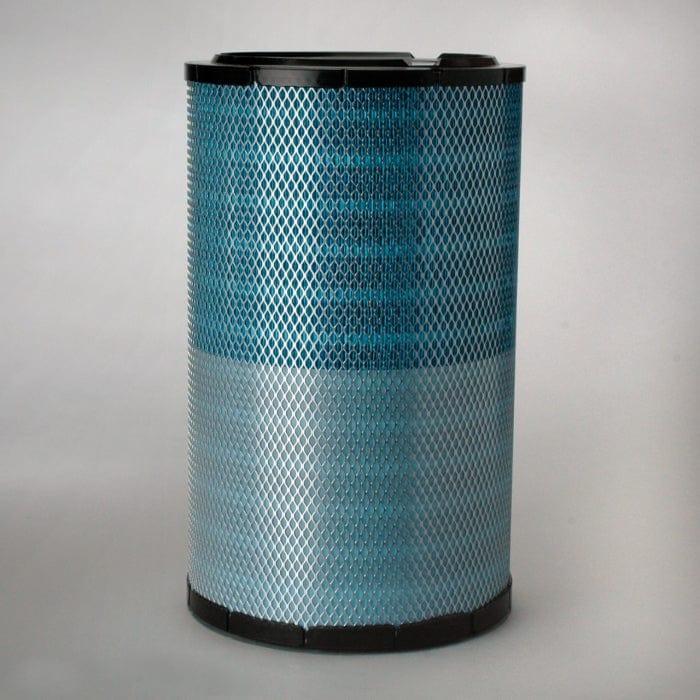

Air Filter, Primary Radialseal Donaldson Blue - Donaldson DBA5116

Air Filter, Primary Radialseal Donaldson Blue - Donaldson DBA5116

£87.78
£87.78
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson DBA5116

Air Filter, Primary Radialseal Donaldson Blue
Outer Diameter 12.34 inch (313.4 mm)
Inner Diameter 6.99 inch (177.6 mm)
Length 20.08 inch (510 mm)
Efficiency Up to 99.99%
Efficiency Test Std ISO 5011
Type Primary
Style Radialseal
Brand RadialSeal™
Media Brand Ultra-Web®
Media Type Ultra-Web Nanofiber
View full details

Specifications

Attributes

  • Outer Diameter: 313.4 mm (12.34 inch)
  • Inner Diameter: 177.6 mm (6.99 inch)
  • Length: 510 mm (20.08 inch)
  • Efficiency: Up to 99.99%
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Radialseal
  • Brand: RadialSeal™
  • Media Brand: Ultra-Web®
  • Media Type: Ultra-Web Nanofiber

Packaged Dimensions

  • Packaged Length: 0.541 m (21.65 inch)
  • Packaged Width: 0.325 m (12.99 inch)
  • Packaged Height: 0.315 m (12.60 inch)
  • Packaged Weight: 4.176 kg (9.21 lb)
  • Packaged Volume: 0.057 m3 (2.05 ft3)

Other Information

  • Country of Origin: Poland
  • HTS Code: 8421310090
  • UPC Code: 742330183816

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
IVECO 503670546

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
HITACHI LX290E-2 - LOADER WHEELED - ISUZU 6SD1 -
