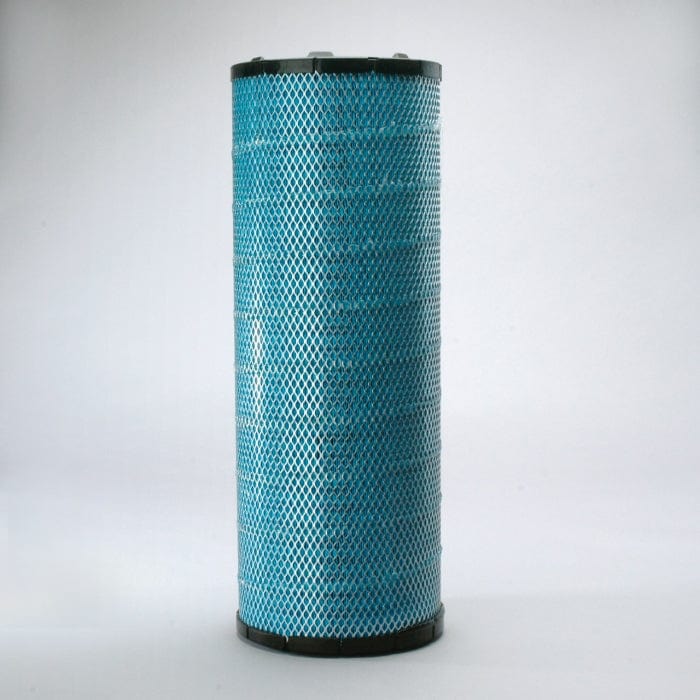

Air Filter, Primary Radialseal Donaldson Blue - Donaldson DBA5114
Air Filter, Primary Radialseal Donaldson Blue - Donaldson DBA5114
Regular price
£77.44
Regular price
Sale price
£77.44
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson DBA5114
Air Filter, Primary Radialseal Donaldson Blue| Outer Diameter | 9.33 inch (237 mm) |
| Inner Diameter | 5.79 inch (147 mm) |
| Length | 25.04 inch (636 mm) |
| Efficiency | Up to 99.99% |
| Efficiency Test Std | ISO 5011 |
| Primary Application | MACK 57MD320M |
| Type | Primary |
| Style | Radialseal |
| Brand | Donaldson BLUE® |
| Media Brand | Ultra-Web® |
| Media Type | Ultra-Web Nanofiber |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 237 mm (9.33 inch)
- Inner Diameter: 147 mm (5.79 inch)
- Length: 636 mm (25.04 inch)
Packaged Dimensions
- Packaged Length: 0.87 FT
- Packaged Width: 0.87 FT
- Packaged Height: 2.42 FT
- Packaged Weight: 3.410 kg (7.51 lb)
- Packaged Volume: 0.051 m3 (1.82 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-05
- HTS Code: 8421310090
- UPC Code: 742330143377
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| MACK | 2191P185114 | |
| MACK | 25100042 | |
| MACK | 2MD515M | |
| MACK | 57MD320M | |
| VOLVO | 85114043 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| MACK ANTHEM | 2017 - | TRUCK | - | MACK MP7 | - |
| MACK ANTHEM | 2017 - | TRUCK | - | MACK MP8 | - |
| MACK CH613 | - | TRUCK | - | MACK ASET AC | - |
| MACK CH613 | - | TRUCK | - | MACK E7 | - |
| MACK CL713 | - | TRUCK | - | CATERPILLAR 3406 | - |
| MACK CL713 | - | TRUCK | - | MACK E7 | - |
| MACK CL713 | - | TRUCK | - | CUMMINS ISX | - |
| MACK CL713 | - | TRUCK | - | MACK ASET AMI | - |
| MACK CL733 | - | TRUCK | - | CUMMINS ISX | - |
| MACK CT713 | - | TRUCK | - | MACK ASET 375 | - |
| MACK CT713 | - | TRUCK | - | CUMMINS ISM | - |
| MACK CV513 | - | TRUCK | GRANITE BRIDGE FORMULA | VOLVO ASET AMI SERIES | - |
| MACK CV513 | - | TRUCK | GRANITE BRIDGE FORMULA | VOLVO ASET AI SERIES | - |
| MACK CV713 | - | TRUCK | - | MACK E7 | - |
| MACK CV713 | - | TRUCK | - | MACK ASET AI | - |
| MACK CV713 | - | TRUCK | - | MACK ASET AMI | - |
| MACK CXP612 | - | TRUCK | - | MACK MP7 | - |
| MACK CXP613 | - | TRUCK | - | MACK MP8 | - |
| MACK CXP613 | - | TRUCK | - | MACK MP7 | - |
| MACK CXU602 | - | TRUCK | - | MACK MP8 | - |
| MACK CXU602 | - | TRUCK | - | MACK MP7 | - |
| MACK CXU603 | - | TRUCK | - | MACK MP7 | - |
| MACK CXU603 | - | TRUCK | - | MACK MP8 | - |
| MACK CXU612 | - | TRUCK | - | MACK MP8 | - |
| MACK CXU613 | - | TRUCK | - | MACK MP8 | - |
| MACK CXU613 | - | TRUCK | - | MACK MP7 | - |
| MACK GRANITE | - | TRUCK | GU | CUMMINS ISM | - |
| MACK GRANITE | 2006 - 2012 | TRUCK | - | MACK MP7 | - |
| MACK GRANITE | 2007 - 2012 | TRUCK | - | MACK MP8 | - |
| MACK GRANITE | - | TRUCK | - | MACK E9 | - |
| MACK GRANITE | - | TRUCK | - | MACK E7 | - |
| MACK GU712 | - | TRUCK | - | MACK MP7 | - |
| MACK GU713 | - | TRUCK | - | MACK MP8 | - |
| MACK GU714 | - | TRUCK | - | MACK MP7 | - |
| MACK GU803 | - | TRUCK | - | MACK MP8 | - |
| MACK GU803 | - | TRUCK | - | MACK MP7 | - |
| MACK GU813 | - | TRUCK | - | MACK MP7 | - |
| MACK GU813 | - | TRUCK | - | MACK MP8 | - |
| MACK GU814 | - | TRUCK | - | MACK MP8 | - |
| MACK GU814 | - | TRUCK | - | MACK MP7 | - |
| MACK PINNACLE | 2008 - 2018 | TRUCK | - | MACK MP7 | - |
| MACK PINNACLE | 2007 - 2018 | TRUCK | - | MACK MP8 | - |
| MACK PINNACLE | - | TRUCK | - | MACK E9 | - |
| MACK VISION | - | TRUCK | AE01 TO AE07 | MACK E7 | - |
