• Donaldson Air Filter, Primary Radialseal Donaldson Blue - Donaldson DBA5104
1 1

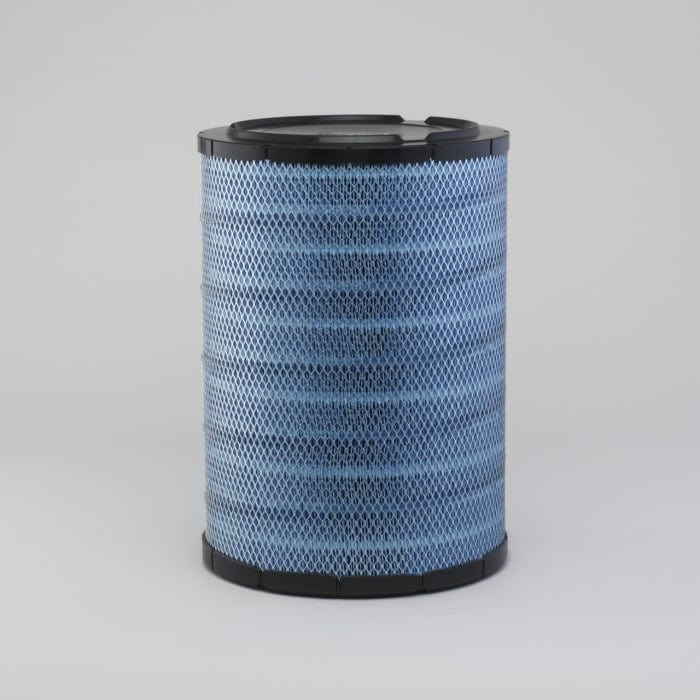

Air Filter, Primary Radialseal Donaldson Blue - Donaldson DBA5104

Air Filter, Primary Radialseal Donaldson Blue - Donaldson DBA5104

£108.92
£108.92
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson DBA5104

Air Filter, Primary Radialseal Donaldson Blue
Outer Diameter 13.09 inch (332.4 mm)
Inner Diameter 6.78 inch (172.3 mm)
Length 18.15 inch (461 mm)
Efficiency Up to 99.99%
Efficiency Test Std ISO 5011
Type Primary
Style Radialseal
Brand Donaldson BLUE®
Media Brand Ultra-Web®
Media Type Ultra-Web Nanofiber
View full details

Specifications

Attributes

  • Outer Diameter: 332.4 mm (13.09 inch)
  • Inner Diameter: 172.3 mm (6.78 inch)
  • Length: 461 mm (18.15 inch)
  • Efficiency: Up to 99.99%
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Radialseal
  • Brand: Donaldson BLUE®
  • Media Brand: Ultra-Web®
  • Media Type: Ultra-Web Nanofiber

Packaged Dimensions

  • Packaged Length: 0.340 m (13.60 inch)
  • Packaged Width: 0.343 m (13.70 inch)
  • Packaged Height: 0.485 m (19.40 inch)
  • Packaged Weight: 4.449 kg (9.80 lb)
  • Packaged Volume: 0.059 m3 (2.09 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-04
  • HTS Code: 8421310090
  • UPC Code: 742330106464
