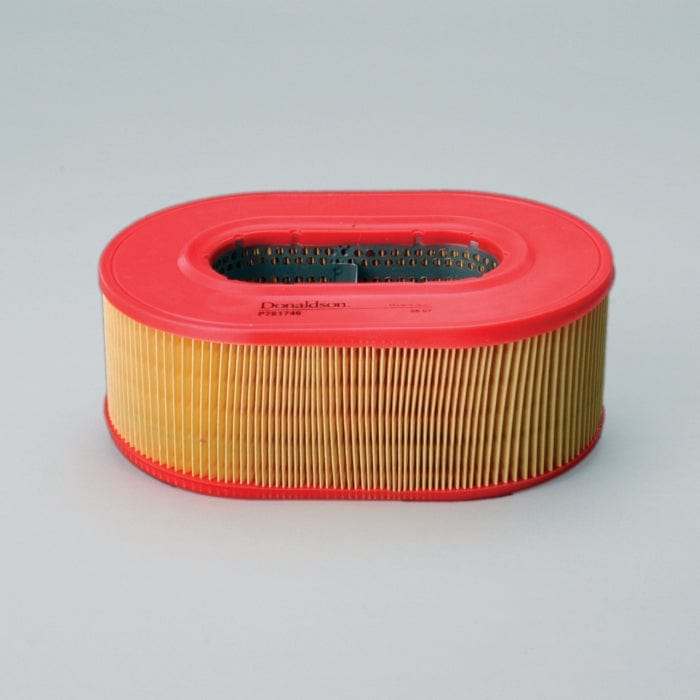

Air Filter, Primary Obround - Donaldson P781746
Air Filter, Primary Obround - Donaldson P781746
Regular price
£20.74
Regular price
Sale price
£20.74
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P781746
Air Filter, Primary ObroundShare
Collapsible content
Specifications
Attributes
- Length: 245 mm (9.65 inch)
- Width: 165 mm (6.50 inch)
- Height: 93 mm (3.66 inch)
- Efficiency Test Std: ISO 5011
- Primary Application: HATZ 952900
- Type: Primary
- Style: Obround
Packaged Dimensions
- Packaged Length: 0.167 m (6.69 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.246 m (9.84 inch)
- Packaged Weight: 0.630 kg (1.39 lb)
- Packaged Volume: 0.004 m3 (0.15 ft3)
Other Information
- Country of Origin: Türkiye
- NMFC Code: 069100-05
- HTS Code: 8421310090
- UPC Code: 742330115886
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN PARTS | 93233 | |
| BIG A | 93233 | |
| CATERPILLAR | 1G7197 | |
| CATERPILLAR | 100952900 | |
| CROSLAND | 9262 | |
| DIAMOND | DX628 | |
| GPC | FC952 | |
| GREYFRIARS | 1386A | |
| GT PIECES ET SERVICES | 2242044 | |
| HAMM | 00334049 | |
| HAMM | 334049 | |
| HATZ | 00952900 | |
| HATZ | 952900 | |
| HATZ | 9522900 | |
| HATZ | 952901 | |
| HATZ | 409529000 | |
| HAULOTTE | 2427002750 | |
| JLG | 7041557 | |
| KNECHT | AG226 | |
| KRALINATOR | LA1509 | |
| M.D.F. SARL | MDA1241 | |
| NEUSON | 110213 | |
| VERMEER | 902190005 | |
| VMC | AF781746 | |
| WIRTGEN | 45286 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR AP200B | - | PAVER | AP SERIES | HATZ 2M40 | - |
| CATERPILLAR CB224C | - | COMPACTOR | CB SERIES | HATZ 2M40L | - |
| HAMM 2.22 | - | COMPACTOR | - | HATZ 2M30 | - |
| HAMM 2K | - | COMPACTOR | - | HATZ 2M30 | - |
| HATZ 2L30C | - | ENGINE | - | - 2L30C | - |
| HATZ 2L30S | - | ENGINE | - | - 2L30S | - |
| HATZ 2L30Z | - | ENGINE | - | - 2L30Z | - |
| HATZ 2L40S | - | ENGINE | - | - 2L40S | - |
| HATZ 2L41C | - | ENGINE | - | HATZ 2L41C | - |
| HATZ 2M40 | - | ENGINE | - | - 2M40 | - |
| HATZ 2M41 | - | ENGINE | - | HATZ 2M41 | - |
| HATZ 3L30C | - | ENGINE | - | - 3L30C | - |
| HATZ 3L30S | - | ENGINE | - | - 3L30S | - |
| HATZ 3L30Z | - | ENGINE | - | HATZ 3L30Z | - |
| HATZ 3L40C | - | ENGINE | - | - 3L40C | - |
| HATZ 3L40S | - | ENGINE | - | - 3L40S | - |
| HATZ 3L41C | - | ENGINE | - | HATZ 3L41C | - |
| HATZ 3M40 | - | ENGINE | - | - 3M40 | - |
| HATZ 3M41 | - | ENGINE | - | HATZ 3M41 | - |
| HATZ 4L30C | - | ENGINE | - | - 4L30C | - |
| HATZ 4L30S | - | ENGINE | - | - 4L30S | - |
| HATZ 4L30Z | - | ENGINE | - | - 4L30Z | - |
| HATZ 4L40C | - | ENGINE | - | HATZ 4L40C | - |
| HATZ 4L40S | - | ENGINE | - | - 4L40S | - |
| HATZ 4L41K | - | ENGINE | - | HATZ 4L41K | - |
| HATZ 4M40 | - | ENGINE | - | - 4M40 | - |
| HATZ 4M41 | - | ENGINE | - | HATZ 4M41 | - |
| HATZ H2L30C | - | ENGINE | - | - H2L30C | - |
| HATZ H3L30C | - | ENGINE | - | - H3L30C | - |
| HATZ H3L30S | - | ENGINE | - | - H3L30S | - |
| HATZ H3L30Z | - | ENGINE | - | - H3L30Z | - |
| RAMMAX 2400 | - | AGRICULTURAL EQUIPMENT | - | - 2400 | - |
