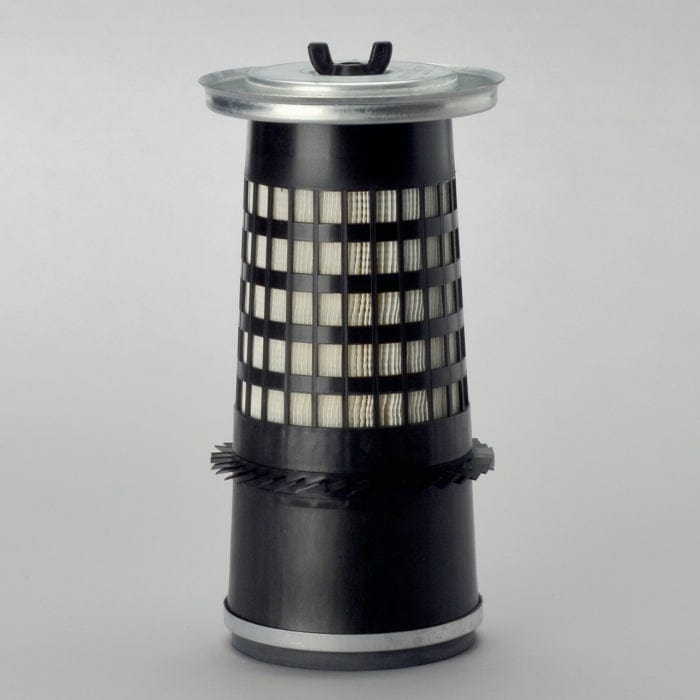

Air Filter, Primary Konepac - Donaldson P770397

Air Filter, Primary Konepac - Donaldson P770397

£49.76
£49.76
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P770397

Air Filter, Primary Konepac
View full details

Specifications

Attributes

  • Outer Diameter: 148.08 mm (5.83 inch)
  • Inner Diameter: 82 mm (3.23 inch)
  • Length: 315.47 mm (12.42 inch)
  • Minor OD: 112 mm (4.41 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Cone
  • Brand: Konepac™
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.088 m (3.50 inch)
  • Packaged Width: 0.103 m (4.10 inch)
  • Packaged Height: 0.365 m (14.60 inch)
  • Packaged Weight: 1.089 kg (2.40 lb)
  • Packaged Volume: 0.003 m3 (0.12 ft3)

Other Information

  • Country of Origin: United Kingdom
  • NMFC Code: 069100-01
  • HTS Code: 8421310090
  • UPC Code: 742330047262

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AGCO 72270880
AGCO 2270884
ALFA ROMEO 1930443
CASE/CASE IH 1930443
CATERPILLAR 3I1416
CHARDONNET 7277039700
DEUTZ 242493901
DEUTZ 242493401
DEUTZ-FAHR 242493401
DEUTZ-FAHR 242493901
FIAAM FLI6362
FIAAM FLI6663
FIAT 1930443
FODEN Y05772100
GPC FC623K
HAVAM HD9198
HITACHI 1930443
HUERLIMANN TRACTORS 242493401
HUERLIMANN TRACTORS 242493901
KHD 242493401
KHD 242493901
LAMBORGHINI 242493401
LAMBORGHINI 242493901
LOESING 021913
LOESING 21913
M.D.F. SARL MDA2961
NEW HOLLAND NP1930443
NEW HOLLAND 1930443
OLSSONS I ELLOS AB S242493401
SAME 242493401
SAME 242493901
TECNO COMP TM254
VAPORMATIC VPD7154
VMC AF770397
WALGAHN-MOTORENTECHN 811500
WALGAHN-MOTORENTECHN 00811500

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
AGCO 4650 - TRACTOR 4000 SERIES SAME 3 CYL -
AGCO 4660 - TRACTOR 4000 SERIES SAME 3 CYL -
AGCO 5650 - TRACTOR 5000 SERIES SAME 3 CYL -
AGCO 6065 - TRACTOR 6000 SERIES - 6065 -
AGCO 6670 - TRACTOR 6000 SERIES SAME 4 CYL -
AGRIFULL 50 - TRACTOR 50 SERIES FIAT 8035.05 -
AGRIFULL 50DT - TRACTOR 50 SERIES FIAT 8035.05 -
AGRIFULL 50DT - TRACTOR 50 SERIES FIAT 8035.05 -
AGRIFULL 55CF - TRACTOR 50 SERIES FIAT 8035.06 -
AGRIFULL 55CV - TRACTOR 50 SERIES FIAT 8035.06 -
AGRIFULL 55DT - TRACTOR 50 SERIES FIAT 8035.06 -
AGRIFULL 55DTT - TRACTOR 50 SERIES FIAT 8035.06 -
HUERLIMANN TRACTORS 361 - TRACTOR - PERKINS 1000.3 -
HUERLIMANN TRACTORS 361F - TRACTOR - PERKINS 1000.3 -
HUERLIMANN TRACTORS 361V - TRACTOR - PERKINS 1000.3 -
HUERLIMANN TRACTORS 361XF - TRACTOR - PERKINS 1000.3 -
HUERLIMANN TRACTORS 468 - TRACTOR - - 468 -
HUERLIMANN TRACTORS 468.4 - TRACTOR - - 468.4 -
HUERLIMANN TRACTORS H 305 XE - TRACTOR - PERKINS 1000.3AT -
HUERLIMANN TRACTORS H 306 XE - TRACTOR - PERKINS 1000.3AT -
HUERLIMANN TRACTORS H 358 PRESTIGE - TRACTOR - SAME - -
HUERLIMANN TRACTORS H 358.4 - TRACTOR - - H 358.4 -
HUERLIMANN TRACTORS H 468.4 - TRACTOR H 400 SERIES - H 468.4 -
SAME 60 EXPLORER - TRACTOR - - 60 EXPLORER -
SAME 60 II - TRACTOR - SAME 1000.3A2 -
SAME 65 C - TRACTOR - SAME 916.4A -
SAME 75C ERGOMATIC - TRACTOR - SAME 1000.4A -
SAME ASTER 60 - TRACTOR - - ASTER 60 -
SAME CORSARO 70 - TRACTOR - - CORSARO 70 -
SAME EXPLORER 55 - TRACTOR - SAME 916.3A -
SAME EXPLORER 60 - TRACTOR - - EXPLORER 60 -
SAME FRUTTETO 60 DT - TRACTOR - SAME 1000.3A -
SAME MERCURY 85 - TRACTOR - SAME 105.4P -
SAME SOLAR 50 - TRACTOR - - SOLAR 50 -
SAME VIGNERON 60 - TRACTOR - - VIGNERON 60 -
SAME VIGNERON 75 - TRACTOR - - VIGNERON 75 -
