• Donaldson Air Filter, Primary Finned - Donaldson P772587
1 1

Air Filter, Primary Finned - Donaldson P772587

Air Filter, Primary Finned - Donaldson P772587

£81.22
£81.22
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

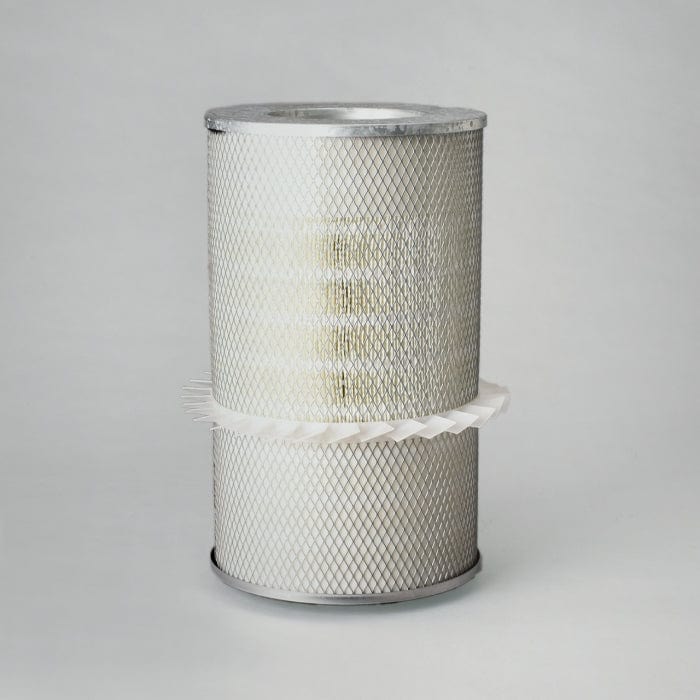

Donaldson P772587

Air Filter, Primary Finned
Outer Diameter 9.61 inch (244.2 mm)
Inner Diameter 6.04 inch (153.3 mm)
Length 15.98 inch (406 mm)
Overall Length 16.48 inch (418.7 mm)
Bolt Hole Diameter 0.65 inch (16.5 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Primary Application FIAT 1930604
Type Primary
Style Finned
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 244.2 mm (9.61 inch)
  • Inner Diameter: 153.3 mm (6.04 inch)
  • Length: 406 mm (15.98 inch)
  • Overall Length: 418.7 mm (16.48 inch)
  • Bolt Hole Diameter: 16.5 mm (0.65 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Primary Application: FIAT 1930604
  • Type: Primary
  • Style: Finned
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.323 m (12.90 inch)
  • Packaged Width: 0.325 m (13.00 inch)
  • Packaged Height: 0.430 m (17.20 inch)
  • Packaged Weight: 2.853 kg (6.29 lb)
  • Packaged Volume: 0.047 m3 (1.67 ft3)

Other Information

  • Country of Origin: Czech Republic
  • NMFC Code: 069100-06
  • HTS Code: 84213100 90
  • UPC Code: 742330048269

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 93735
CASE/CASE IH 1930604
CASE/CASE IH 1931143
FIAT 79114534
FIAT 1930604
FIAT 01930604
FODEN Y05766007
GPC FC983K
GPC FC596K
HINDLE IVER FH1930604
HITACHI 79114534
HITACHI L01930604
KRALINATOR LA1857
LOESING 021739
LOESING 21739
MINNPAR 1930604
NEW HOLLAND 1930604
NEW HOLLAND L1930604
NEW HOLLAND 01930604
TALBOT FH1930604
TODD GT 2242105
TORQUIP 1930604
VMC AF772587

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
HITACHI D180 - DOZER TRACKED - CUMMINS 6CT8.3 -
HITACHI FR160 - LOADER WHEELED - FIAT 8365T -
HITACHI FR160.2 - LOADER WHEELED FR SERIES - FR160.2 -
HITACHI W170 - LOADER WHEELED - CUMMINS 6CT8.3 -
HITACHI W190 - LOADER WHEELED - CUMMINS 6CT8.3 -
NEW HOLLAND D150 - DOZER TRACKED D SERIES CUMMINS 6BTAA5.9 -
NEW HOLLAND D180 - DOZER TRACKED D SERIES CUMMINS 6CTAA8.3 -
NEW HOLLAND D180 - DOZER TRACKED D SERIES CASE/CASE IH NEF667TA TIER 3
NEW HOLLAND DC180 - DOZER TRACKED - - DC180 -
NEW HOLLAND HYDRO 95 - TRACTOR - - HYDRO 95 -
NEW HOLLAND LW170 - LOADER WHEELED - - LW170 -
NEW HOLLAND LW190 - LOADER WHEELED - - LW190 -
NEW HOLLAND LW190B - LOADER WHEELED - - LW190B -
