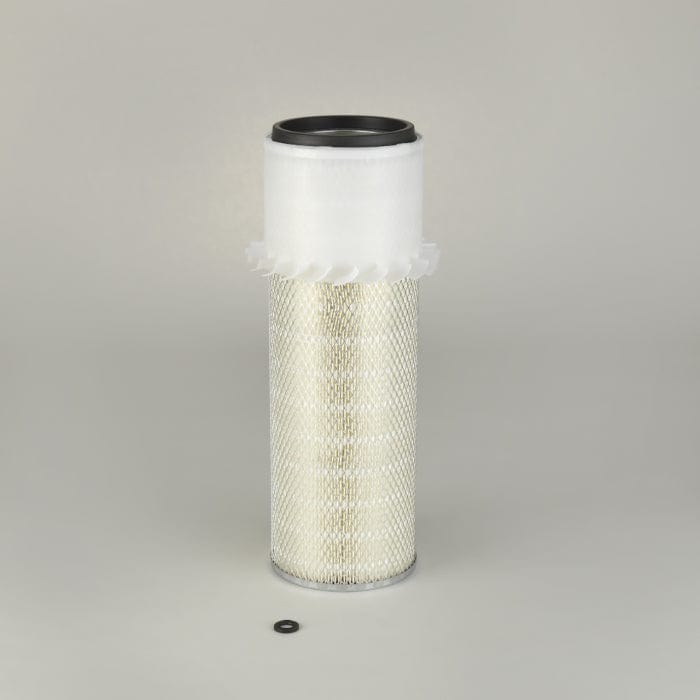

Air Filter, Primary Finned - Donaldson P533233

Air Filter, Primary Finned - Donaldson P533233

£58.06
£58.06
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P533233

Air Filter, Primary Finned
Outer Diameter 6.85 inch (174 mm)
Inner Diameter 4.24 inch (107.6 mm)
Length 20.00 inch (508 mm)
Bolt Hole Diameter 0.66 inch (16.76 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Primary Application KOBELCO 2446R255S5
Type Primary
Style Finned
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 174 mm (6.85 inch)
  • Inner Diameter: 107.6 mm (4.24 inch)
  • Length: 508 mm (20.00 inch)
  • Bolt Hole Diameter: 16.76 mm (0.66 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Primary Application: KOBELCO 2446R255S5
  • Type: Primary
  • Style: Finned
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.280 m (11.20 inch)
  • Packaged Width: 0.273 m (10.90 inch)
  • Packaged Height: 0.603 m (24.10 inch)
  • Packaged Weight: 1.998 kg (4.40 lb)
  • Packaged Volume: 0.048 m3 (1.70 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-02
  • HTS Code: 8421310090
  • UPC Code: 742330039250

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 94779
CATERPILLAR 3I2005
GPC FC663K
GPC FC663
KOBELCO 2446R255S5
KRALINATOR LA1619F
LOESING 022059
LOESING 22059

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
KOBELCO SK200LC-4 - EXCAVATOR TRACKED - CUMMINS 6BT5.9 -
KOBELCO SK210-6 - EXCAVATOR TRACKED - MITSUBISHI 6D34CT -
