• Donaldson Air Filter, Primary Finned - Donaldson P132935
1 1

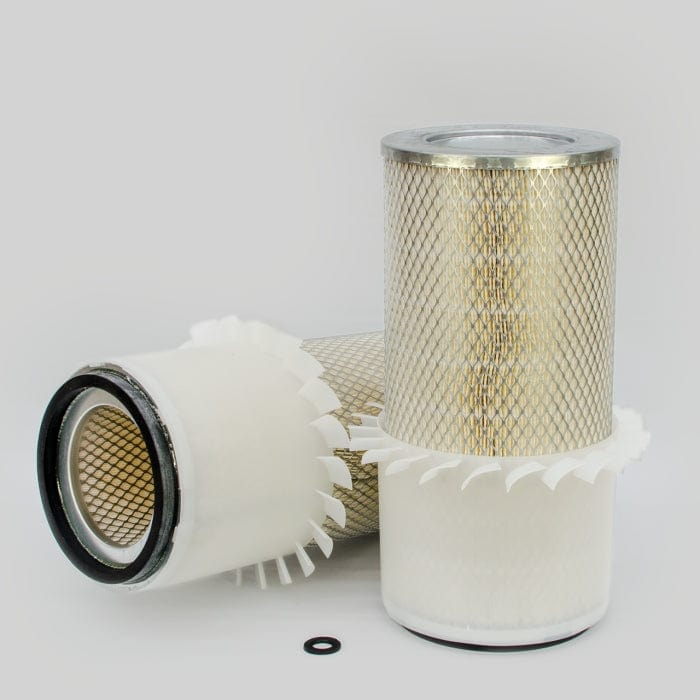

Air Filter, Primary Finned - Donaldson P132935

Air Filter, Primary Finned - Donaldson P132935

£35.62
£35.62
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P132935

Air Filter, Primary Finned
Outer Diameter 6.85 inch (174 mm)
Inner Diameter 4.22 inch (107.3 mm)
Length 14.00 inch (355.6 mm)
Minor OD 0.66 inch (16.76 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Primary Application CASE/CASE IH A47032
Type Primary
Style Finned
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 174 mm (6.85 inch)
  • Inner Diameter: 107.3 mm (4.22 inch)
  • Length: 355.6 mm (14.00 inch)
  • Minor OD: 16.76 mm (0.66 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Primary Application: CASE/CASE IH A47032
  • Type: Primary
  • Style: Finned
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.227 m (9.06 inch)
  • Packaged Width: 0.227 m (9.06 inch)
  • Packaged Height: 0.443 m (17.72 inch)
  • Packaged Weight: 1.744 kg (3.85 lb)
  • Packaged Volume: 0.024 m3 (0.84 ft3)

Other Information

  • Country of Origin: Czech Republic
  • HTS Code: 84213100 90
  • UPC Code: 742330011751

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO A578C
AC DELCO A1455C
AMERICAN MOTORS CORPORATION SFA2935PF
AMERICAN PARTS 1132
AMERICAN PARTS 1453
AMERICAN PARTS 93962
AMERICAN PARTS 94555
BERGERAT MONNOYEUR E2186
BIG A 1453
BIG A 93962
BIG A 94555
CASE/CASE IH J1950593
CASE/CASE IH A171838
CASE/CASE IH 625041C1
CASE/CASE IH A47032
CATERPILLAR 3I0279
DITCH WITCH 194754
DRESSER 625041C1
EXMAN SFA2935PF
FODEN Y05787504
FORD 9576P132935
GPC FC416K
GUARDIAN G113636
HAVAM HD2935
INTERNATIONAL 625041C1
KOMATSU 625041C1
KRALINATOR LA1143F
KRALINATOR LA589F
LOESING 21055
LOESING 021055
M.D.F. SARL MDA4291
MASSEY FERGUSON 940320M1
MCCORMICK A171838
MCCORMICK MCA47032
NELSON 84835S
NELSON 70364N
NELSON 70660N
PERRY PAK963
POCLAIN J1950593
REFILCO AF2692
VAPORMATIC VPD7126
VMC AF132935
WALGAHN-MOTORENTECHN 00811715
WALGAHN-MOTORENTECHN 811715

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CASE/CASE IH 1088 - EXCAVATOR TRACKED - - 1088 -
CASE/CASE IH 2092 - TRACTOR - CASE/CASE IH 504 -
CASE/CASE IH 210B - LAWN EQUIPMENT - CASE/CASE IH 504 -
CASE/CASE IH 211B - LAWN EQUIPMENT - CASE/CASE IH 504 -
CASE/CASE IH 5150 - TRACTOR MAXXUM CUMMINS 6BT5.9 -
CASE/CASE IH 5250 - TRACTOR 5000 MAXXUM SERIES CUMMINS 6BT5.9 -
CASE/CASE IH 621 - LOADER WHEELED - CUMMINS 6BT5.9 -
CASE/CASE IH 650 - DOZER TRACKED K SERIES CASE/CASE IH 4BT3.9 -
CASE/CASE IH 6590 - POWER UNIT - - 6590 -
CASE/CASE IH 6590T - POWER UNIT - - 6590T -
CASE/CASE IH 6590TA - POWER UNIT - - 6590TA -
CASE/CASE IH 680L - BACKHOE LOADER - CASE/CASE IH 6.590 -
CASE/CASE IH 6T-590 - ENGINE - - 6T-590 -
CASE/CASE IH 6TA-590 - ENGINE - - 6TA-590 -
CASE/CASE IH 780C - TRACTOR - CUMMINS 6BT5.9 -
CASE/CASE IH 780D - TRACTOR - - 780D -
CASE/CASE IH 850D - TRACTOR TRACKED - CASE/CASE IH A336BD -
CASE/CASE IH 850E - TRACTOR TRACKED - CUMMINS 6BT5.9 -
CASE/CASE IH 850G - TRACTOR TRACKED - CUMMINS 6BT5.9 -
CASE/CASE IH 855D - TRACTOR TRACKED - - 855D -
CASE/CASE IH 855E - TRACTOR TRACKED - CUMMINS 6BT5.9 -
CASE/CASE IH 888 - EXCAVATOR TRACKED - - 888 -
KOMATSU 100C - LOADER TRACKED - - 100C -
KOMATSU 100E - LOADER TRACKED - - 100E -
KOMATSU 125C - LOADER TRACKED - - 125C -
KOMATSU DCE8C - DOZER TRACKED - - DCE8C -
KOMATSU L100 - EARTH MOVING EQUIPMENT - - L100 -
KOMATSU TD7 - DOZER TRACKED - - TD7 -
KOMATSU TD7C - DOZER TRACKED - - TD7C -
KOMATSU TD7E - DOZER TRACKED - CASE/CASE IH D239 -
KOMATSU TD8 - DOZER TRACKED - - TD8 -
KOMATSU TD8E - DOZER TRACKED - CASE/CASE IH D239 -
KOMATSU TD8E - DOZER TRACKED - CASE/CASE IH DT239 -
