• Donaldson Air Filter, Primary Finned - Donaldson P101038
1 1

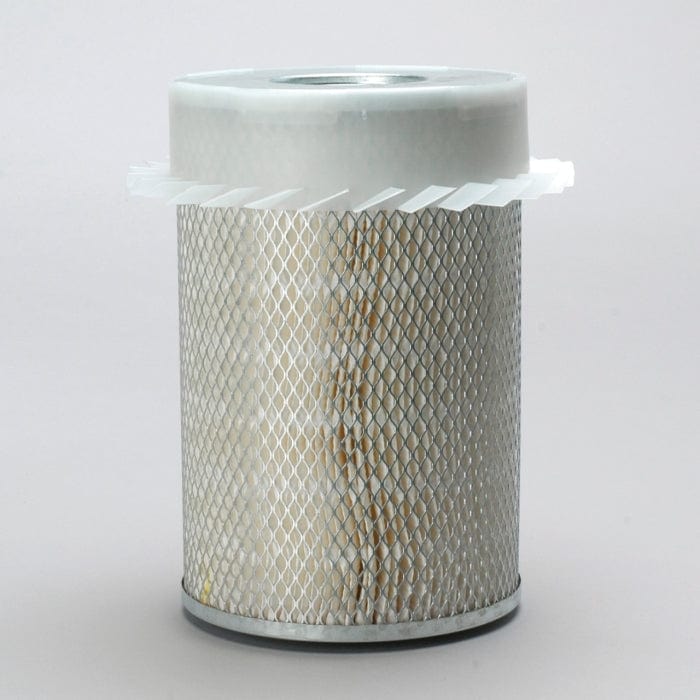

Air Filter, Primary Finned - Donaldson P101038

Air Filter, Primary Finned - Donaldson P101038

£59.08
£59.08
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P101038

Air Filter, Primary Finned
Outer Diameter 7.93 inch (201.42 mm)
Inner Diameter 3.58 inch (91 mm)
Length 12.01 inch (305 mm)
Minor OD 0.51 inch (13 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Family FWB
Type Primary
Style Finned
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 201.42 mm (7.93 inch)
  • Inner Diameter: 91 mm (3.58 inch)
  • Length: 305 mm (12.01 inch)

Packaged Dimensions

  • Packaged Length: 0.288 m (11.50 inch)
  • Packaged Width: 0.288 m (11.50 inch)
  • Packaged Height: 0.331 m (13.25 inch)
  • Packaged Weight: 1.811 kg (3.99 lb)
  • Packaged Volume: 0.028 m3 (1.01 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-02
  • HTS Code: 8421310090
  • UPC Code: 742330007082

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO A514C
ALLISON 5197619
AMERICAN PARTS 989
AMERICAN PARTS 433
BIG A 433
BIG A 93139
BIG A 989
CATERPILLAR 3I0035
CHAMP LAF1038
CHARDONNET 7210103800
CLEAN MA713
DELUXE AFK698
DELUXE K698AIR
DELUXE K698
DELUXE 698
DETROIT DIESEL 5197619
DETROIT DIESEL 05197619
DIAMOND DX503
GPC FC285
GPC FC380K
GUARDIAN G101038
GUARDIAN G430532
HANOMAG TRAKTOREN 194946169
HAVAM HD5405
KRALINATOR LA136F
MASSEY FERGUSON 2871949M1
MURPHY 2MD24718
MURPHY MD24575
MURPHY MD24618
NELSON 101038
NELSON 70690N
NELSON WINSLOW 101038
PERRY PA698
PERRY PAK698
QUAKER STATE QSAK532
UNITED ENGINE LIFE U01038K
VMC AF101038
WABCO VP3105
WALGAHN-MOTORENTECHN 810418
WALGAHN-MOTORENTECHN 00810418
