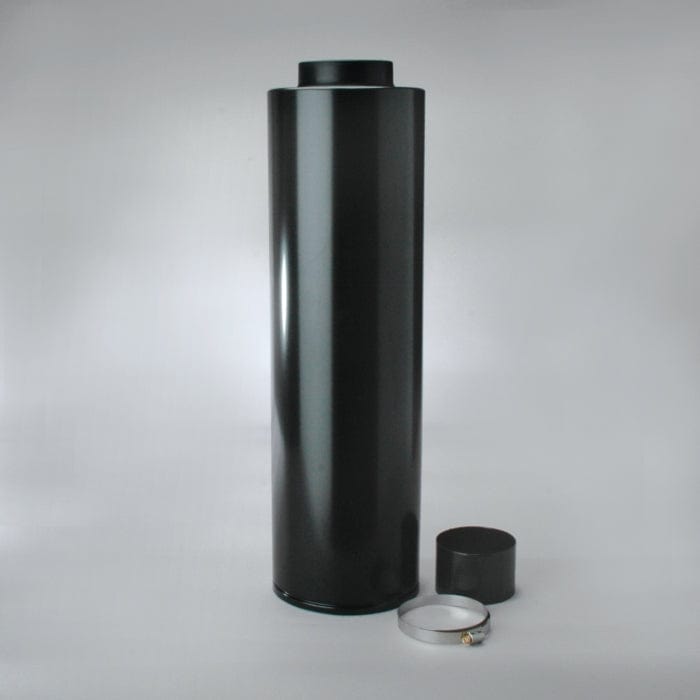

Air Filter, Primary Duralite - Donaldson X770088
Air Filter, Primary Duralite - Donaldson X770088
Regular price
£76.92
Regular price
Sale price
£76.92
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson X770088
Air Filter, Primary Duralite| Outlet Diameter | 4.17 inch (106 mm) |
| Body Diameter Maximum | 7.76 inch (197 mm) |
| Body Length | 25.79 inch (655 mm) |
| Rated Flow LR | 332 cfm (9.4 m³/min) |
| Rated Flow MR | 494 cfm (14 m³/min) |
| Rated Flow HR | 565 cfm (16 m³/min) |
| Restriction LR | 5.98 inch H2O (152 mm H2O) |
| Restriction MR | 7.99 inch H2O (203 mm H2O) |
| Restriction HR | 10.00 inch H2O (254 mm H2O) |
| Primary Application | VOLVO 823701 |
| Type | Primary |
| Style | Round |
| Brand | DuraLite™ |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outlet Diameter: 106 mm (4.17 inch)
- Body Diameter Maximum: 197 mm (7.76 inch)
- Body Length: 655 mm (25.79 inch)
Packaged Dimensions
- Packaged Length: 0.250 m (10.00 inch)
- Packaged Width: 0.238 m (9.50 inch)
- Packaged Height: 0.735 m (29.40 inch)
- Packaged Weight: 4.393 kg (9.69 lb)
- Packaged Volume: 0.045 m3 (1.62 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-05
- HTS Code: 8421310090
- UPC Code: 742330081129
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A1436C | |
| AMERICAN PARTS | 94920 | |
| AMERICAN PARTS | 1561 | |
| BIG A | 94920 | |
| BROYT | 5905113 | |
| CROSLAND | 9671K | |
| CROSLAND | 9671 | |
| GPC | FC803 | |
| GREYFRIARS | 1374A | |
| GT PIECES ET SERVICES | 2242952 | |
| HAVAM | HD1998 | |
| KALMAR | 4285 | |
| KRALINATOR | LA1024 | |
| LINDE | E780001043 | |
| LOESING | 020791 | |
| LOESING | 20791 | |
| NELSON | 70596S | |
| OLSSONS I ELLOS AB | X770088003710 | |
| RENAULT VI | 5000682145 | |
| SDMO | 330560107 | |
| VALMET | 800022999 | |
| VMC | AF770088 | |
| VOLVO | AF4100 | |
| VOLVO | 68152010 | |
| VOLVO | 3825778 | |
| VOLVO | 38257788 | |
| VOLVO | 823701 | |
| VOLVO | 8237018 | |
| VOLVO | 110338381 | |
| VOLVO | 11033838 | |
| WALGAHN-MOTORENTECHN | 811742 | |
| WALGAHN-MOTORENTECHN | 00811742 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AKERMAN H10 | - | EXCAVATOR | - | VOLVO TD60B | - |
| AKERMAN H10 | - | EXCAVATOR | - | VOLVO TD61ACE | - |
| AKERMAN H10B | - | EXCAVATOR | - | VOLVO TD60B | - |
| AKERMAN H10B | - | EXCAVATOR | - | VOLVO TD61ACE | - |
| AKERMAN H10LC | - | EXCAVATOR | - | VOLVO TD60B | - |
| AKERMAN H10LC | - | EXCAVATOR | - | VOLVO TD61ACE | - |
| AKERMAN H10M | - | EXCAVATOR | - | VOLVO TD60B | - |
| AKERMAN H10M | - | EXCAVATOR | - | VOLVO TD61ACE | - |
| AKERMAN H10MB | - | EXCAVATOR | - | VOLVO TD60B | - |
| AKERMAN H10MB | - | EXCAVATOR | - | VOLVO TD61ACE | - |
| AKERMAN H11 | - | EXCAVATOR | - | VOLVO D70A | - |
| AKERMAN H11B | - | EXCAVATOR | - | VOLVO TD70B | - |
| AKERMAN H12 | - | EXCAVATOR | - | VOLVO TD70 | - |
| AKERMAN H12 | - | EXCAVATOR | - | VOLVO TD70B | - |
| AKERMAN H12 | - | EXCAVATOR | - | VOLVO TD70G | - |
| AKERMAN H12B | - | EXCAVATOR | - | VOLVO TD70 | - |
| AKERMAN H12B | - | EXCAVATOR | - | VOLVO TD70B | - |
| AKERMAN H12B | - | EXCAVATOR | - | VOLVO TD70G | - |
| AKERMAN H14 | - | EXCAVATOR | - | VOLVO D100 | - |
| AKERMAN H14 | - | EXCAVATOR | - | VOLVO TD100A | - |
| AKERMAN H14 | - | EXCAVATOR | - | VOLVO TD100B | - |
| AKERMAN H14B | - | EXCAVATOR | - | VOLVO D100 | - |
| AKERMAN H14B | - | EXCAVATOR | - | VOLVO TD100A | - |
| AKERMAN H14B | - | EXCAVATOR | - | VOLVO TD100B | - |
| AKERMAN H14B | - | EXCAVATOR | - | VOLVO TD71ACE | - |
| AKERMAN H14BLC | - | EXCAVATOR | - | VOLVO TD71ACE | - |
| AKERMAN H16 | - | EXCAVATOR | - | VOLVO TD100A | - |
| AKERMAN H16 | - | EXCAVATOR | - | VOLVO TD100B | - |
| AKERMAN H16 | - | EXCAVATOR | - | VOLVO TD100G | - |
| AKERMAN H16B | - | EXCAVATOR | - | VOLVO TD100A | - |
| AKERMAN H16B | - | EXCAVATOR | - | VOLVO TD100B | - |
| AKERMAN H16B | - | EXCAVATOR | - | VOLVO TD100G | - |
| AKERMAN H16C | - | EXCAVATOR | - | VOLVO TD100A | - |
| AKERMAN H16C | - | EXCAVATOR | - | VOLVO TD100B | - |
| AKERMAN H16C | - | EXCAVATOR | - | VOLVO TD100G | - |
| AKERMAN H16D | - | EXCAVATOR | - | VOLVO TD100B | - |
| AKERMAN H16D | - | EXCAVATOR | - | VOLVO TD100G | - |
| AKERMAN H21 | - | EXCAVATOR | - | VOLVO TD100A | - |
| AKERMAN H21 | - | EXCAVATOR | - | VOLVO TD100B | - |
| AKERMAN H25 | - | EXCAVATOR | - | VOLVO TD120B | - |
| AKERMAN H25 | - | EXCAVATOR | - | VOLVO TD121G | - |
| AKERMAN H25B | - | EXCAVATOR | - | VOLVO TD120B | - |
| AKERMAN H25B | - | EXCAVATOR | - | VOLVO TD121G | - |
| AKERMAN H25C | - | EXCAVATOR | - | VOLVO TD120B | - |
| AKERMAN H25C | - | EXCAVATOR | - | VOLVO TD120FC | - |
| AKERMAN H25C | - | EXCAVATOR | - | VOLVO TD121G | - |
| AKERMAN H7 | - | EXCAVATOR | - | VOLVO TD60B | - |
| AKERMAN H7 | - | EXCAVATOR | - | VOLVO TD61ACE | - |
| AKERMAN H7BLC | - | EXCAVATOR | - | VOLVO TD60B | - |
| AKERMAN H7BLC | - | EXCAVATOR | - | VOLVO TD61ACE | - |
| AKERMAN H7C | - | EXCAVATOR | - | VOLVO TD60B | - |
| AKERMAN H7C | - | EXCAVATOR | - | VOLVO TD61ACE | - |
| AKERMAN H7M | - | EXCAVATOR | - | VOLVO TD60B | - |
| AKERMAN H7M | - | EXCAVATOR | - | VOLVO TD61ACE | - |
| AKERMAN H7MB | - | EXCAVATOR | - | VOLVO TD60B | - |
| AKERMAN H7MB | - | EXCAVATOR | - | VOLVO TD61ACE | - |
| AKERMAN H7MC | - | EXCAVATOR | - | VOLVO TD60B | - |
| AKERMAN H7MC | - | EXCAVATOR | - | VOLVO TD61ACE | - |
| AKERMAN H9 | - | EXCAVATOR | - | VOLVO D70A | - |
| AKERMAN H9 | - | EXCAVATOR | - | VOLVO TD60A | - |
| AKERMAN H9B | - | EXCAVATOR | - | VOLVO TD60A | - |
| AKERMAN H9BLC | - | EXCAVATOR | - | VOLVO TD60A | - |
| AKERMAN H9BLC | - | EXCAVATOR | - | VOLVO TD60B | - |
| AKERMAN H9BLC | - | EXCAVATOR | - | VOLVO TD61ACE | - |
| AKERMAN H9M | - | EXCAVATOR | - | VOLVO TD60A | - |
| AKERMAN H9MB | - | EXCAVATOR | - | VOLVO TD60A | - |
| AKERMAN H9T | - | EXCAVATOR | - | VOLVO TD60A | - |
| KALMAR 23.6-1200 | - | FORKLIFT | - | VOLVO TD100A | - |
| KALMAR 25-1200 | - | FORKLIFT | - | VOLVO TD100A | - |
| VOLVO D60A | - | ENGINE | - | - D60A | - |
| VOLVO TD100GPP | - | ENGINE | - | - TD100GPP | - |
| VOLVO TD120E | - | ENGINE | - | - TD120E | - |
| VOLVO TD120HD | - | ENGINE | - | - TD120HD | - |
| VOLVO TD121 | - | ENGINE | - | - TD121 | - |
| VOLVO TD60D | - | ENGINE | - | - TD60D | - |
| VOLVO TD61A | - | ENGINE | - | - TD61A | - |
| VOLVO TD61AG | - | ENGINE | - | - TD61AG | - |
| VOLVO TD61AP | - | ENGINE | - | - TD61AP | - |
| VOLVO TD61AW | - | ENGINE | - | - TD61AW | - |
| VOLVO TID100KG | - | ENGINE | - | - TID100KG | - |
| VOLVO TID100KPP | - | ENGINE | - | - TID100KPP | - |
| VOLVO TID162 | - | ENGINE | - | - TID162 | - |
| VOLVO TID71AG | - | ENGINE | - | - TID71AG | - |
