• Donaldson Air Filter, Primary Duralite - Donaldson C125017
1 1

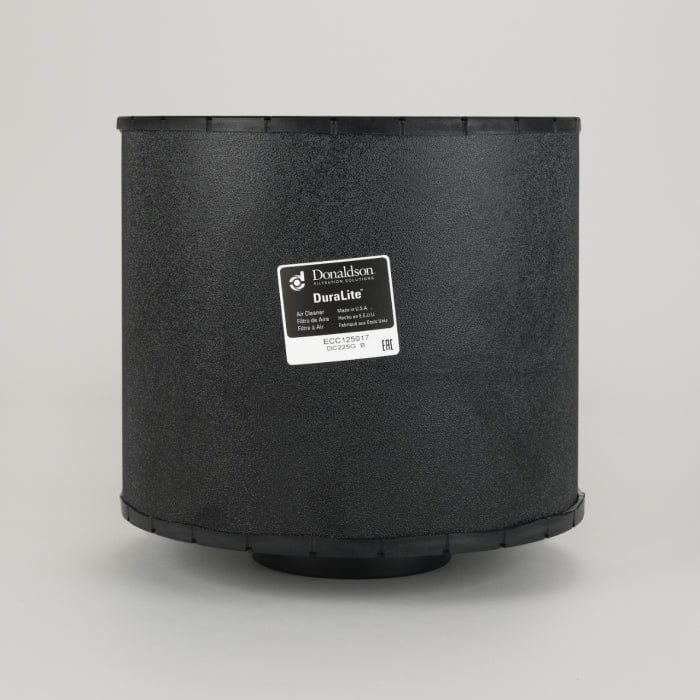

Air Filter, Primary Duralite - Donaldson C125017

Air Filter, Primary Duralite - Donaldson C125017

£110.20
£110.20
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson C125017

Air Filter, Primary Duralite
View full details

Specifications

Attributes

  • Outlet Diameter: 127 mm (5.00 inch)
  • Body Diameter Maximum: 317.5 mm (12.50 inch)
  • Body Length: 279.6 mm (11.01 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Rated Flow LR: 19 m³/min (671 cfm)
  • Rated Flow MR: 23.5 m³/min (830 cfm)
  • Rated Flow HR: 26.9 m³/min (950 cfm)
  • Restriction LR: 102 mm H2O (4.02 inch H2O)
  • Restriction MR: 152 mm H2O (5.98 inch H2O)
  • Restriction HR: 203 mm H2O (7.99 inch H2O)
  • Family: ECC
  • Type: Primary
  • Style: Round
  • Brand: DuraLite™
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.328 m (13.10 inch)
  • Packaged Width: 0.338 m (13.50 inch)
  • Packaged Height: 0.338 m (13.50 inch)
  • Packaged Weight: 2.388 kg (5.26 lb)
  • Packaged Volume: 0.039 m3 (1.38 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421310090
  • UPC Code: 742330108567

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
JOHN DEERE RE64564
