• Donaldson Air Filter, Primary Duralite - Donaldson C105017
1 1

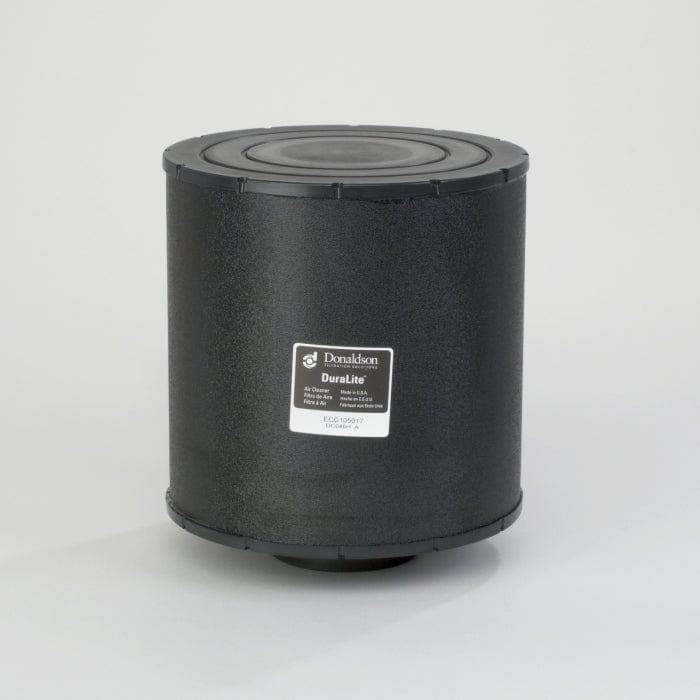

Air Filter, Primary Duralite - Donaldson C105017

Air Filter, Primary Duralite - Donaldson C105017

£97.24
£97.24
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson C105017

Air Filter, Primary Duralite
Outlet Diameter 4.00 inch (101.6 mm)
Body Diameter Maximum 10.50 inch (266.7 mm)
Body Length 10.51 inch (267 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Rated Flow LR 399 cfm (11.3 m³/min)
Rated Flow MR 501 cfm (14.2 m³/min)
Rated Flow HR 622 cfm (17.6 m³/min)
Restriction LR 4.02 inch H2O (102 mm H2O)
Restriction MR 5.98 inch H2O (152 mm H2O)
Restriction HR 7.99 inch H2O (203 mm H2O)
Family ECC
Type Primary
Style Round
Brand DuraLite™
Media Type Cellulose
View full details

Specifications

Attributes

  • Outlet Diameter: 101.6 mm (4.00 inch)
  • Body Diameter Maximum: 266.7 mm (10.50 inch)
  • Body Length: 267 mm (10.51 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Rated Flow LR: 11.3 m³/min (399 cfm)
  • Rated Flow MR: 14.2 m³/min (501 cfm)
  • Rated Flow HR: 17.6 m³/min (622 cfm)
  • Restriction LR: 102 mm H2O (4.02 inch H2O)
  • Restriction MR: 152 mm H2O (5.98 inch H2O)
  • Restriction HR: 203 mm H2O (7.99 inch H2O)
  • Family: ECC
  • Type: Primary
  • Style: Round
  • Brand: DuraLite™
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.270 m (10.80 inch)
  • Packaged Width: 0.275 m (11.00 inch)
  • Packaged Height: 0.323 m (12.90 inch)
  • Packaged Weight: 1.905 kg (4.20 lb)
  • Packaged Volume: 0.025 m3 (0.89 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-04
  • HTS Code: 8421310090
  • UPC Code: 742330001035

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
JOHN DEERE RE63780
PIVOT POWER INC 44C105017
