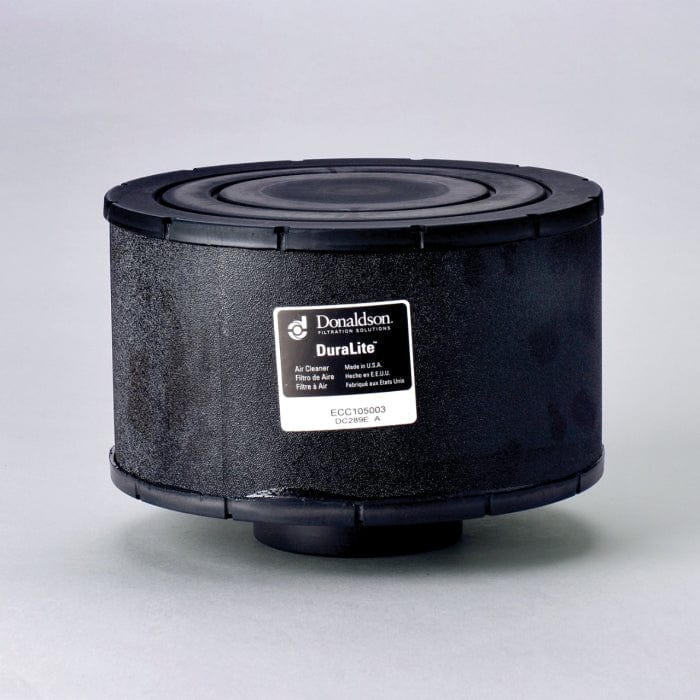

Air Filter, Primary Duralite - Donaldson C105003

Air Filter, Primary Duralite - Donaldson C105003

£53.16
£53.16
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson C105003

Air Filter, Primary Duralite
Outlet Diameter 3.93 inch (99.82 mm)
Body Diameter Maximum 10.50 inch (266.7 mm)
Body Length 6.00 inch (152.4 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Rated Flow LR 325 cfm (9.2 m³/min)
Rated Flow MR 399 cfm (11.3 m³/min)
Rated Flow HR 480 cfm (13.6 m³/min)
Restriction LR 4.02 inch H2O (102 mm H2O)
Restriction MR 5.98 inch H2O (152 mm H2O)
Restriction HR 7.99 inch H2O (203 mm H2O)
Family ECC
Primary Application LEROI 438673
Type Primary
Style Round
Brand DuraLite™
Media Type Cellulose
View full details

Specifications

Attributes

  • Outlet Diameter: 99.82 mm (3.93 inch)
  • Body Diameter Maximum: 266.7 mm (10.50 inch)
  • Body Length: 152.4 mm (6.00 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Rated Flow LR: 9.2 m³/min (325 cfm)
  • Rated Flow MR: 11.3 m³/min (399 cfm)
  • Rated Flow HR: 13.6 m³/min (480 cfm)
  • Restriction LR: 102 mm H2O (4.02 inch H2O)
  • Restriction MR: 152 mm H2O (5.98 inch H2O)
  • Restriction HR: 203 mm H2O (7.99 inch H2O)
  • Family: ECC
  • Primary Application: LEROI 438673
  • Type: Primary
  • Style: Round
  • Brand: DuraLite™
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.276 m (11.02 inch)
  • Packaged Width: 0.276 m (11.02 inch)
  • Packaged Height: 0.207 m (8.27 inch)
  • Packaged Weight: 1.400 kg (3.09 lb)
  • Packaged Volume: 0.016 m3 (0.58 ft3)

Other Information

  • Country of Origin: Czech Republic
  • HTS Code: 8421310090
  • UPC Code: 742330001011

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO A1475C
BELL ECC105003
BIG A 93791
CASE/CASE IH NX14210070
CATERPILLAR 160401
CATERPILLAR 3I0020
DITCH WITCH 103370
DMT CORPORATION 531756
DMT CORPORATION 2531756
FREIGHTLINER DNC105003
GENERAC C2725
HAVAM HD1886
HOBART 283131
HURRICANE COMPRESSOR 61155
HURRICANE COMPRESSOR 63759
JOHN DEERE RE63779A
JOHN DEERE RE503852
KRALINATOR LA15881
KRALINATOR LA1588
LECHMOTOREN 105020061
LEROI 438673
LEROI 438373
LINDENBERG-ANLAGEN MDONECC105003
LOESING 020421
LOESING 20421
ORENSTEIN & KOPPEL 1101226
PERKINS 33500756
SDMO 30801088301
SDMO 330570002
SULLIVAN PALATEK 28174111
SULLIVAN PALATEK 28174325
TEREX 1101226
VMC AH105003
WALGAHN-MOTORENTECHN 00810056
WALGAHN-MOTORENTECHN 810056
