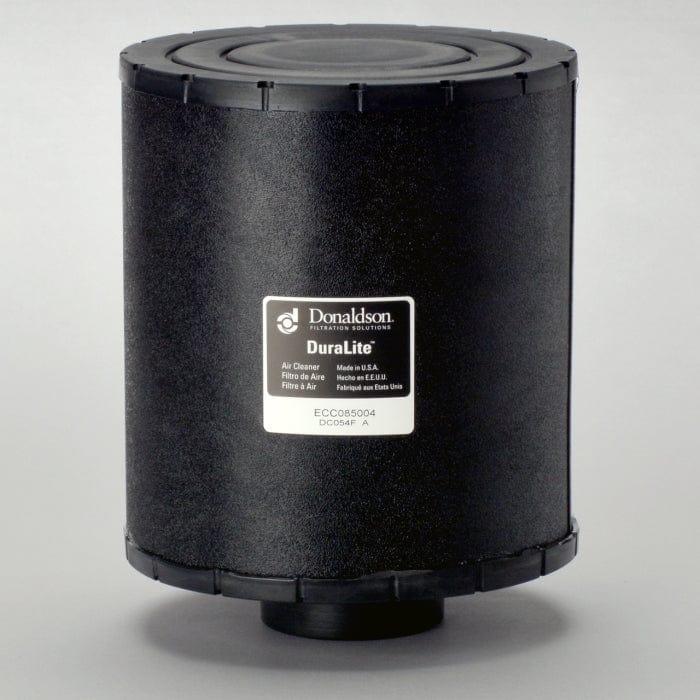

Air Filter, Primary Duralite - Donaldson C085004
Air Filter, Primary Duralite - Donaldson C085004
Regular price
£46.62
Regular price
Sale price
£46.62
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson C085004
Air Filter, Primary Duralite| Outlet Diameter | 3.00 inch (76.2 mm) |
| Body Diameter Maximum | 8.50 inch (215.9 mm) |
| Body Length | 9.50 inch (241.3 mm) |
| Efficiency Test Std | ISO 5011 |
| Rated Flow LR | 170 cfm (4.8 m³/min) |
| Rated Flow MR | 205 cfm (5.8 m³/min) |
| Rated Flow HR | 244 cfm (6.9 m³/min) |
| Restriction LR | 4.02 inch H2O (102 mm H2O) |
| Restriction MR | 5.98 inch H2O (152 mm H2O) |
| Restriction HR | 7.99 inch H2O (203 mm H2O) |
| Family | ECC |
| Type | Primary |
| Style | Round |
| Brand | DuraLite™ |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outlet Diameter: 76.2 mm (3.00 inch)
- Body Diameter Maximum: 215.9 mm (8.50 inch)
- Body Length: 241.3 mm (9.50 inch)
Packaged Dimensions
- Packaged Length: 0.215 m (8.58 inch)
- Packaged Width: 0.215 m (8.58 inch)
- Packaged Height: 0.293 m (11.70 inch)
- Packaged Weight: 1.330 kg (2.93 lb)
- Packaged Volume: 0.016 m3 (0.58 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-05
- HTS Code: 8421310090
- UPC Code: 742330000960
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ASSOCIATE AUTOMOTIVE | GP17OP | |
| ATLAS COPCO | 1310250345 | |
| BIG A | 94314 | |
| BOSS INDUSTRIES | 305639 | |
| CASE/CASE IH | NX14210064 | |
| CATERPILLAR | 3I0017 | |
| CHARDONNET | 7308500400 | |
| CLARK | 110332145 | |
| COMPAIR | 438672 | |
| COMPAIR | CZ438672 | |
| CUMMINS | 3908719 | |
| CUMMINS | CDD000001 | |
| DEUTZ | 305283 | |
| DITCH WITCH | 153495A | |
| DITCH WITCH | 153495 | |
| DITCH WITCH | ECC085004 | |
| DMT CORPORATION | 100554 | |
| DMT CORPORATION | I00554 | |
| DMT CORPORATION | 531752 | |
| DMT CORPORATION | 2531752 | |
| DONSSON | DA7801 | |
| EUCLID | 11033214 | |
| FIAT | 8007965 | |
| FORD | 9576C085004 | |
| FREIGHTLINER | DNC085004 | |
| GREYFRIARS | 1510A | |
| HANOMAG TRAKTOREN | 42506H4190 | |
| HAVAM | HD1882 | |
| HIMOINSA | 3031797 | |
| ISUZU | X14210048 | |
| IVECO | 8007965 | |
| JOHN DEERE | RE504073 | |
| KRALINATOR | LA1436 | |
| KUKJE | YGT00135 | |
| LECHMOTOREN | 105020046 | |
| LEROI | 438672 | |
| LISTER PETTER | 00003044 | |
| LISTER PETTER | 3044 | |
| LOESING | 021789 | |
| LOESING | 21789 | |
| M.D.F. SARL | MDA3381 | |
| MACO-MEUDON COMPRESSORS | 529849 | |
| NATO (NSN) | 2940013321662 | |
| OSHKOSH | 2HB912 | |
| RAINBOW MANUFACTURING | 15627 | |
| RENAULT VI | 5000674688 | |
| SDMO | 30801011203 | |
| SULLAIR | 529849 | |
| SULLAIR | 68529849 | |
| TAYLOR | VTECC085004 | |
| VMC | AH85004 | |
| VME | 11033214 | |
| VOLVO | 11033214 | |
| VOLVO | VOE11033214 | |
| WALGAHN-MOTORENTECHN | 00810055 | |
| WALGAHN-MOTORENTECHN | 810055 | |
| WORTHINGTON | 104595 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| DITCH WITCH FX30 | - | TRENCHER | - | - FX30 | - |
| SDMO J75UC | - | GENERATOR SET | - | JOHN DEERE 4045T | - |
| SDMO J80U | - | GENERATOR SET | - | JOHN DEERE 4045T | - |
| VOLVO CONSTRUCTION EQUIPMENT L110E | - | LOADER WHEELED | L SERIES | VOLVO D7D | - |
| VOLVO CONSTRUCTION EQUIPMENT L110F | - | LOADER WHEELED | L SERIES | VOLVO D7E240 | - |
| VOLVO CONSTRUCTION EQUIPMENT L120C | - | LOADER WHEELED | L SERIES | VOLVO TAD73E | - |
| VOLVO CONSTRUCTION EQUIPMENT L120D | - | LOADER WHEELED | L SERIES | VOLVO TAD73E | - |
| VOLVO CONSTRUCTION EQUIPMENT L120E | - | LOADER WHEELED | L SERIES | VOLVO D7E240 | - |
| VOLVO CONSTRUCTION EQUIPMENT L120F | - | LOADER WHEELED | L SERIES | VOLVO D7E240 | - |
| VOLVO CONSTRUCTION EQUIPMENT L150C | - | LOADER WHEELED | L SERIES | VOLVO THD102 | - |
| VOLVO CONSTRUCTION EQUIPMENT L150D | - | LOADER WHEELED | L SERIES | VOLVO TD101 | - |
| VOLVO CONSTRUCTION EQUIPMENT L150E | - | LOADER WHEELED | L SERIES | VOLVO D12D340 | - |
| VOLVO CONSTRUCTION EQUIPMENT L150F | - | LOADER WHEELED | L SERIES | VOLVO D12D340 | - |
| VOLVO CONSTRUCTION EQUIPMENT L150G | - | LOADER WHEELED | L SERIES | VOLVO D13H-E | TIER 4 |
| VOLVO CONSTRUCTION EQUIPMENT L180C | - | LOADER WHEELED | L SERIES | VOLVO TD122 | - |
| VOLVO CONSTRUCTION EQUIPMENT L180D | - | LOADER WHEELED | L SERIES | VOLVO TD122 | - |
| VOLVO CONSTRUCTION EQUIPMENT L180E | - | LOADER WHEELED | L SERIES | VOLVO D12C380 | - |
| VOLVO CONSTRUCTION EQUIPMENT L180F | - | LOADER WHEELED | L SERIES | VOLVO D12D340 | - |
| VOLVO CONSTRUCTION EQUIPMENT L220E | - | LOADER WHEELED | L SERIES | VOLVO D12C380 | - |
| VOLVO CONSTRUCTION EQUIPMENT L220F | - | LOADER WHEELED | L SERIES | VOLVO D12C380 | - |
| VOLVO CONSTRUCTION EQUIPMENT L330E | - | LOADER WHEELED | L SERIES | VOLVO D16A520 | - |
| VOLVO CONSTRUCTION EQUIPMENT L350F | - | LOADER WHEELED | L SERIES | VOLVO D16E | - |
| VOLVO CONSTRUCTION EQUIPMENT L60E | - | LOADER WHEELED | L SERIES | VOLVO D6A180 | - |
| VOLVO CONSTRUCTION EQUIPMENT L60F | - | LOADER WHEELED | L SERIES | VOLVO D6E | - |
| VOLVO CONSTRUCTION EQUIPMENT L70C | - | LOADER WHEELED | L SERIES | VOLVO TD63E | - |
| VOLVO CONSTRUCTION EQUIPMENT L70D | - | LOADER WHEELED | L SERIES | VOLVO TD63E | - |
| VOLVO CONSTRUCTION EQUIPMENT L70E | - | LOADER WHEELED | L SERIES | VOLVO D6A180 | - |
| VOLVO CONSTRUCTION EQUIPMENT L70F | - | LOADER WHEELED | L SERIES | VOLVO D6E | - |
| VOLVO CONSTRUCTION EQUIPMENT L90C | - | LOADER WHEELED | L SERIES | VOLVO TD63E | - |
| VOLVO CONSTRUCTION EQUIPMENT L90D | - | LOADER WHEELED | L SERIES | VOLVO TD63E | - |
| VOLVO CONSTRUCTION EQUIPMENT L90E | - | LOADER WHEELED | L SERIES | VOLVO D6A180 | - |
| VOLVO CONSTRUCTION EQUIPMENT L90F | - | LOADER WHEELED | L SERIES | VOLVO D6E | - |
