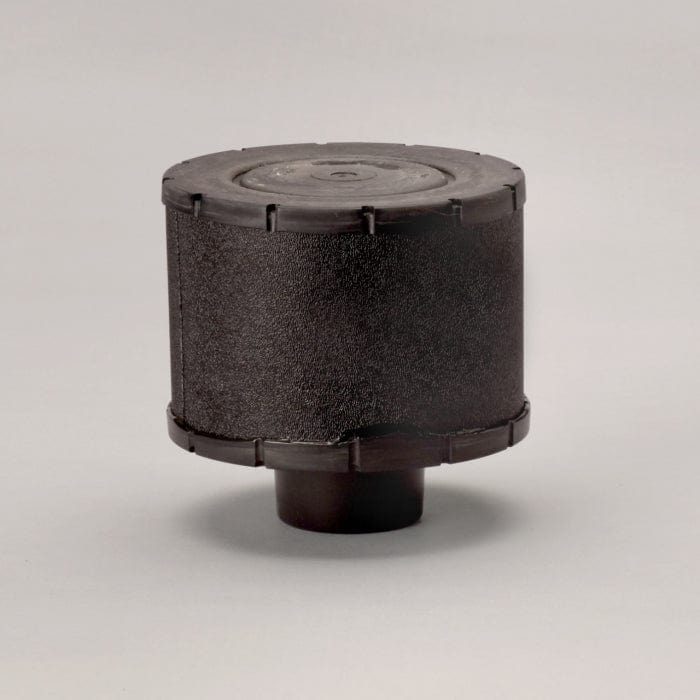

Air Filter, Primary Duralite - Donaldson C055003
Air Filter, Primary Duralite - Donaldson C055003
Regular price
£32.74
Regular price
Sale price
£32.74
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson C055003
Air Filter, Primary Duralite| Outlet Diameter | 1.75 inch (44.45 mm) |
| Body Diameter Maximum | 5.51 inch (140 mm) |
| Body Length | 4.00 inch (101.6 mm) |
| Efficiency Test Std | ISO 5011 |
| Rated Flow LR | 64 cfm (1.8 m³/min) |
| Rated Flow MR | 81 cfm (2.3 m³/min) |
| Rated Flow HR | 95 cfm (2.7 m³/min) |
| Restriction LR | 4.02 inch H2O (102 mm H2O) |
| Restriction MR | 5.98 inch H2O (152 mm H2O) |
| Restriction HR | 7.99 inch H2O (203 mm H2O) |
| Family | ECC |
| Type | Primary |
| Style | Round |
| Brand | DuraLite™ |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outlet Diameter: 44.45 mm (1.75 inch)
- Body Diameter Maximum: 140 mm (5.51 inch)
- Body Length: 101.6 mm (4.00 inch)
Packaged Dimensions
- Packaged Length: 0.170 m (6.80 inch)
- Packaged Width: 0.168 m (6.70 inch)
- Packaged Height: 0.155 m (6.20 inch)
- Packaged Weight: 0.404 kg (0.89 lb)
- Packaged Volume: 0.005 m3 (0.16 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421392590
- UPC Code: 742330000878
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALLISON | 23507716 | |
| ASSOCIATE AUTOMOTIVE | LS42225 | |
| CATERPILLAR | 3I0011 | |
| D A PRODUCTS PTY LTD | LS42225 | |
| DETROIT DIESEL | 23507716 | |
| DEUTZ | 900025380434 | |
| FORD | 9576C055003 | |
| FREIGHTLINER | DNC055003 | |
| GILLIG | 5326522031 | |
| HAVAM | HD1874 | |
| KOHLER | EX58368 | |
| LOESING | 021840 | |
| LOESING | 21840 | |
| MURPHY | MD43843 | |
| NEOPART | DONC055003 | |
| NEOPART | CM0203004 | |
| NEOPLAN | CM0203004 | |
| NEW HOLLAND | X5003 | |
| ONAN | 01402680 | |
| ONAN | 1402680 | |
| PACCAR | Y06013100 | |
| SNORKEL | 565096 | |
| UNIVERSAL COACH PARTS | G1007553002 | |
| VMC | AH55003 | |
| WABCO | 671370 | |
| WALGAHN-MOTORENTECHN | 00810045 | |
| WALGAHN-MOTORENTECHN | 810045 | |
| WISEDA LTD | 13076C |
