• Donaldson Air Filter, Primary Duralite - Donaldson B125011
1 1

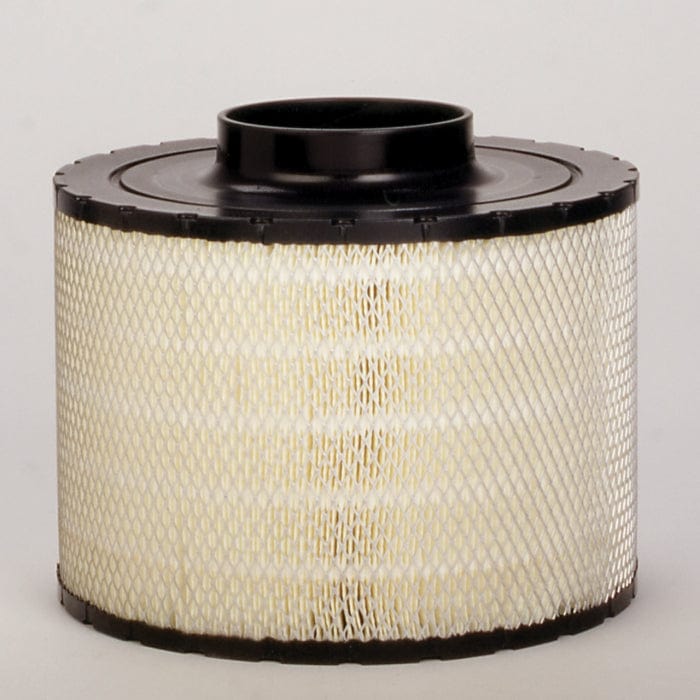

Air Filter, Primary Duralite - Donaldson B125011

Air Filter, Primary Duralite - Donaldson B125011

£71.90
£71.90
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson B125011

Air Filter, Primary Duralite
Outlet Diameter 5.00 inch (127 mm)
Body Diameter Maximum 12.50 inch (317.5 mm)
Body Length 8.98 inch (228.1 mm)
Efficiency Test Std ISO 5011
Rated Flow LR 699 cfm (19.8 m³/min)
Rated Flow MR 883 cfm (25 m³/min)
Rated Flow HR 1024 cfm (29 m³/min)
Restriction LR 4.02 inch H2O (102 mm H2O)
Restriction MR 5.98 inch H2O (152 mm H2O)
Restriction HR 7.99 inch H2O (203 mm H2O)
Family ECB
Type Primary
Style Round
Brand DuraLite™
View full details

Specifications

Attributes

  • Outlet Diameter: 127 mm (5.00 inch)
  • Body Diameter Maximum: 317.5 mm (12.50 inch)
  • Body Length: 228.1 mm (8.98 inch)
  • Efficiency Test Std: ISO 5011
  • Rated Flow LR: 19.8 m³/min (699 cfm)
  • Rated Flow MR: 25 m³/min (883 cfm)
  • Rated Flow HR: 29 m³/min (1024 cfm)
  • Restriction LR: 102 mm H2O (4.02 inch H2O)
  • Restriction MR: 152 mm H2O (5.98 inch H2O)
  • Restriction HR: 203 mm H2O (7.99 inch H2O)
  • Family: ECB
  • Type: Primary
  • Style: Round
  • Brand: DuraLite™

Packaged Dimensions

  • Packaged Length: 0.313 m (12.50 inch)
  • Packaged Width: 0.313 m (12.50 inch)
  • Packaged Height: 0.305 m (12.20 inch)
  • Packaged Weight: 2.853 kg (6.29 lb)
  • Packaged Volume: 0.031 m3 (1.10 ft3)

Other Information

  • Country of Origin: Czech Republic
  • NMFC Code: 069100-05
  • HTS Code: 84213100 90
  • UPC Code: 742330117248

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
HAVAM HD1938
HIMOINSA 3033342
LOESING 20125
LOESING 020125
MTU 13125011
SAUER DANFOSS INC 11049982
SCANIA 1332341
SULLAIR B125011016140
WALGAHN-MOTORENTECHN 00811776
WALGAHN-MOTORENTECHN 811776
