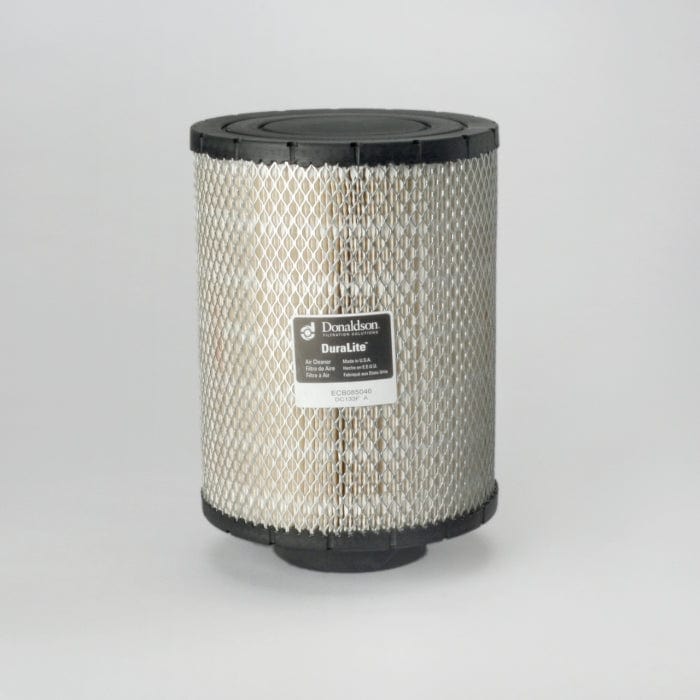

Air Filter, Primary Duralite - Donaldson B085046

Air Filter, Primary Duralite - Donaldson B085046

£62.97
£62.97
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson B085046

Air Filter, Primary Duralite
Outlet Diameter 4.00 inch (101.6 mm)
Body Diameter Maximum 8.50 inch (216 mm)
Body Length 10.98 inch (279 mm)
Efficiency Test Std ISO 5011
Rated Flow LR 279 cfm (7.9 m³/min)
Rated Flow MR 399 cfm (11.3 m³/min)
Rated Flow HR 470 cfm (13.3 m³/min)
Restriction LR 4.02 inch H2O (102 mm H2O)
Restriction MR 5.98 inch H2O (152 mm H2O)
Restriction HR 7.99 inch H2O (203 mm H2O)
Family ECB
Type Primary
Style Round
Brand DuraLite™
Media Type Cellulose
View full details

Specifications

Attributes

  • Outlet Diameter: 101.6 mm (4.00 inch)
  • Body Diameter Maximum: 216 mm (8.50 inch)
  • Body Length: 279 mm (10.98 inch)
  • Efficiency Test Std: ISO 5011
  • Rated Flow LR: 7.9 m³/min (279 cfm)
  • Rated Flow MR: 11.3 m³/min (399 cfm)
  • Rated Flow HR: 13.3 m³/min (470 cfm)
  • Restriction LR: 102 mm H2O (4.02 inch H2O)
  • Restriction MR: 152 mm H2O (5.98 inch H2O)
  • Restriction HR: 203 mm H2O (7.99 inch H2O)
  • Family: ECB
  • Type: Primary
  • Style: Round
  • Brand: DuraLite™
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.225 m (9.00 inch)
  • Packaged Width: 0.225 m (9.00 inch)
  • Packaged Height: 0.325 m (13.00 inch)
  • Packaged Weight: 1.709 kg (3.77 lb)
  • Packaged Volume: 0.017 m3 (0.60 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-03
  • HTS Code: 8421310090
  • UPC Code: 742330000533

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 93326
CATERPILLAR 312126
CATERPILLAR 3I2126
CUMMINS 3924540
VMC AH85046
