• Donaldson Air Filter, Primary Donaldson Blue - Donaldson DBA7038
1 1

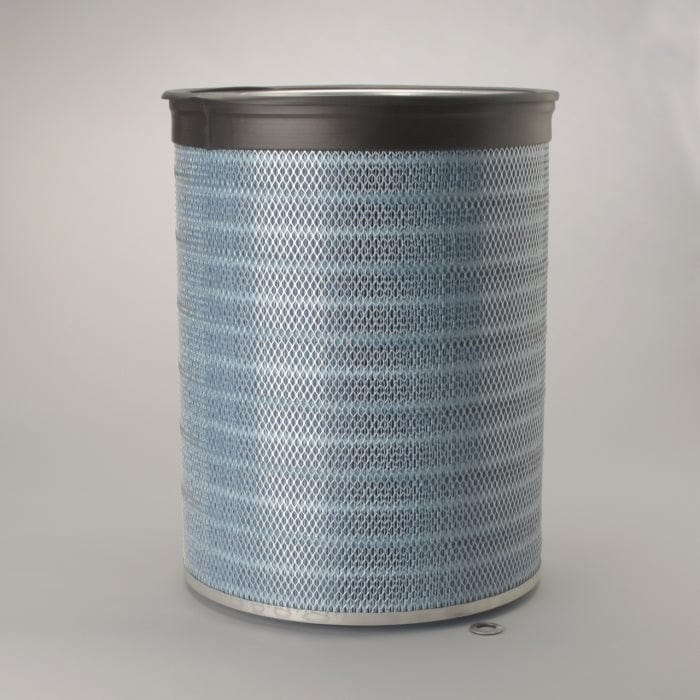

Air Filter, Primary Donaldson Blue - Donaldson DBA7038

Air Filter, Primary Donaldson Blue - Donaldson DBA7038

£226.72
£226.72
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson DBA7038

Air Filter, Primary Donaldson Blue
Outer Diameter 17.60 inch (447 mm)
Inner Diameter 11.06 inch (281 mm)
Length 23.07 inch (586 mm)
Efficiency Up to 99.999%
Efficiency Test Std ISO 5011
Type Primary
Style Round
Brand Donaldson BLUE®
Media Brand Ultra-Web® HD
Media Type Ultra-Web Nanofiber
View full details

Specifications

Attributes

  • Outer Diameter: 447 mm (17.60 inch)
  • Inner Diameter: 281 mm (11.06 inch)
  • Length: 586 mm (23.07 inch)
  • Efficiency: Up to 99.999%
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Round
  • Brand: Donaldson BLUE®
  • Media Brand: Ultra-Web® HD
  • Media Type: Ultra-Web Nanofiber

Packaged Dimensions

  • Packaged Length: 0.488 m (19.50 inch)
  • Packaged Width: 0.490 m (19.60 inch)
  • Packaged Height: 0.623 m (24.90 inch)
  • Packaged Weight: 10.898 kg (24.01 lb)
  • Packaged Volume: 0.154 m3 (5.51 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330991343

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
GARDNER DENVER 5825543
LETOURNEAU 4231018
UNIT RIG EQUIPMENT 2003174
WAUKESHA 309118A
