• Donaldson Air Filter, Primary Donaldson Blue - Donaldson DBA5294
1 1

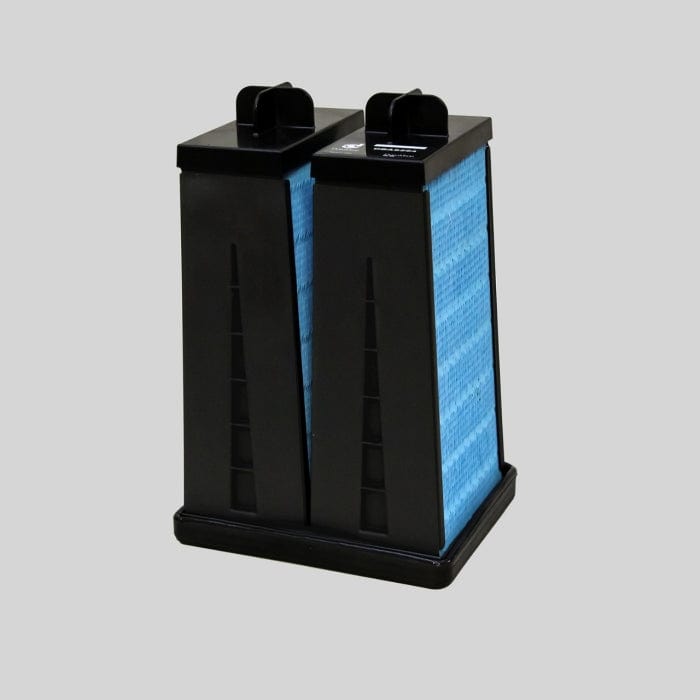

Air Filter, Primary Donaldson Blue - Donaldson DBA5294

Air Filter, Primary Donaldson Blue - Donaldson DBA5294

£89.00
£89.00
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson DBA5294

Air Filter, Primary Donaldson Blue
Length 7.45 inch (189.3 mm)
Width 9.19 inch (233.5 mm)
Height 12.64 inch (321 mm)
Efficiency Up to 99.99%
Efficiency Test Std ISO 5011
Type Primary
Style Panel
Brand Donaldson BLUE®
Media Brand Ultra-Web®
Media Type Ultra-Web Nanofiber
View full details

Specifications

Attributes

  • Length: 189.3 mm (7.45 inch)
  • Width: 233.5 mm (9.19 inch)
  • Height: 321 mm (12.64 inch)
  • Efficiency: Up to 99.99%
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Panel
  • Brand: Donaldson BLUE®
  • Media Brand: Ultra-Web®
  • Media Type: Ultra-Web Nanofiber

Packaged Dimensions

  • Packaged Length: 0.248 m (9.90 inch)
  • Packaged Width: 0.203 m (8.10 inch)
  • Packaged Height: 0.373 m (14.90 inch)
  • Packaged Weight: 1.880 kg (4.14 lb)
  • Packaged Volume: 0.019 m3 (0.69 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330228531

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AGCO 700738183
CUMMINS 5288553
JLG 70024175
KOMATSU 6001852800 Also order P638061 Safety Filter
KOMATSU 6001852810
MASSEY FERGUSON 700738183
SENNEBOGEN 169952

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
JLG G10-55A - TELEHANDLER - CUMMINS QSB4.5 -
JLG G12-55A - TELEHANDLER - CUMMINS QSB4.5 -
JLG G15-44A - TELEHANDLER - CUMMINS QSB4.5 -
JLG G5-18A - TELEHANDLER - DEUTZ TD2.9 L4 -
MASSEY FERGUSON WR9725 WINDROWER - HARVESTER - CUMMINS QSB3.3 -
