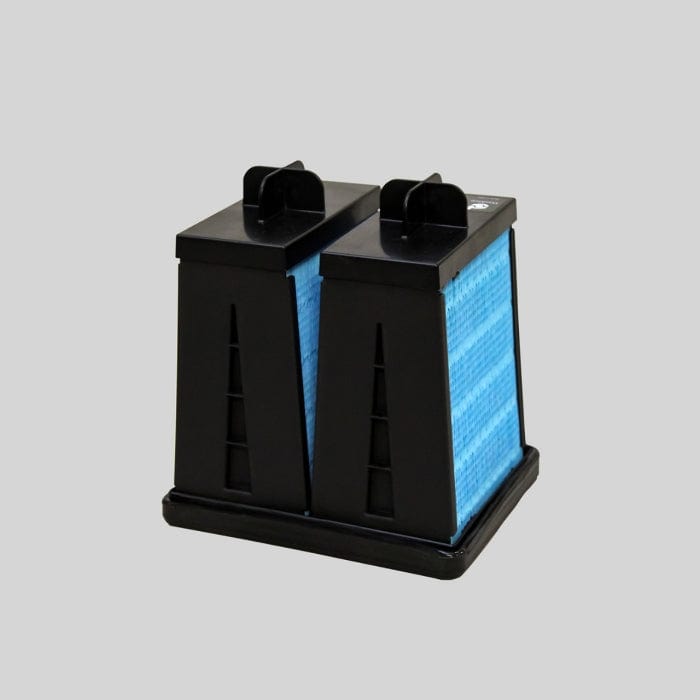

Air Filter, Primary Donaldson Blue - Donaldson DBA5290
Air Filter, Primary Donaldson Blue - Donaldson DBA5290
Regular price
£87.44
Regular price
Sale price
£87.44
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson DBA5290
Air Filter, Primary Donaldson Blue| Length | 7.45 inch (189.3 mm) |
| Width | 9.19 inch (233.5 mm) |
| Height | 8.66 inch (220 mm) |
| Efficiency | Up to 99.99% |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Panel |
| Brand | Donaldson BLUE® |
| Media Brand | Ultra-Web® |
| Media Type | Ultra-Web Nanofiber |
Share
Collapsible content
Specifications
Attributes
- Length: 189.3 mm (7.45 inch)
- Width: 233.5 mm (9.19 inch)
- Height: 220 mm (8.66 inch)
- Efficiency: Up to 99.99%
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Panel
- Brand: Donaldson BLUE®
- Media Brand: Ultra-Web®
- Media Type: Ultra-Web Nanofiber
Packaged Dimensions
- Packaged Length: 0.245 m (9.80 inch)
- Packaged Width: 0.203 m (8.10 inch)
- Packaged Height: 0.280 m (11.20 inch)
- Packaged Weight: 1.462 kg (3.22 lb)
- Packaged Volume: 0.014 m3 (0.51 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-05
- HTS Code: 8421310090
- UPC Code: 742330225950
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CUMMINS | 5283826 | |
| DOOSAN | 40050400128 | |
| DOOSAN | 46595499 | |
| GEHL | 50220831 | |
| JLG | 70024177 | |
| MANITOU | 948864 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| BRODERSON IC-200 | - | CRANE | - | CUMMINS QSB3.8 | - |
| BRODERSON IC-200 | - | CRANE | - | CUMMINS QSB3.3 | - |
| BRODERSON IC-250 | - | CRANE | - | CUMMINS QSB3.8 | - |
| BRODERSON IC-250 | - | CRANE | - | CUMMINS QSB3.3 | - |
| GEHL DL11 DYNALIFT | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| GEHL DL12 DYNALIFT | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| GEHL DL7 DYNALIFT | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| GEHL DL9 DYNALIFT | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| JLG 10042 | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| JLG 10054 | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| JLG 1043 | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| JLG 1055 | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| JLG 1255 | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| JLG 6036 | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| JLG 6042 | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| JLG 642 | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| JLG 8042 | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| JLG 943 | - | TELEHANDLER | - | CUMMINS QSF3.8 | - |
| JLG G10-43A | - | TELEHANDLER | - | CUMMINS QSB3.3 | - |
| JLG G6-42A | - | TELEHANDLER | - | CUMMINS QSB3.3 | - |
| JLG G9-43A | - | TELEHANDLER | - | CUMMINS QSB3.3 | - |
| LIUGONG 915E | - | EXCAVATOR | - | CUMMINS QSB4.5 | - |
| LIUGONG TD-9S | - | DOZER TRACKED | - | CUMMINS QSF3.8 | - |
| SHANTUI SD10YE | - | DOZER TRACKED | - | CUMMINS QSB4.5 | - |
