• Donaldson Air Filter, Primary Donaldson Blue - Donaldson DBA5049
1 1

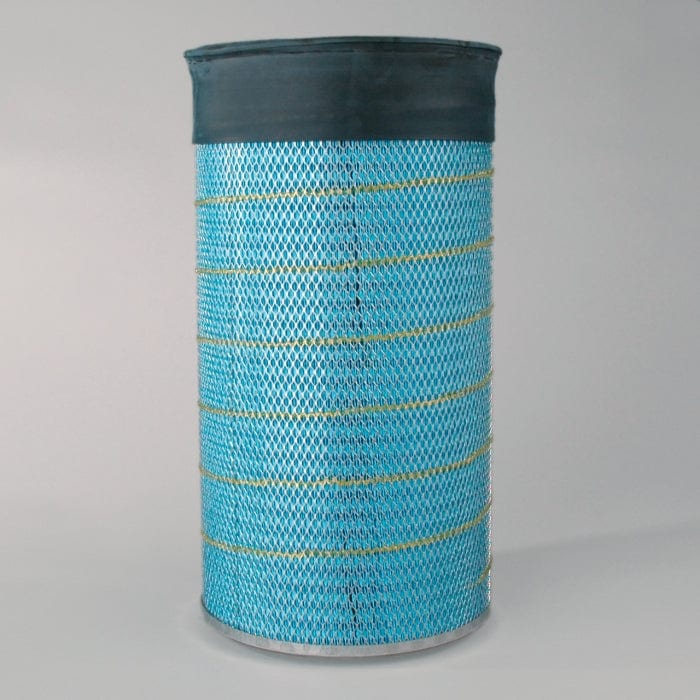

Air Filter, Primary Donaldson Blue - Donaldson DBA5049

Air Filter, Primary Donaldson Blue - Donaldson DBA5049

£183.32
£183.32
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson DBA5049

Air Filter, Primary Donaldson Blue
Outer Diameter 12.74 inch (323.6 mm)
Inner Diameter 8.38 inch (212.9 mm)
Length 24.53 inch (623.1 mm)
Efficiency Up to 99.99%
Efficiency Test Std ISO 5011
Type Primary
Style Round
Brand Donaldson BLUE®
Media Brand Ultra-Web®
Media Type Ultra-Web Nanofiber
View full details

Specifications

Attributes

  • Outer Diameter: 323.6 mm (12.74 inch)
  • Inner Diameter: 212.9 mm (8.38 inch)
  • Length: 623.1 mm (24.53 inch)
  • Efficiency: Up to 99.99%
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Round
  • Brand: Donaldson BLUE®
  • Media Brand: Ultra-Web®
  • Media Type: Ultra-Web Nanofiber

Packaged Dimensions

  • Packaged Length: 0.385 m (15.40 inch)
  • Packaged Width: 0.385 m (15.40 inch)
  • Packaged Height: 0.638 m (25.50 inch)
  • Packaged Weight: 7.237 kg (15.94 lb)
  • Packaged Volume: 0.098 m3 (3.50 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-04
  • HTS Code: 8421310090
  • UPC Code: 742330027615

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
GARDNER DENVER 1157455
GARDNER DENVER 2109567
