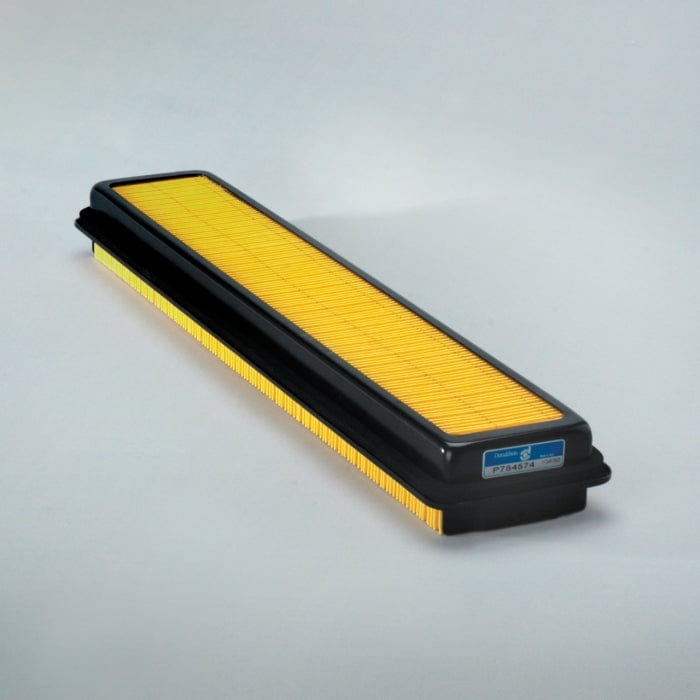

Air Filter, Panel Ventilation - Donaldson P784574
Air Filter, Panel Ventilation - Donaldson P784574
Regular price
£28.01
Regular price
Sale price
£28.01
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P784574
Air Filter, Panel VentilationShare
Collapsible content
Specifications
Attributes
- Length: 519.5 mm (20.45 inch)
- Width: 104 mm (4.09 inch)
- Height: 49 mm (1.93 inch)
- Efficiency Test Std: ISO 5011
- Primary Application: NEW HOLLAND 81868102
- Type: Ventilation
- Style: Panel
Packaged Dimensions
- Packaged Length: 0.532 m (21.26 inch)
- Packaged Width: 0.118 m (4.72 inch)
- Packaged Height: 0.069 m (2.76 inch)
- Packaged Weight: 0.797 kg (1.76 lb)
- Packaged Volume: 0.004 m3 (0.16 ft3)
Other Information
- Country of Origin: China
- NMFC Code: 069100-05
- HTS Code: 8421392590
- UPC Code: 742330164181
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | 47548101 | |
| CASE/CASE IH | C001723 | |
| CASE/CASE IH | C001896 | |
| CASE/CASE IH | 1931180 | |
| CASE/CASE IH | 47128198 | |
| CASE/CASE IH | 73402760 | |
| CASE/CASE IH | 87603874 | |
| CNHTC | 57603874 | |
| FIAT | 5181232 | |
| FIAT | 1868102 | |
| FORD | 82014790 | |
| FORD | 1260280056B | |
| FORD | FONN18N385AB | |
| FORD | D8NN94000N20BA | |
| FORD | 83994739 | |
| FORD | 2003166 | |
| FORD | F0NN18N385AB | |
| LEKANG | 15163 | |
| NEW HOLLAND | 82012057 | |
| NEW HOLLAND | 47128151 | |
| NEW HOLLAND | 87603874 | |
| NEW HOLLAND | 5196842 | |
| NEW HOLLAND | 81868102 | |
| NEW HOLLAND | 82014790 | |
| NEW HOLLAND | 73402760 | |
| TEHO | 21182 | |
| VIRGIS | PF15701 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 770 | - | BACKHOE LOADER | - | KIRLOSKAR 4R1040 | - |
| CASE/CASE IH JX1080U | - | TRACTOR | JX SERIES | - JX1080U | - |
| CASE/CASE IH JX1090U | - | TRACTOR | JX SERIES | - JX1090U | - |
| CASE/CASE IH JX1100U | - | TRACTOR | JX Series | FPT INDUSTRIAL NEF445-TURBO | - |
| CASE/CASE IH JX65 | - | TRACTOR | JX SERIES | - JX65 | - |
| CASE/CASE IH JX70 | - | TRACTOR | - | CASE/CASE IH 8035.25C.939 | - |
| CASE/CASE IH JX80U | - | TRACTOR | JX SERIES | - JX80U | - |
| CASE/CASE IH JX90U | - | TRACTOR | JX SERIES | - JX90U | - |
| CASE/CASE IH JX95 | - | TRACTOR | JX SERIES | - JX95 | - |
| CASE/CASE IH JXU105 | - | TRACTOR | JXU SERIES | - JXU105 | - |
| CASE/CASE IH JXU85 | - | TRACTOR | JXU SERIES | - JXU85 | - |
| CASE/CASE IH MXM120 | - | TRACTOR | MXM SERIES | - MXM120 | - |
| NEW HOLLAND 60 | - | TRACTOR | - | FIAT 8035.05 | - |
| NEW HOLLAND 95 | - | TRACTOR | - | IVECO 8045.25 | - |
| NEW HOLLAND T5030 | - | TRACTOR | T5000 SERIES | NEW HOLLAND NEF445TA/M3 | - |
| NEW HOLLAND T5040 | - | TRACTOR | T5000 SERIES | NEW HOLLAND NEF445TA/M3 | - |
| NEW HOLLAND T5050 | - | TRACTOR | T5000 SERIES | NEW HOLLAND NEF445TA/M3 | - |
| NEW HOLLAND T5060 | - | TRACTOR | T5000 SERIES | NEW HOLLAND NEF445TA/M3 | - |
| NEW HOLLAND T5070 | - | TRACTOR | T5000 SERIES | NEW HOLLAND NEF445TA/M3 | - |
| NEW HOLLAND TD5010 | - | TRACTOR | TD SERIES | IVECO F5C | - |
| NEW HOLLAND TD5020 | - | TRACTOR | TD SERIES | IVECO F5C | - |
| NEW HOLLAND TD5030 | - | TRACTOR | TD SERIES | IVECO F5C | - |
| NEW HOLLAND TD5040 | - | TRACTOR | TD SERIES | NEW HOLLAND NEF445T/M2 | - |
| NEW HOLLAND TD5050 | - | TRACTOR | TD SERIES | NEW HOLLAND NEF445T/M2 | - |
| NEW HOLLAND TD55D | - | TRACTOR | TD SERIES | IVECO 8035 | - |
| NEW HOLLAND TD60D | - | TRACTOR | TD SERIES | - TD60D | - |
| NEW HOLLAND TD65D | - | TRACTOR | TD SERIES | - TD65D | - |
| NEW HOLLAND TD70D | - | TRACTOR | TD SERIES | - TD70D | - |
| NEW HOLLAND TD75D | - | TRACTOR | TD SERIES | IVECO 8045 | - |
| NEW HOLLAND TD80D | - | TRACTOR | TD SERIES | - TD80D | - |
| NEW HOLLAND TD85D | - | TRACTOR | TD SERIES | IVECO 8045 | - |
| NEW HOLLAND TD90D | - | TRACTOR | TD SERIES | - TD90D | - |
| NEW HOLLAND TD95D | - | TRACTOR | TD SERIES | IVECO 8045T | - |
| NEW HOLLAND TL100A | - | TRACTOR | - | - TL100A | - |
| NEW HOLLAND TL70A | - | TRACTOR | - | - TL70A | - |
| NEW HOLLAND TL80 | - | TRACTOR | - | IVECO 8045.05 | - |
| NEW HOLLAND TL80A | - | TRACTOR | - | - TL80A | - |
| NEW HOLLAND TL90A | - | TRACTOR | - | - TL90A | - |
