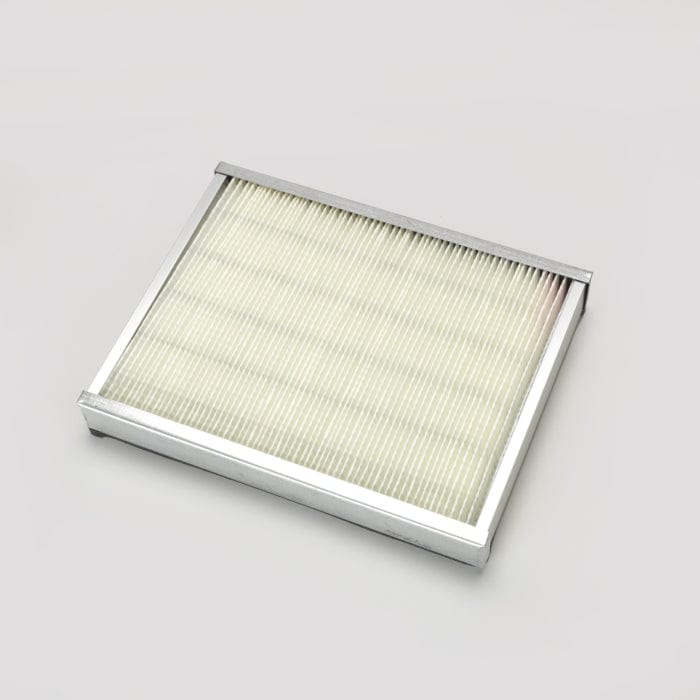

Air Filter, Panel Ventilation - Donaldson P780135

Air Filter, Panel Ventilation - Donaldson P780135

£30.23
£30.23
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P780135

Air Filter, Panel Ventilation
Length 9.00 inch (228.6 mm)
Width 7.00 inch (177.8 mm)
Height 1.06 inch (27 mm)
Efficiency Test Std ISO 5011
Type Ventilation
Style Panel
Media Type Cellulose
View full details

Specifications

Attributes

  • Length: 228.6 mm (9.00 inch)
  • Width: 177.8 mm (7.00 inch)
  • Height: 27 mm (1.06 inch)
  • Efficiency Test Std: ISO 5011
  • Type: Ventilation
  • Style: Panel
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.187 m (7.48 inch)
  • Packaged Width: 0.246 m (9.84 inch)
  • Packaged Height: 0.039 m (1.57 inch)
  • Packaged Weight: 0.400 kg (0.88 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Czech Republic
  • HTS Code: 8421392590
  • UPC Code: 742330165805

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 94585
CATERPILLAR 3E0410
GPC EP5146
KRALINATOR LA1705
LOESING 24114
LOESING 024114
NELSON 87495A
VMC AF780135

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 814F - DOZER WHEELED 800 SERIES CATERPILLAR 3176TAAC -
CATERPILLAR 815F - COMPACTOR 800 SERIES CATERPILLAR 3176C ATAAC -
CATERPILLAR 816F - COMPACTOR 800 SERIES CATERPILLAR 3176C ATAAC -
CATERPILLAR 918F - LOADER WHEELED 900 SERIES CATERPILLAR 3114 -
CATERPILLAR 924F - LOADER WHEELED 900 SERIES CATERPILLAR 3114T -
