• Donaldson Air Filter, Panel Ventilation - Donaldson P543107
1 1

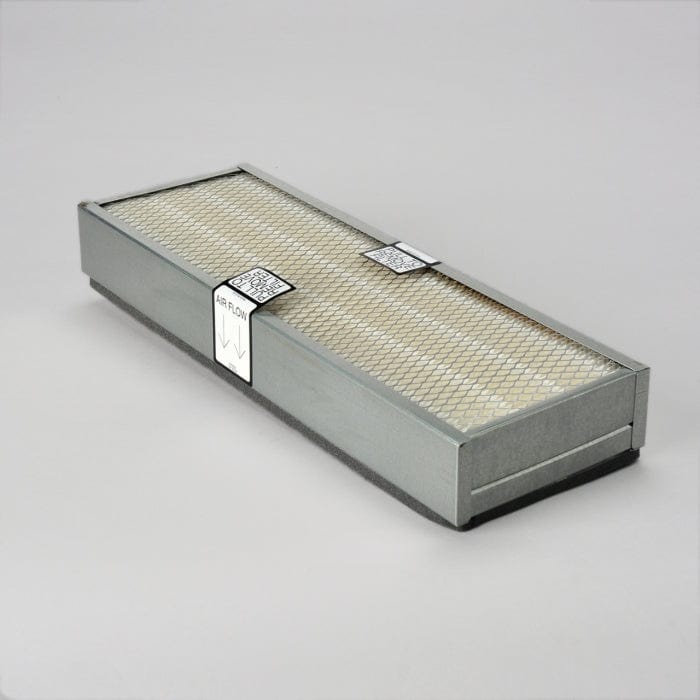

Air Filter, Panel Ventilation - Donaldson P543107

Air Filter, Panel Ventilation - Donaldson P543107

£40.13
£40.13
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P543107

Air Filter, Panel Ventilation
View full details

Specifications

Attributes

  • Length: 445.4 mm (17.54 inch)
  • Width: 152.4 mm (6.00 inch)
  • Height: 55.7 mm (2.19 inch)
  • Efficiency: 98.5
  • Efficiency Test Std: ISO 5011
  • Primary Application: CATERPILLAR 8C9657
  • Type: Ventilation
  • Style: Panel
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 1.53 FT
  • Packaged Width: 0.72 FT
  • Packaged Height: 0.27 FT
  • Packaged Weight: 1.435 kg (3.16 lb)
  • Packaged Volume: 0.008 m3 (0.29 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421392590
  • UPC Code: 742330107065

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 8C9657
CATERPILLAR 1212760
GPC EP5255
GT PIECES ET SERVICES 2242249
KRALINATOR LA6825
LOESING 025221
LOESING 25221
NELSON 87246N
VMC AF543107

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 611 - SCRAPER - CATERPILLAR 3306 -
CATERPILLAR 613C II - SCRAPER - CATERPILLAR 3116 -
CATERPILLAR 615C II - SCRAPER - CATERPILLAR 3306 -
CATERPILLAR 621F - TRACTOR - CATERPILLAR 3406C -
CATERPILLAR 621F - TRACTOR - CATERPILLAR 3406 -
