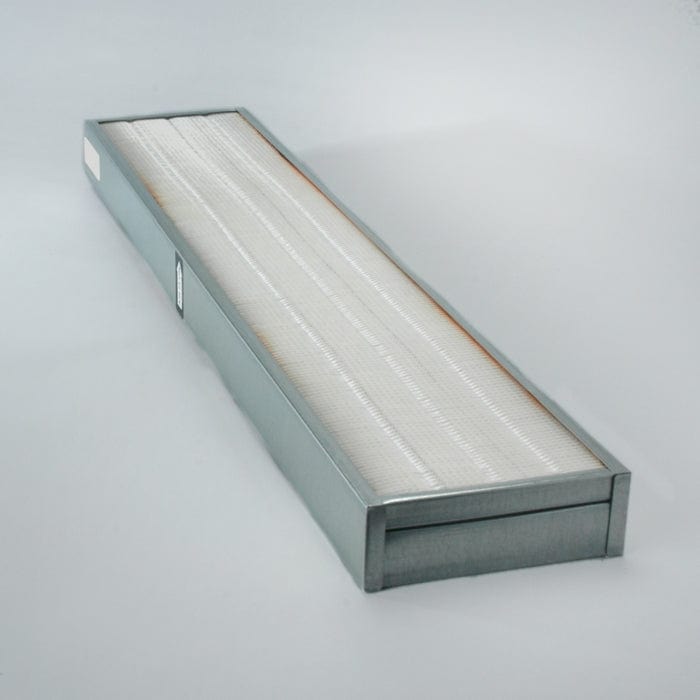

Air Filter, Panel Ventilation - Donaldson P117109
Air Filter, Panel Ventilation - Donaldson P117109
Regular price
£52.56
Regular price
Sale price
£52.56
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P117109
Air Filter, Panel Ventilation| Length | 33.00 inch (838.2 mm) |
| Width | 6.50 inch (165.2 mm) |
| Height | 2.19 inch (55.5 mm) |
| Efficiency Test Std | ISO 5011 |
| Type | Ventilation |
| Style | Panel |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Length: 838.2 mm (33.00 inch)
- Width: 165.2 mm (6.50 inch)
- Height: 55.5 mm (2.19 inch)
- Efficiency Test Std: ISO 5011
- Type: Ventilation
- Style: Panel
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.847 m (33.86 inch)
- Packaged Width: 0.177 m (7.09 inch)
- Packaged Height: 0.059 m (2.36 inch)
- Packaged Weight: 1.793 kg (3.95 lb)
- Packaged Volume: 0.009 m3 (0.33 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421392590
- UPC Code: 742330009529
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A663C | |
| AGCO | 8022345 | |
| AGCO | 08022345 | |
| AMERICAN PARTS | 1412 | |
| BIG A | 93569 | |
| BIG A | 1412 | |
| CASE/CASE IH | 8022345 | |
| CATERPILLAR | 3I0100 | |
| CLARK | 949758 | |
| CLARK | M0949758 | |
| CLARK,J.L. | 949758 | |
| COMPACTION AMERICA | 031020525 | |
| CRENLO | 86623 | |
| DELUXE | AF660 | |
| DELUXE | 660AIR | |
| DELUXE | 660 | |
| DEUTZ | 08022345 | |
| DRILTECH | 1675075 | |
| DRILTECH | 001675075 | |
| EUCLID | M0949758 | |
| EUCLID | 0949758 | |
| FIAT | 8022345 | |
| FIAT | 78022345 | |
| FSI | AP33652 | |
| GPC | EP5250 | |
| GUARDIAN | G117109 | |
| HAVAM | HD6736 | |
| HAY & FORAGE | 8022345 | |
| HITACHI | 78022345 | |
| KOEHRING | 31020525 | |
| KRALINATOR | LA1949 | |
| KRALINATOR | LA673 | |
| KRAMER | 9934701 | |
| KRAMER | 0009934701 | |
| NELSON | 84790S | |
| NELSON | 83750N | |
| NELSON | 117109 | |
| NELSON WINSLOW | 117109 | |
| NELSON WINSLOW | 84790S | |
| NELSON WINSLOW | 83750N | |
| UNITED CENTRAL INDUSTRIAL SUPP | 686600 | |
| VMC | AF117109 | |
| VOLVO | 949758 | |
| WALDON | 63036900 | |
| WALGAHN-MOTORENTECHN | 00810624 | |
| WALGAHN-MOTORENTECHN | 810624 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 8820 | - | WINDROWER | - | - 8820 | - |
| CASE/CASE IH 8830 | - | WINDROWER | - | - 8830 | - |
| CASE/CASE IH 8840 | - | WINDROWER | - | CUMMINS 4BT3.9 | - |
| CASE/CASE IH 8850 | - | WINDROWER | - | - 8850 | - |
| CASE/CASE IH 8870 | - | WINDROWER | - | - 8870 | - |
| FIAT 6450 | - | TRACTOR | - | CHRYSLER 6 CYL | - |
| FIAT 6550 | - | TRACTOR | - | - 6550 | - |
| FIAT 6650 | - | TRACTOR | - | PERKINS 6 CYL | - |
| FIAT 8400 | - | WINDROWER | - | CUMMINS 4B3.9 | - |
