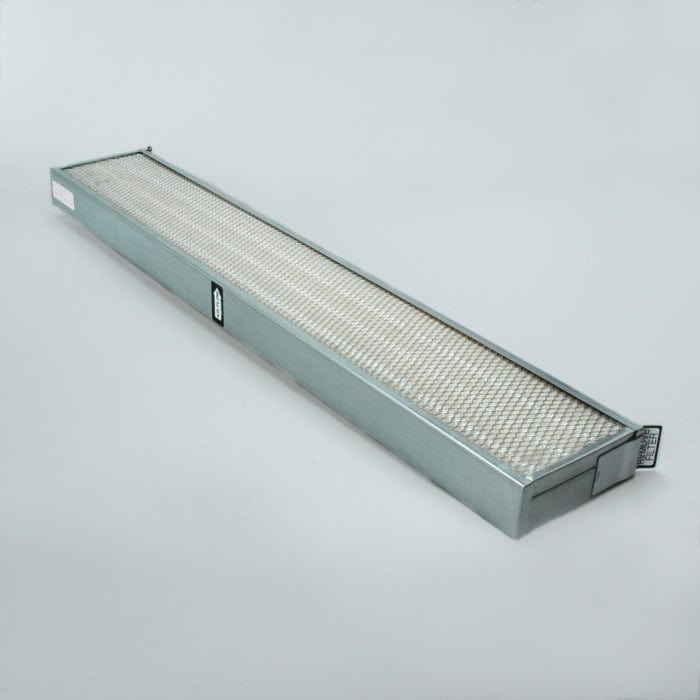

Air Filter, Panel Ventilation - Donaldson P115690

Air Filter, Panel Ventilation - Donaldson P115690

£55.65
£55.65
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P115690

Air Filter, Panel Ventilation
Length 37.00 inch (939.9 mm)
Width 6.12 inch (155.5 mm)
Height 2.19 inch (55.7 mm)
Efficiency Test Std ISO 5011
Type Ventilation
Style Panel
Media Type Cellulose
View full details

Specifications

Attributes

  • Length: 939.9 mm (37.00 inch)
  • Width: 155.5 mm (6.12 inch)
  • Height: 55.7 mm (2.19 inch)
  • Efficiency Test Std: ISO 5011
  • Type: Ventilation
  • Style: Panel
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.63 FT
  • Packaged Width: 0.25 FT
  • Packaged Height: 3.25 FT
  • Packaged Weight: 2.315 kg (5.10 lb)
  • Packaged Volume: 0.014 m3 (0.51 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421392590
  • UPC Code: 742330009406

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO A599C
AC DELCO A939C
AGCO 317761680
AMERICAN PARTS 93559
AMERICAN PARTS 1225
BIG A 93559
BIG A 1225
CATERPILLAR 3I0091
DELUXE AF661
DELUXE 661AIR
DELUXE 661
FSI AP37602
GPC EP5015
GUARDIAN G115690
JOHN DEERE AH96328
JOHN DEERE AH80212
JOHN DEERE AH80920
KRALINATOR LA530
NELSON 115690
NELSON 83769N
NELSON 84786S
NELSON WINSLOW 115690
VMC AF115690
WALGAHN-MOTORENTECHN 00810617
WALGAHN-MOTORENTECHN 810617
WHITE 317761680
WHITE 3177616

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
JOHN DEERE 3300 - COMBINE - JOHN DEERE 4219D -
JOHN DEERE 3300 - COMBINE - JOHN DEERE 219 -
JOHN DEERE 4400 - COMBINE - JOHN DEERE 6329 -
JOHN DEERE 4420 - COMBINE - JOHN DEERE 6329D -
JOHN DEERE 6600 - COMBINE LEVEL LAND JOHN DEERE 6329 -
JOHN DEERE 6602 - COMBINE - - 6602 -
JOHN DEERE 6602 - COMBINE - JOHN DEERE 362 -
JOHN DEERE 6602 - COMBINE - JOHN DEERE 404 -
JOHN DEERE 6602 - COMBINE - JOHN DEERE 466 -
JOHN DEERE 965 - COMBINE - - 965 -
MASSEY FERGUSON MF8560 - COMBINE MF 8500 SERIES CUMMINS 6BTA5.9 -
MASSEY FERGUSON MF8570 - COMBINE MF 8500 SERIES CUMMINS 6CTA8.3 -
MASSEY FERGUSON MF8590 - COMBINE MF 8500 SERIES PERKINS 640CID -
WHITE 8700 - COMBINE - - 8700 -
WHITE 8900 - COMBINE - - 8900 -
