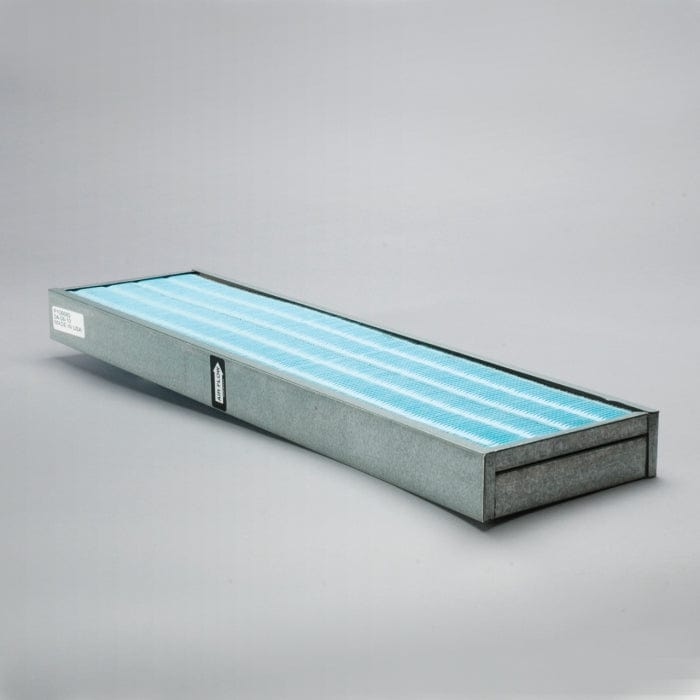

Air Filter, Panel Ventilation - Donaldson P106680
Air Filter, Panel Ventilation - Donaldson P106680
Regular price
£135.03
Regular price
Sale price
£135.03
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P106680
Air Filter, Panel Ventilation| Length | 28.00 inch (711.2 mm) |
| Width | 7.50 inch (190.5 mm) |
| Height | 2.19 inch (55.6 mm) |
| Efficiency | 96.5 |
| Efficiency Test Std | ISO 5011 |
| Type | Ventilation |
| Style | Panel |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Length: 711.2 mm (28.00 inch)
- Width: 190.5 mm (7.50 inch)
- Height: 55.6 mm (2.19 inch)
- Efficiency: 96.5
- Efficiency Test Std: ISO 5011
- Type: Ventilation
- Style: Panel
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.725 m (29.00 inch)
- Packaged Width: 0.200 m (8.00 inch)
- Packaged Height: 0.075 m (3.00 inch)
- Packaged Weight: 1.984 kg (4.37 lb)
- Packaged Volume: 0.011 m3 (0.40 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421392590
- UPC Code: 742330008324
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 70569300V | |
| AGCO | 7021959 | |
| ALLIS-CHALMERS | 70569300 | |
| ALLIS-CHALMERS | 5693007 | |
| ALLIS-CHALMERS | 569300 | |
| AMERICAN PARTS | 1223 | |
| AMERICAN PARTS | 93555 | |
| BERGERAT MONNOYEUR | E2105 | |
| BIG A | 1223 | |
| BIG A | 93571 | |
| BIG A | 93555 | |
| BOBCAT | 6620654 | |
| CASE/CASE IH | F84818 | |
| CASE/CASE IH | LX134692 | |
| CASE/CASE IH | E2NN19N551AA | |
| CASE/CASE IH | 1105394C1 | |
| CASE/CASE IH | 926389C1 | |
| CASE/CASE IH | D5NN19N551A | |
| CASE/CASE IH | D2NN19N551A | |
| CASE/CASE IH | D3NN19N551A | |
| CASE/CASE IH | F084818 | |
| CASE/CASE IH | 7021959 | |
| CATERPILLAR | 3I0047 | |
| CHAMPION ROAD | 26866 | |
| CLARK | 6620654 | |
| CLARK,J.L. | 6620654 | |
| COOPERS | AEP3517 | |
| CRENLO | 100499 | |
| DART | PPP106680 | |
| DELUXE | AF655 | |
| DELUXE | 655 | |
| DEUTZ | 7021959 | |
| DRESSER | 167870C1 | |
| DRESSER | 1105394C1 | |
| DRESSER | 926389C1 | |
| EXCEL | 037077 | |
| EXCEL | 37077 | |
| FIAT | 77021959 | |
| FIAT | D3NN19N551A | |
| FIAT | D2NN19N551A | |
| FIAT | 569300 | |
| FIAT | E2NN19N551AA | |
| FIAT | LX134692 | |
| FIAT | D5NN19N551A | |
| FIAT | 70569300 | |
| FIAT | 7021959 | |
| FIELD QUEEN | 72998 | |
| FIELD QUEEN | 7021959 | |
| FORD | D3NN19NSS1A | |
| FORD | D3NN19N551A | |
| FORD | E2NN19A551AA | |
| FORD | E2NN19N551AA | |
| FORD | LX134692 | |
| FORD | D2NN19N551A | |
| FORD | 9576P106680 | |
| FORD | D5NN19N551A | |
| FORD | 134692 | |
| FREIGHTLINER | DNP106680 | |
| FSI | AP28752 | |
| FURUKAWA | 167870C1 | |
| FURUKAWA | 926389C1 | |
| FURUKAWA | 1105394C1 | |
| GPC | EP5013 | |
| GPC | EP5009 | |
| GUARDIAN | G152553 | |
| GUARDIAN | G106680 | |
| HAVAM | HD6116 | |
| HEIN-WERNER | 300340 | |
| HESCO | RE12793 | |
| HESSTON | 7021959 | |
| HITACHI | 77021959 | |
| HITACHI | 70569300 | |
| HITACHI | 569300 | |
| INTERNATIONAL | 926389C1 | |
| INTERNATIONAL | 167870C1 | |
| INTERNATIONAL | 1105394C1 | |
| JOHN DEERE | AN112705 | |
| JOHN DEERE | AN112705J | |
| KELLOGG AMERICAN | 32288 | |
| KERSHAW | 032288 | |
| KERSHAW | 32288 | |
| KOMATSU | 926389C1 | |
| KRALINATOR | LA640 | |
| KUBOTA | 7009001653 | |
| LETOURNEAU | 4081835 | |
| LOESING | 20189 | |
| LOESING | 020189 | |
| MANITOWOC | 4272060 | |
| MANITOWOC | 427206 | |
| MCCORMICK | F84818 | |
| NELSON | 84100N | |
| NELSON | 106680 | |
| NELSON | 84797S | |
| NELSON | 83700H | |
| NELSON WINSLOW | 106680 | |
| NEW HOLLAND | E2NN19N551AA | |
| NEW HOLLAND | 22103 | |
| NEW HOLLAND | 134692 | |
| NEW HOLLAND | D5NN19N551A | |
| NEW HOLLAND | 124692 | |
| NEW HOLLAND | 7021959 | |
| NEW HOLLAND | D2NN19N551A | |
| NEW HOLLAND | D3NN19N551A | |
| NEW HOLLAND | LX134692 | |
| PANDROL JACKSON | 1552361 | |
| PERRY | PAK922 | |
| THERMO KING | 998213 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 906962 | |
| VERSATILE | 22103 | |
| VMC | AF106680 | |
| VOLVO | 26866 | |
| WALGAHN-MOTORENTECHN | 00810529 | |
| WALGAHN-MOTORENTECHN | 810529 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AGCO R60 | - | COMBINE | R SERIES | DEUTZ F8L513 | - |
| ALLIS-CHALMERS 860 | - | COTTON PICKER | - | - 860 | - |
| ALLIS-CHALMERS 860XTB | - | COTTON PICKER | - | - 860XTB | - |
| ALLIS-CHALMERS F | - | COMBINE | - | - F | - |
| ALLIS-CHALMERS F | - | COMBINE | - | - F | - |
| ALLIS-CHALMERS F | - | COMBINE | - | - F | - |
| ALLIS-CHALMERS F | - | COMBINE | - | ALLIS-CHALMERS 2800 | - |
| ALLIS-CHALMERS F2 | - | COMBINE | - | - F2 | - |
| ALLIS-CHALMERS F2 | - | COMBINE | - | CHEVROLET 292 | - |
| ALLIS-CHALMERS G | - | COMBINE | - | - G | - |
| ALLIS-CHALMERS G | - | COMBINE | - | - G | - |
| ALLIS-CHALMERS G | - | COMBINE | - | - G | - |
| ALLIS-CHALMERS G | - | COMBINE | - | - G | - |
| ALLIS-CHALMERS GH | - | COMBINE | - | - GH | - |
| ALLIS-CHALMERS GH | - | COMBINE | - | - GH | - |
| ALLIS-CHALMERS GH | - | COMBINE | - | - GH | - |
| ALLIS-CHALMERS GH | - | COMBINE | - | - GH | - |
| ALLIS-CHALMERS K | - | COMBINE | - | - K | - |
| ALLIS-CHALMERS K2 | - | COMBINE | - | - K2 | - |
| ALLIS-CHALMERS K2 | - | COMBINE | - | ALLIS-CHALMERS 433T | - |
| ALLIS-CHALMERS K2 | - | COMBINE | - | ALLIS-CHALMERS 433I | - |
| ALLIS-CHALMERS K2 | - | COMBINE | - | - K2 | - |
| ALLIS-CHALMERS L | - | COMBINE | - | - L | - |
| ALLIS-CHALMERS L | - | COMBINE | - | ALLIS-CHALMERS D2900 | - |
| ALLIS-CHALMERS L | - | COMBINE | - | ALLIS-CHALMERS 3500 | - |
| ALLIS-CHALMERS L | - | COMBINE | - | ALLIS-CHALMERS 2900 MKII | - |
| ALLIS-CHALMERS L2 | - | COMBINE | - | ALLIS-CHALMERS 649 | - |
| ALLIS-CHALMERS L2 | - | COMBINE | - | ALLIS-CHALMERS D3500 | - |
| ALLIS-CHALMERS L2 | - | COMBINE | - | ALLIS-CHALMERS D2900 | - |
| ALLIS-CHALMERS L2 | - | COMBINE | - | ALLIS-CHALMERS 670 | - |
| ALLIS-CHALMERS M | - | COMBINE | - | - 5.7L V8 | - |
| ALLIS-CHALMERS M | - | COMBINE | - | ALLIS-CHALMERS D2900 | - |
| ALLIS-CHALMERS M | - | COMBINE | - | ALLIS-CHALMERS 2900 MKI | - |
| ALLIS-CHALMERS M2 | - | COMBINE | - | ALLIS-CHALMERS 2900 | - |
| ALLIS-CHALMERS M2 | - | COMBINE | - | ALLIS-CHALMERS D3500 | - |
| ALLIS-CHALMERS M2 | - | COMBINE | - | ALLIS-CHALMERS 670 | - |
| ALLIS-CHALMERS M2 | - | COMBINE | - | ALLIS-CHALMERS 649T | - |
| ALLIS-CHALMERS MH2 | - | COMBINE | - | ALLIS-CHALMERS 3500 | - |
| ALLIS-CHALMERS MH2 | - | COMBINE | - | ALLIS-CHALMERS 2900 | - |
| ALLIS-CHALMERS MH2 | - | COMBINE | - | ALLIS-CHALMERS 670T | - |
| ALLIS-CHALMERS MH2 | - | COMBINE | - | ALLIS-CHALMERS 649T | - |
| ALLIS-CHALMERS N5 | - | COMBINE | - | ALLIS-CHALMERS D3500 | - |
| ALLIS-CHALMERS N6 | - | COMBINE | - | ALLIS-CHALMERS D3500 | - |
| ALLIS-CHALMERS N7 | - | COMBINE | - | ALLIS-CHALMERS 6 | - |
| CASE/CASE IH 1075 | - | COMBINE | - | - 1075 | - |
| CASE/CASE IH 1160 | - | COMBINE | - | CASE/CASE IH 301 | - |
| CASE/CASE IH 1160 | - | COMBINE | - | WISCONSIN VF4 | - |
| JOHN DEERE 310A | - | BACKHOE LOADER | - | - 310A | - |
| JOHN DEERE 310A | - | BACKHOE LOADER | 300 SERIES | - 310A | - |
| JOHN DEERE 5830 | - | HARVESTER | 5000 SERIES | - 5830 | - |
| JOHN DEERE 7445 | - | COTTON PICKER | - | - 7445 | - |
| JOHN DEERE 7722 | - | COMBINE | - | JOHN DEERE 6466A | - |
| JOHN DEERE 9900 | - | COTTON PICKER | - | - 9900 | - |
| JOHN DEERE 9920 | - | COTTON PICKER | - | - 9920 | - |
| NEW HOLLAND 1075 | - | BALER | - | - 1075 | - |
| NEW HOLLAND 1425 | - | AGRICULTURAL EQUIPMENT | - | - 1425 | - |
| NEW HOLLAND 1426 | - | AGRICULTURAL EQUIPMENT | - | - 1426 | - |
| NEW HOLLAND 1496 | - | SWATHER | - | - 1496 | - |
| NEW HOLLAND 2115 | - | SWATHER | - | - 2115 | - |
| NEW HOLLAND 95 | - | TRACTOR | - | CATERPILLAR 3208 | - |
| NEW HOLLAND TF75 | - | COMBINE | - | - TF75 | - |
| NEW HOLLAND TR70 | - | COMBINE | TR SERIES | FORD 363TD | - |
| NEW HOLLAND TR70 | - | COMBINE | TR SERIES | FORD 361 | - |
| NEW HOLLAND TR86 | - | COMBINE | TR SERIES | FORD 678HT | - |
| NEW HOLLAND TR96 | - | COMBINE | TR SERIES | FORD 678HT | - |
| VERSATILE 400 | - | SWATHER | - | - 400 | - |
| VERSATILE 440 | - | SWATHER | - | - 440 | - |
| VERSATILE 4400 | - | SWATHER | - | FORD 6 CYL | - |
| VERSATILE D118 | - | TRACTOR | - | CUMMINS V185 | - |
| VERSATILE D118 | - | TRACTOR | - | CUMMINS V140 | - |
| VERSATILE D145 | - | TRACTOR | - | CUMMINS V185 | - |
| VERSATILE M118 | - | TRACTOR | - | CUMMINS V140 | - |
| VERSATILE M118 | - | TRACTOR | - | CUMMINS V185 | - |
