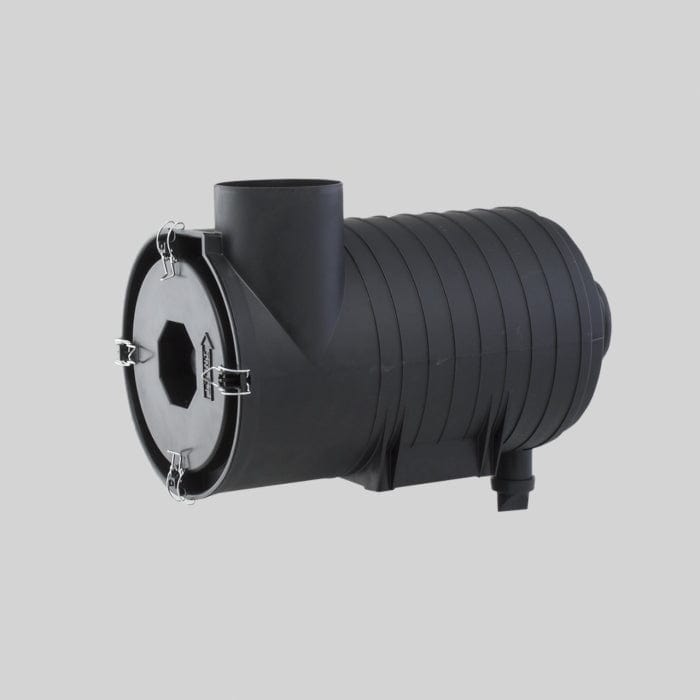

Air Cleaner, Xrb Cycloflow - Donaldson B120470

Air Cleaner, Xrb Cycloflow - Donaldson B120470

£385.12
£385.12
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson B120470

Air Cleaner, Xrb Cycloflow
Inlet Diameter 6.00 inch (152.4 mm)
Outlet Diameter 5.04 inch (128.1 mm)
Body Diameter Maximum 13.02 inch (330.8 mm)
Body Length 20.61 inch (523.4 mm)
Overall Length 23.68 inch (601.4 mm)
Rated Flow LR 491 cfm (13.9 m³/min)
Rated Flow MR 565 cfm (16 m³/min)
Rated Flow HR 629 cfm (17.8 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Family XRB
Brand Cycloflow™
View full details

Specifications

Attributes

  • Inlet Diameter: 152.4 mm (6.00 inch)
  • Outlet Diameter: 128.1 mm (5.04 inch)
  • Body Diameter Maximum: 330.8 mm (13.02 inch)
  • Body Length: 523.4 mm (20.61 inch)
  • Overall Length: 601.4 mm (23.68 inch)
  • Rated Flow LR: 13.9 m³/min (491 cfm)
  • Rated Flow MR: 16 m³/min (565 cfm)
  • Rated Flow HR: 17.8 m³/min (629 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Family: XRB
  • Brand: Cycloflow™

Packaged Dimensions

  • Packaged Length: 0.525 m (21.00 inch)
  • Packaged Width: 0.523 m (20.90 inch)
  • Packaged Height: 0.645 m (25.80 inch)
  • Packaged Weight: 10.760 kg (23.70 lb)
  • Packaged Volume: 0.183 m3 (6.55 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 156600-03
  • HTS Code: 8421310090
  • UPC Code: 742330170809

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ASHOK LEYLAND F7A01400
ASHOK LEYLAND F7A04400
MAHINDRA 0313AAV00060N
SWARAJ MAZDA LZ0213320
