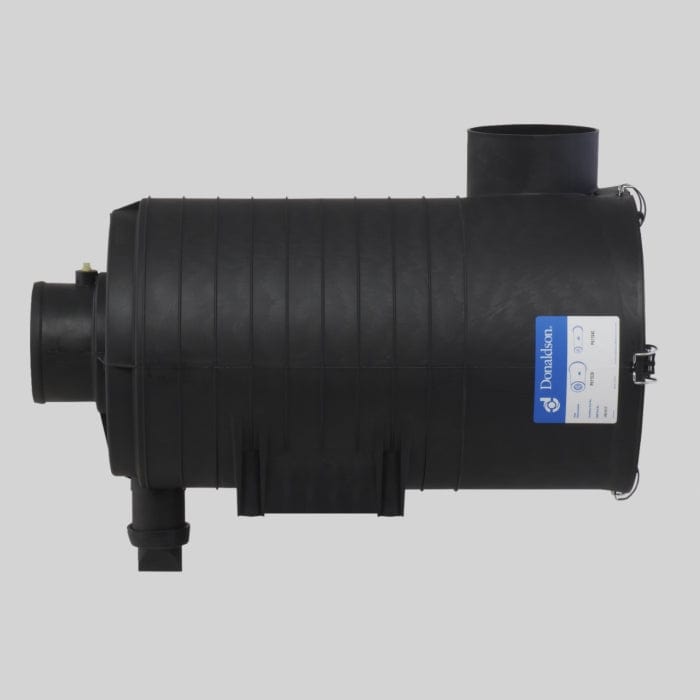

Air Cleaner, Xrb Cycloflow - Donaldson B100127

Air Cleaner, Xrb Cycloflow - Donaldson B100127

£315.17
£315.17
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson B100127

Air Cleaner, Xrb Cycloflow
Inlet Diameter 5.00 inch (127 mm)
Outlet Diameter 4.50 inch (114.3 mm)
Body Diameter Maximum 11.36 inch (288.5 mm)
Body Length 19.18 inch (487.3 mm)
Overall Length 22.26 inch (565.3 mm)
Rated Flow LR 330 cfm (9.34 m³/min)
Rated Flow MR 406 cfm (11.5 m³/min)
Rated Flow HR 473 cfm (13.4 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Family XRB
Brand Cycloflow™
View full details

Specifications

Attributes

  • Inlet Diameter: 127 mm (5.00 inch)
  • Outlet Diameter: 114.3 mm (4.50 inch)
  • Body Diameter Maximum: 288.5 mm (11.36 inch)
  • Body Length: 487.3 mm (19.18 inch)
  • Overall Length: 565.3 mm (22.26 inch)
  • Rated Flow LR: 9.34 m³/min (330 cfm)
  • Rated Flow MR: 11.5 m³/min (406 cfm)
  • Rated Flow HR: 13.4 m³/min (473 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Family: XRB
  • Brand: Cycloflow™

Packaged Dimensions

  • Packaged Length: 0.438 m (17.50 inch)
  • Packaged Width: 0.438 m (17.50 inch)
  • Packaged Height: 0.600 m (24.00 inch)
  • Packaged Weight: 11.350 kg (25.00 lb)
  • Packaged Volume: 0.119 m3 (4.25 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 156600-03
  • HTS Code: 8421310090
  • UPC Code: 742330178874
