• Donaldson Air Cleaner, Stg Donaclone Tubular - Donaldson G160445
1 1

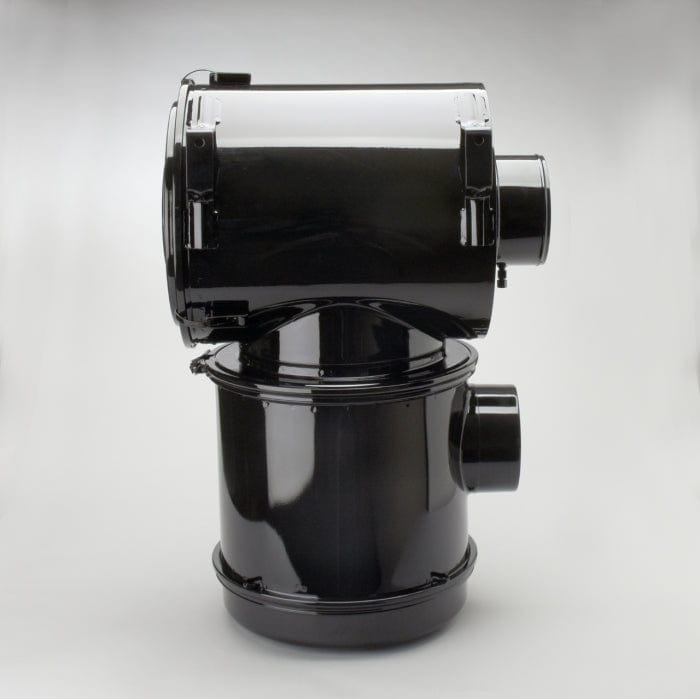

Air Cleaner, Stg Donaclone Tubular - Donaldson G160445

Air Cleaner, Stg Donaclone Tubular - Donaldson G160445

£1,545.89
£1,545.89
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G160445

Air Cleaner, Stg Donaclone Tubular
Width 20.12 inch (511 mm)
Inlet Diameter 7.00 inch (177.8 mm)
Outlet Diameter 7.00 inch (177.8 mm)
Body Diameter Maximum 16.00 inch (406.4 mm)
Body Length 13.60 inch (345.44 mm)
Overall Length 26.31 inch (668.3 mm)
Rated Flow LR 915 cfm (25.9 m³/min)
Rated Flow MR 1063 cfm (30.1 m³/min)
Rated Flow HR 1201 cfm (34 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Style Tubular
Family STG
Brand Donaclone™
View full details

Specifications

Attributes

  • Width: 511 mm (20.12 inch)
  • Inlet Diameter: 177.8 mm (7.00 inch)
  • Outlet Diameter: 177.8 mm (7.00 inch)
  • Body Diameter Maximum: 406.4 mm (16.00 inch)
  • Body Length: 345.44 mm (13.60 inch)
  • Overall Length: 668.3 mm (26.31 inch)
  • Rated Flow LR: 25.9 m³/min (915 cfm)
  • Rated Flow MR: 30.1 m³/min (1063 cfm)
  • Rated Flow HR: 34 m³/min (1201 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Style: Tubular
  • Family: STG
  • Brand: Donaclone™

Packaged Dimensions

  • Packaged Length: 1.044 m (41.75 inch)
  • Packaged Width: 0.531 m (21.25 inch)
  • Packaged Height: 0.669 m (26.75 inch)
  • Packaged Weight: 42.449 kg (93.50 lb)
  • Packaged Volume: 0.385 m3 (13.73 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421310090
  • UPC Code: 742330002360

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ALLIED SYSTEM 224214
ASTEC UNDERGROUND 3014051309
ATLAS COPCO 5540070000
CASE/CASE IH NG160445
COMPAIR 25030240
COMPAIR 22691740
COMPAIR 22591740
DEUTZ 4227331
DEUTZ 04227331
EIMCO 69008955
ENMTP CPG 5603922
EVOBUS 1393700129
FORD 9576G160445
HAVAM HD9828
KENWORTH STG160445
KOMATSU 22691740
KOMATSU 22591740
KOMATSU 25030240
LIEBHERR 5603922
LIEBHERR 5603922NEU10115000
LIEBHERR 10115000
SANDVIK 69008955
TEREX 760678
TEREX 9079411
TEREX 25030240
TEREX 22691740
TEREX 22591740
TEREX 09079411
WAGNER MINING EQUIPMENT 5540070000
WALGAHN-MOTORENTECHN 810148
WALGAHN-MOTORENTECHN 00810148
