• Donaldson Air Cleaner, Stg Donaclone Tubular - Donaldson G120332
1 1

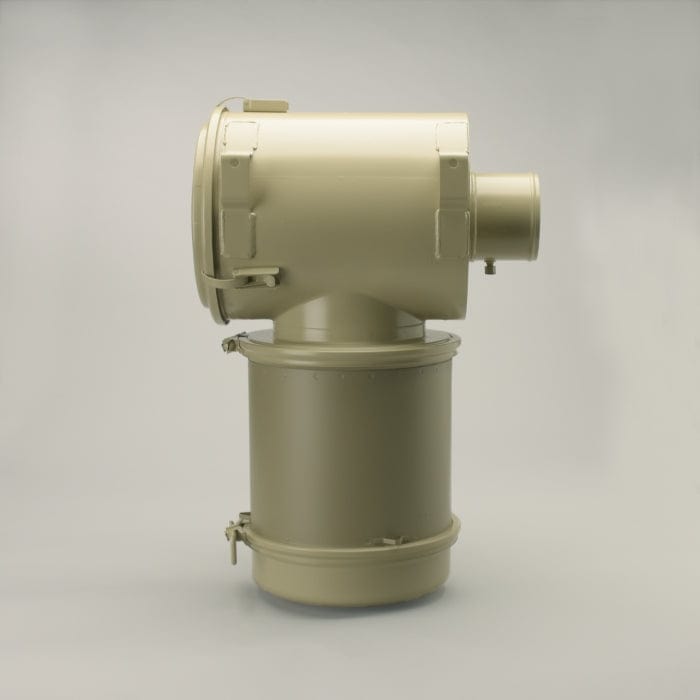

Air Cleaner, Stg Donaclone Tubular - Donaldson G120332

Air Cleaner, Stg Donaclone Tubular - Donaldson G120332

£1,477.55
£1,477.55
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G120332

Air Cleaner, Stg Donaclone Tubular
Width 14.76 inch (375 mm)
Inlet Diameter 5.00 inch (127 mm)
Outlet Diameter 5.00 inch (127 mm)
Body Diameter Maximum 11.81 inch (299.97 mm)
Body Length 15.43 inch (392 mm)
Rated Flow LR 388 cfm (11 m³/min)
Rated Flow MR 456 cfm (12.9 m³/min)
Rated Flow HR 516 cfm (14.6 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Style Tubular
Family STG
Brand Donaclone™
View full details

Specifications

Attributes

  • Width: 375 mm (14.76 inch)
  • Inlet Diameter: 127 mm (5.00 inch)
  • Outlet Diameter: 127 mm (5.00 inch)
  • Body Diameter Maximum: 299.97 mm (11.81 inch)
  • Body Length: 392 mm (15.43 inch)
  • Rated Flow LR: 11 m³/min (388 cfm)
  • Rated Flow MR: 12.9 m³/min (456 cfm)
  • Rated Flow HR: 14.6 m³/min (516 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Style: Tubular
  • Family: STG
  • Brand: Donaclone™

Packaged Dimensions

  • Packaged Length: 0.894 m (35.75 inch)
  • Packaged Width: 0.531 m (21.25 inch)
  • Packaged Height: 0.575 m (23.00 inch)
  • Packaged Weight: 26.604 kg (58.60 lb)
  • Packaged Volume: 0.283 m3 (10.11 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-04
  • HTS Code: 8421310090
  • UPC Code: 742330002018

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH P850553
CASE/CASE IH A075060
CASE/CASE IH P0850553
CATERPILLAR 1X8139
CHAMPION ROAD 15914
DRILTECH 4710001
EIMCO 04710001
HAVAM HD9790
LEROI GD1415937
MI-JACK 37216704SUB
NEW HOLLAND P0850553
SANDVIK 04710001
TAMROCK 04710001
TEREX P0850553
TEREX 9018191
WALGAHN-MOTORENTECHN 810128
WALGAHN-MOTORENTECHN 00810128
