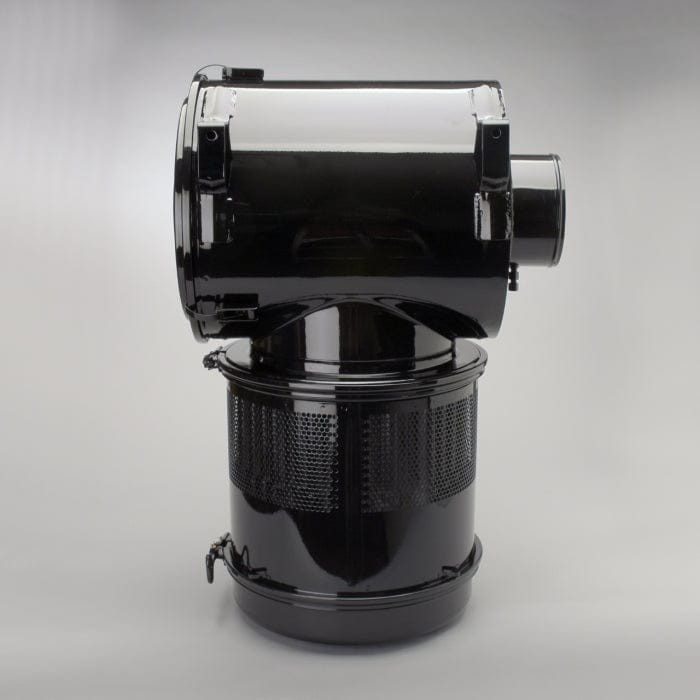

Air Cleaner, Stg Donaclone Peripheral - Donaldson G160077
Air Cleaner, Stg Donaclone Peripheral - Donaldson G160077
Regular price
£1,888.08
Regular price
Sale price
£1,888.08
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson G160077
Air Cleaner, Stg Donaclone Peripheral| Width | 17.99 inch (457 mm) |
| Inlet Diameter | 17.28 inch (439 mm) |
| Outlet Diameter | 7.01 inch (178 mm) |
| Body Diameter Maximum | 15.98 inch (406 mm) |
| Body Length | 19.68 inch (500 mm) |
| Rated Flow LR | 1014 cfm (28.7 m³/min) |
| Rated Flow MR | 1176 cfm (33.3 m³/min) |
| Rated Flow HR | 1321 cfm (37.4 m³/min) |
| Restriction LR | 5.98 inch H2O (152 mm H2O) |
| Restriction MR | 7.99 inch H2O (203 mm H2O) |
| Restriction HR | 10.00 inch H2O (254 mm H2O) |
| Style | Peripheral |
| Family | STG |
| Brand | Donaclone™ |
Share
Collapsible content
Specifications
Attributes
- Width: 457 mm (17.99 inch)
- Inlet Diameter: 439 mm (17.28 inch)
- Outlet Diameter: 178 mm (7.01 inch)
- Body Diameter Maximum: 406 mm (15.98 inch)
- Body Length: 500 mm (19.68 inch)
- Rated Flow LR: 28.7 m³/min (1014 cfm)
- Rated Flow MR: 33.3 m³/min (1176 cfm)
- Rated Flow HR: 37.4 m³/min (1321 cfm)
- Restriction LR: 152 mm H2O (5.98 inch H2O)
- Restriction MR: 203 mm H2O (7.99 inch H2O)
- Restriction HR: 254 mm H2O (10.00 inch H2O)
- Style: Peripheral
- Family: STG
- Brand: Donaclone™
Packaged Dimensions
- Packaged Length: 1.050 m (42.00 inch)
- Packaged Width: 0.525 m (21.00 inch)
- Packaged Height: 0.663 m (26.50 inch)
- Packaged Weight: 36.320 kg (80.00 lb)
- Packaged Volume: 0.379 m3 (13.53 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330002254
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ASTRA | 45021 | |
| ATLAS COPCO | 1619730000 | |
| CLARK | 1514580 | |
| DART | STG160077 | |
| DMT CORPORATION | 14468AIRCLNR | |
| DMT CORPORATION | 14469AIRCLNR | |
| DMT CORPORATION | 14412AIRCLNR | |
| DRESSER | PB5334 | |
| DRESSER | VE7437 | |
| EIMCO | 117063 | |
| EIMCO | 64117063 | |
| EUCLID | 2590367 | |
| EUCLID | 12590367 | |
| EUCLID | E4000055 | |
| FREIGHTLINER | DNG160077 | |
| GUASCOR | 7650118 | |
| KOMATSU | VE7437 | |
| LETOURNEAU | 4017640P | |
| LOESING | 020123 | |
| LOESING | 20123 | |
| PERLINI | GAS245002 | |
| PIVOT POWER INC | 44G160077 | |
| REICHDRILL | PS467014 | |
| SANDVIK | 4710000 | |
| SANDVIK | 04710000 | |
| SULLAIR | 250033042 | |
| TAMROCK | 04710000 | |
| TRACKMOBILE | 1067232 | |
| TYMCO | 1067232 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 911620 | |
| VME | 4000055 | |
| WALGAHN-MOTORENTECHN | 810146 | |
| WALGAHN-MOTORENTECHN | 00810146 | |
| WEICHAI | 1002859644 | |
| XCMG | 800151999 |
