• Donaldson Air Cleaner, Stg Donaclone Peripheral - Donaldson G140076
1 1

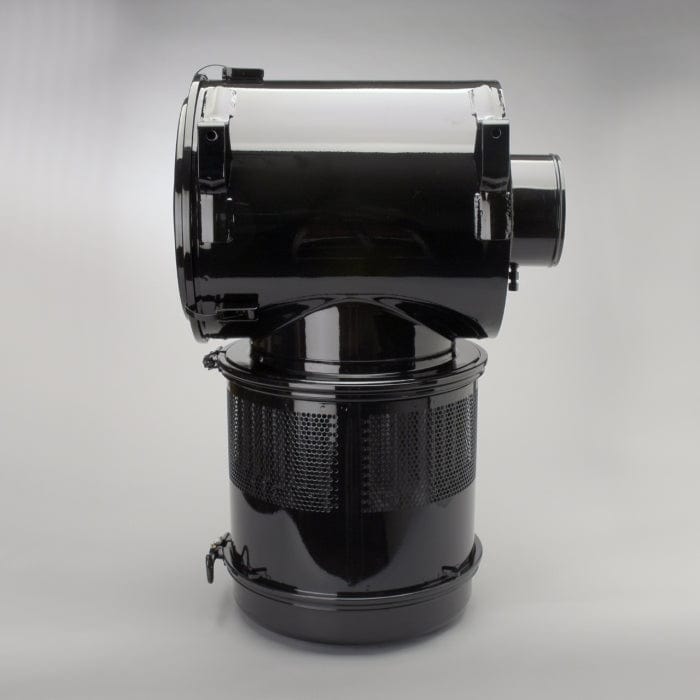

Air Cleaner, Stg Donaclone Peripheral - Donaldson G140076

Air Cleaner, Stg Donaclone Peripheral - Donaldson G140076

£1,659.40
£1,659.40
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson G140076

Air Cleaner, Stg Donaclone Peripheral
Width 15.98 inch (406 mm)
Inlet Diameter 15.47 inch (393 mm)
Outlet Diameter 5.98 inch (152 mm)
Body Diameter Maximum 14.02 inch (356 mm)
Body Length 17.36 inch (441 mm)
Rated Flow LR 710 cfm (20.1 m³/min)
Rated Flow MR 840 cfm (23.8 m³/min)
Rated Flow HR 950 cfm (26.9 m³/min)
Restriction LR 5.98 inch H2O (152 mm H2O)
Restriction MR 7.99 inch H2O (203 mm H2O)
Restriction HR 10.00 inch H2O (254 mm H2O)
Style Peripheral
Family STG
Brand Donaclone™
View full details

Specifications

Attributes

  • Width: 406 mm (15.98 inch)
  • Inlet Diameter: 393 mm (15.47 inch)
  • Outlet Diameter: 152 mm (5.98 inch)
  • Body Diameter Maximum: 356 mm (14.02 inch)
  • Body Length: 441 mm (17.36 inch)
  • Rated Flow LR: 20.1 m³/min (710 cfm)
  • Rated Flow MR: 23.8 m³/min (840 cfm)
  • Rated Flow HR: 26.9 m³/min (950 cfm)
  • Restriction LR: 152 mm H2O (5.98 inch H2O)
  • Restriction MR: 203 mm H2O (7.99 inch H2O)
  • Restriction HR: 254 mm H2O (10.00 inch H2O)
  • Style: Peripheral
  • Family: STG
  • Brand: Donaclone™

Packaged Dimensions

  • Packaged Length: 0.881 m (35.25 inch)
  • Packaged Width: 0.525 m (21.00 inch)
  • Packaged Height: 0.575 m (23.00 inch)
  • Packaged Weight: 28.148 kg (62.00 lb)
  • Packaged Volume: 0.276 m3 (9.85 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421310090
  • UPC Code: 742330002094

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARDCO ENE0214
CLARK 1514711
DMT CORPORATION 14416AIRCLNR
DRESSER PB5307
EIMCO 64135011
GENERAL ELECTRIC 3X7459
HITACHI 3801596
HYSTER 1385154
INGERSOLL RAND 57496564
KOMATSU PB5307
LEROI GD5826862
LOESING 020121
LOESING 20121
NACCO MATERIALS 1385154
OSHKOSH 3036642
PIVOT POWER INC 44G140076
SANDVIK 4710003
SANDVIK 64135011
SCHRAMM 03780040
SCHRAMM 03780126
SCHRAMM 3780040
TAMROCK 64135011
TAMROCK 04710003
TAMROCK 4100003
TAMROCK 04100003
TEREX 15254914
VME 4067813
VME 9240849
WESTERN STAR TRUCK 220013418
